Introduction In industrial chemical manufacturing, water treatment, and food processing, vertical mixing assemblies are subject to unique mechanical loads. Deep reactor tanks often require long mixer shafts that must be produced in split segments to simplify manufacturing, shipping, and installation. Joining these heavy vertical shafts requires a coupling that can transmit continuous torque while supporting significant weight. This engineering guide highlights why the DXCG JQ Type Split Shell Clamping Coupling remains an industry standard for vertical fluid mixing systems.

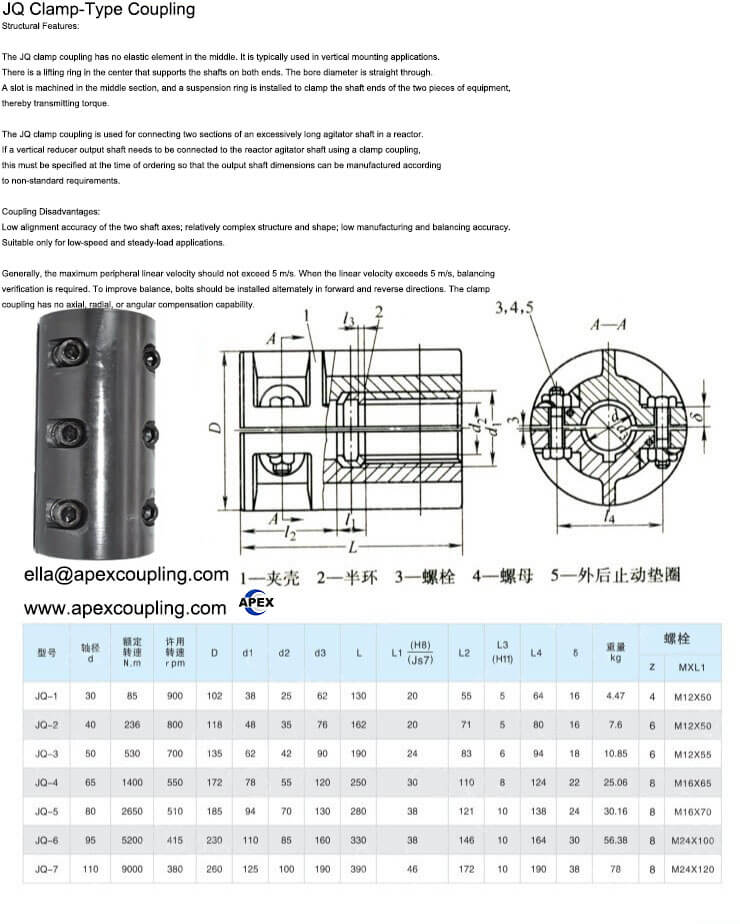

1. The Mechanics of the Split Shell Clamping Grip Traditional sleeve couplings require sliding a solid cylinder over the ends of two shafts, which can be difficult during maintenance in cramped or overhead spaces. The JQ split shell design avoids this issue by splitting longitudinally into two halves.

• Side-Access Assembly: Technicians can position the coupling halves over the shaft joint from the side, without needing to lift the heavy motor or drop the agitator shaft.

• Frictional and Mechanical Locking: When the high-tensile clamping bolts are torqued down, the shell wraps tightly around the shaft circumference. Combined with standard keyways, this setup ensures dependable, slip-free power transmission.

2. Supporting Vertical Weight via Integrated Suspension Rings

Unlike horizontal shafts that rest on pillow blocks, vertical drive shafts are suspended, meaning gravity is constantly trying to pull the lower section away from the upper drive hub. To manage this load, the JQ series includes an internal split hanging ring system. The shafts feature machined grooves near their ends that match up with the coupling’s internal ring slot. Once the shell halves are clamped together, this mechanical linkage locks the components axially, allowing the assembly to confidently handle the weight of long shafts and heavy mixing blades.

3. Material Integrity: Managing Torsional Load with 45# Steel

Agitator systems face varying fluid resistance, dense materials, and sudden torque spikes that put heavy stress on the shaft connection. To handle these demands, our JQ couplings are machined from premium 45# medium-carbon structural steel. This grade provides high yield strength and core toughness, ensuring the split shell maintains its shape and bolt retention under continuous load.

4. Speed Boundaries and Balance Control Guidelines

Because of their multi-bolt split design, JQ shell couplings are ideally suited for low-to-medium-speed setups with stable loading.

• The 5 m/s Linear Velocity Guideline: Under standard conditions, the maximum linear velocity of the coupling’s outer rim should stay under 5 m/s. If your application runs at higher speeds, the assembly requires specialized dynamic balancing to prevent high-speed vibration.

• Alternating Bolt Installation Technique: To improve balance and distribute weight evenly, bolts should be installed in alternating directions (one head up, the next head down) around the shell casing.

5. Factory Direct Sourcing for Non-Standard Mixer Requirements

Industrial reactors and vertical gearboxes rarely feature identical shaft setups. Connecting mismatched shaft ends, managing unique keyway dimensions, or meeting specific tight clearances often requires customized hardware. Modifying standard off-the-shelf components yourself can weaken the metal or introduce imbalance. Sourcing directly from an established manufacturer like Apexcoupling simplifies this process. Our specialized OEM and ODM production lines can build custom JQ couplings to your exact specifications, ensuring a drop-in fit that matches your project prints.
