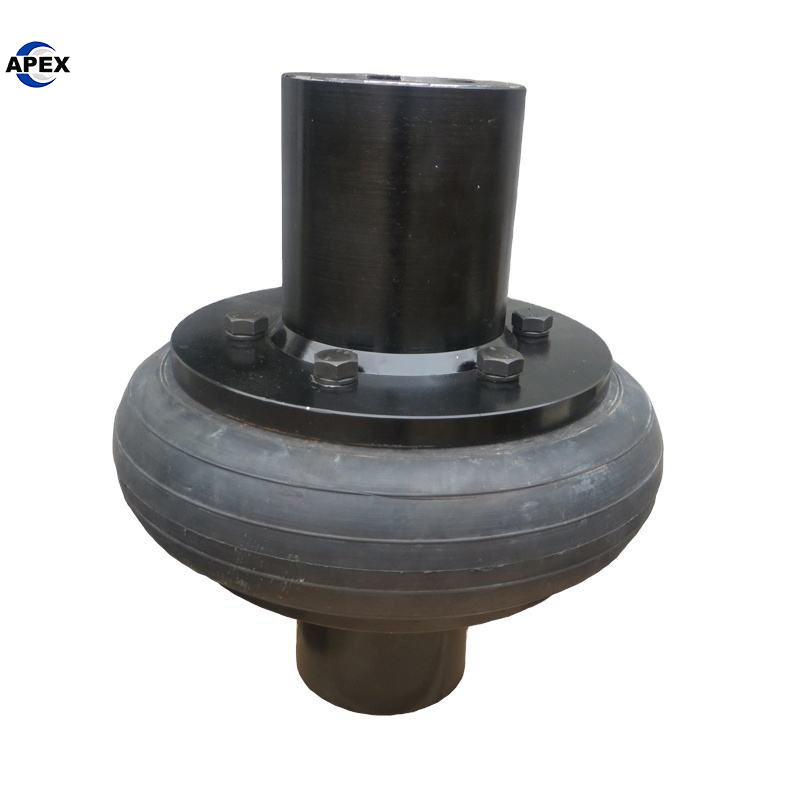

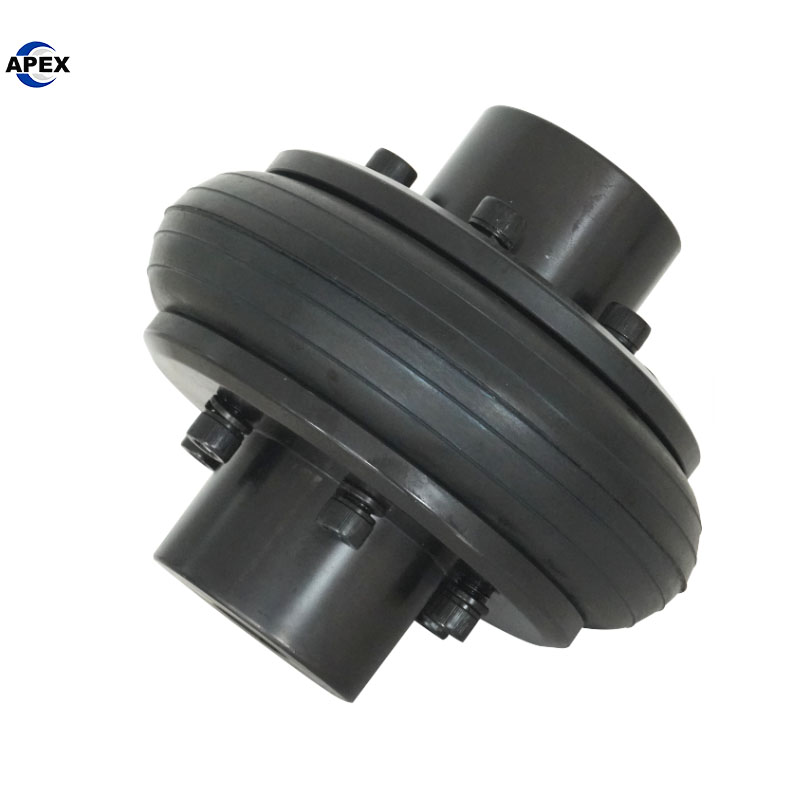

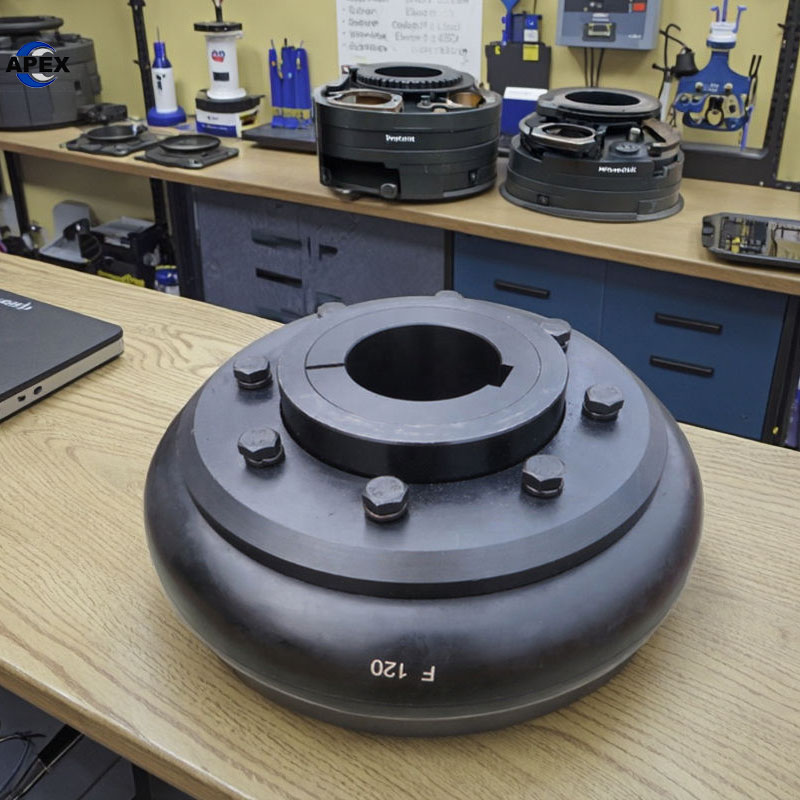

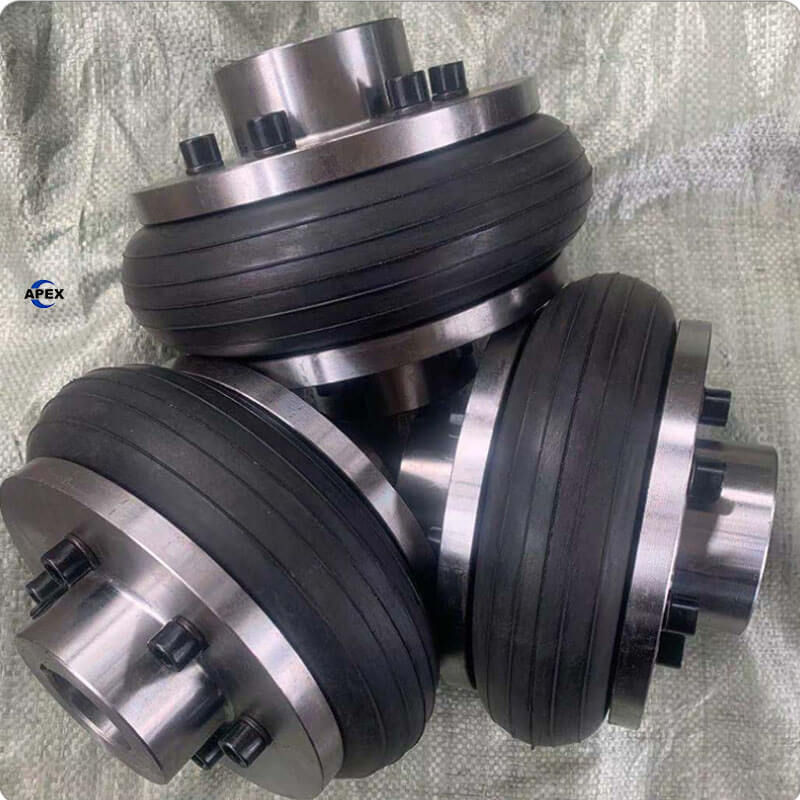

Key Areas for Customizing a Tyre Coupling

1. Bore & Keyway Specifications
This is the most fundamental customization to fit the shafts.

• Bore Diameter: Adjust the inner diameter to match your motor and driven equipment shaft sizes exactly.

• Bore Type: Choose between a standard parallel keyway or a keyless clamping hub (taper lock bushings) for easier installation and removal, especially on high-precision or high-speed applications.

• Tolerance: Specify precise bore tolerances (e.g., H7) for a perfect fit.

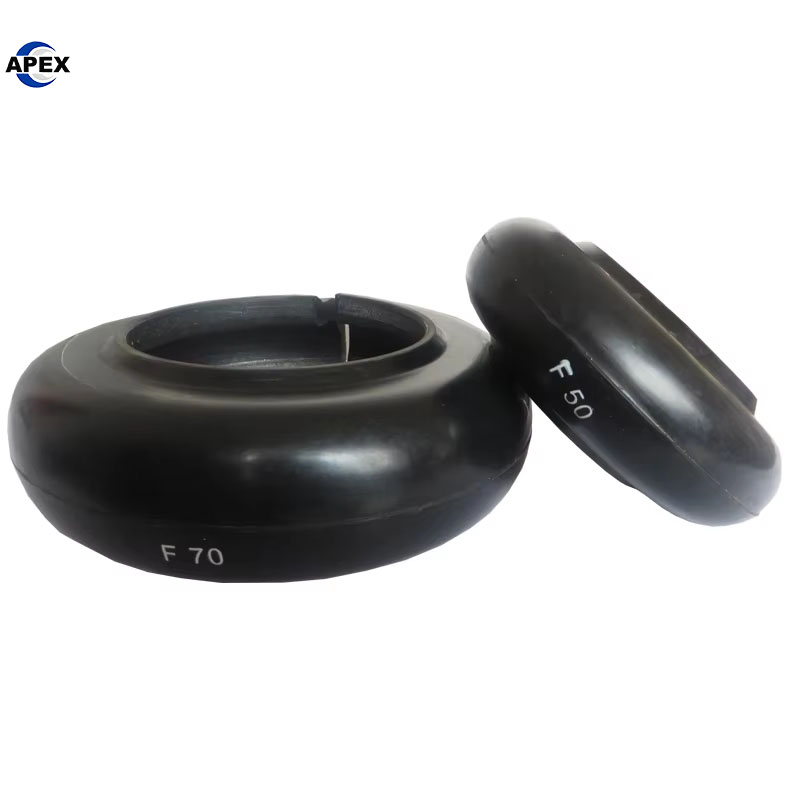

2. Tyre Element Material & Hardness
The “tyre” is the heart of the coupling. Its material dictates performance.

• Standard Neoprene/NBR: Good all-around oil, weather, and abrasion resistance.

• Polyurethane (PU): Offers higher tear strength, load capacity, and abrasion resistance than rubber.

• Natural Rubber: For high elasticity and damping in non-oily environments.

• Food-Grade/FDA Approved Rubber: For food, beverage, and pharmaceutical industries.

• Temperature-Resistant Materials (e.g., EPDM, Silicone): For environments below -40°C or above 100°C.

• Hardness (Shore A): Customize the hardness to fine-tune the coupling’s stiffness and damping characteristics.

3. Overall Dimensions & Performance

• Size & Torque Rating: While sizes are often standard, the design can be scaled up or down to meet specific torque and speed (RPM) requirements.

• Number of Bolts: The standard is 4 or 6 bolts. This can be modified based on the torque transmission needs and flange design.

• Static/Dynamic Balance: For high-speed applications (e.g., over 1000 RPM), the coupling can be precision-balanced to Grade G6.3 or higher to prevent dangerous vibrations.

4. Special Environmental & Application Needs

• Anti-Static Design: Incorporate a conductive element to prevent static electricity buildup.

• Flange Design: Customize the flange thickness, spoke design, or overall profile for specific space constraints or to meet a target weight.

• Non-Metallic Components: For applications requiring maximum corrosion resistance, flanges can be made from materials like aluminum or stainless steel instead of standard carbon steel.

Information Required for Customization

To provide an accurate quote and design, a manufacturer will typically need you to provide:

In summary, to customize a Tyre Coupling, provide your shaft dimensions, performance requirements, and operating environment to your manufacturer. A reliable partner will then engineer a solution with the correct bore, tyre material, and structural design to ensure optimal, long-lasting performance in your specific application.
