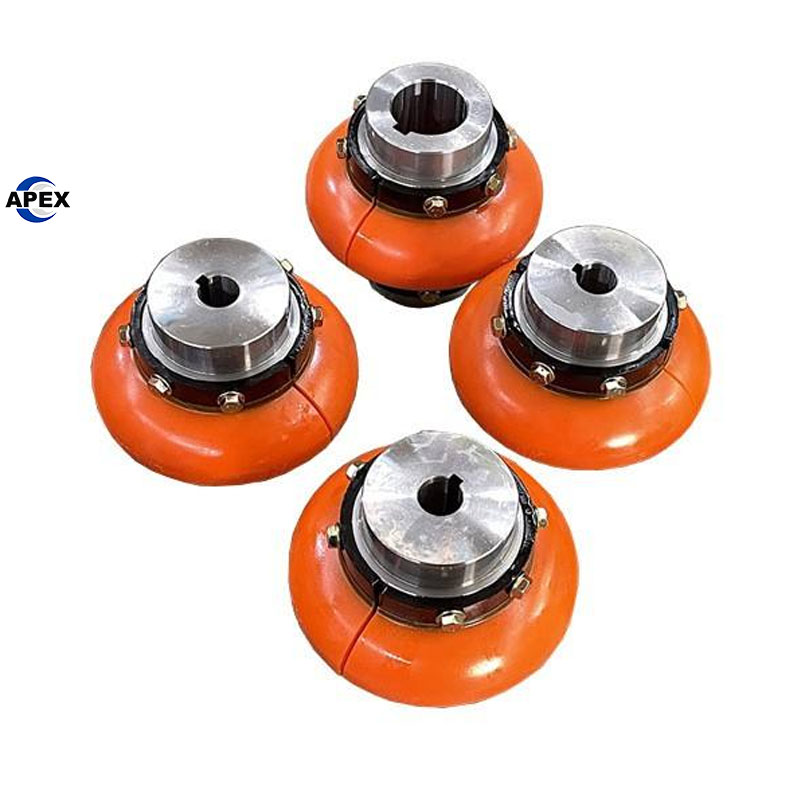

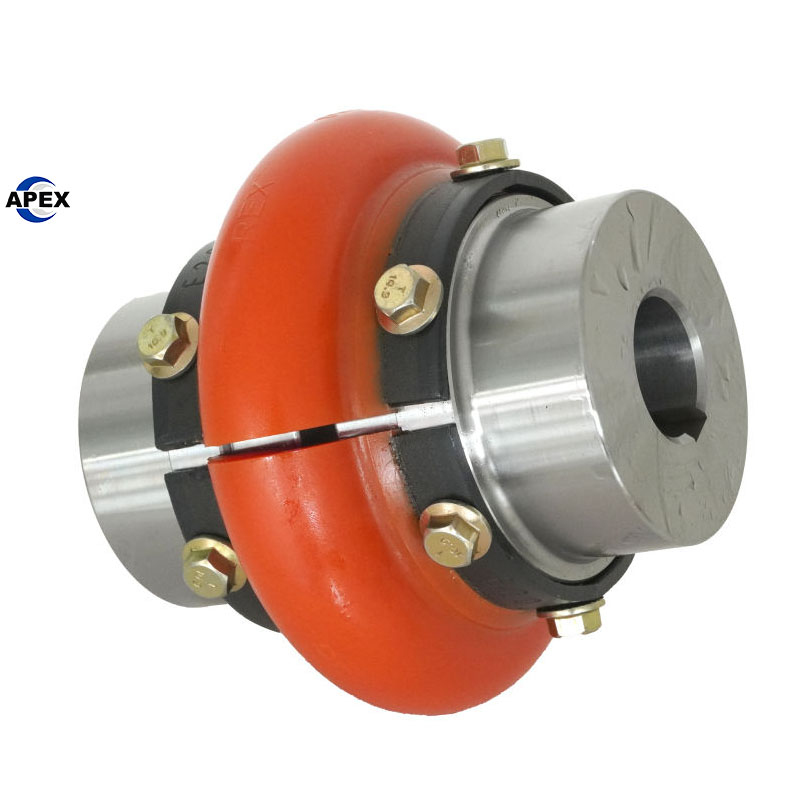

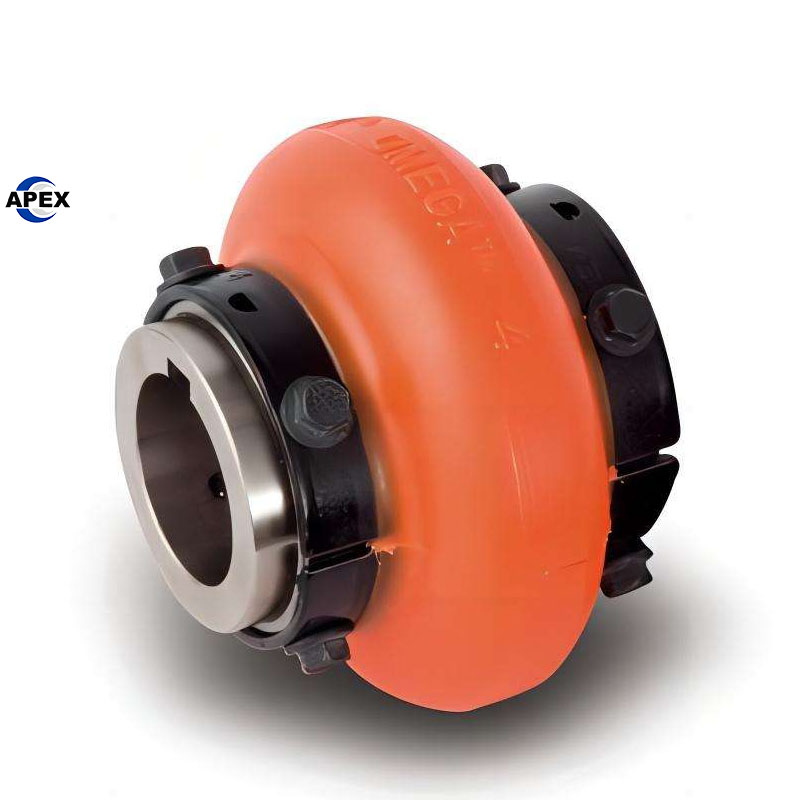

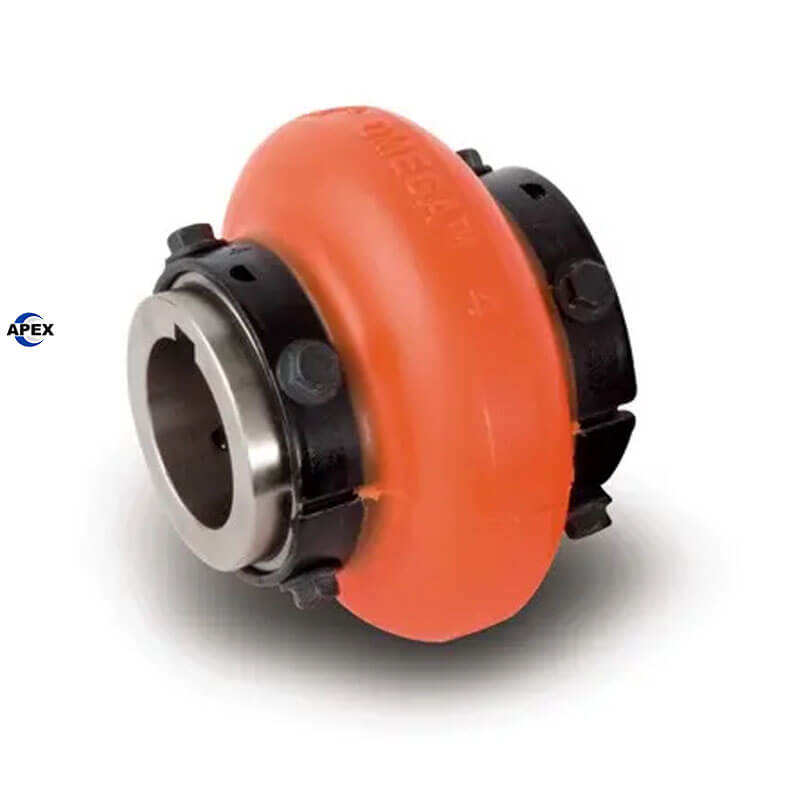

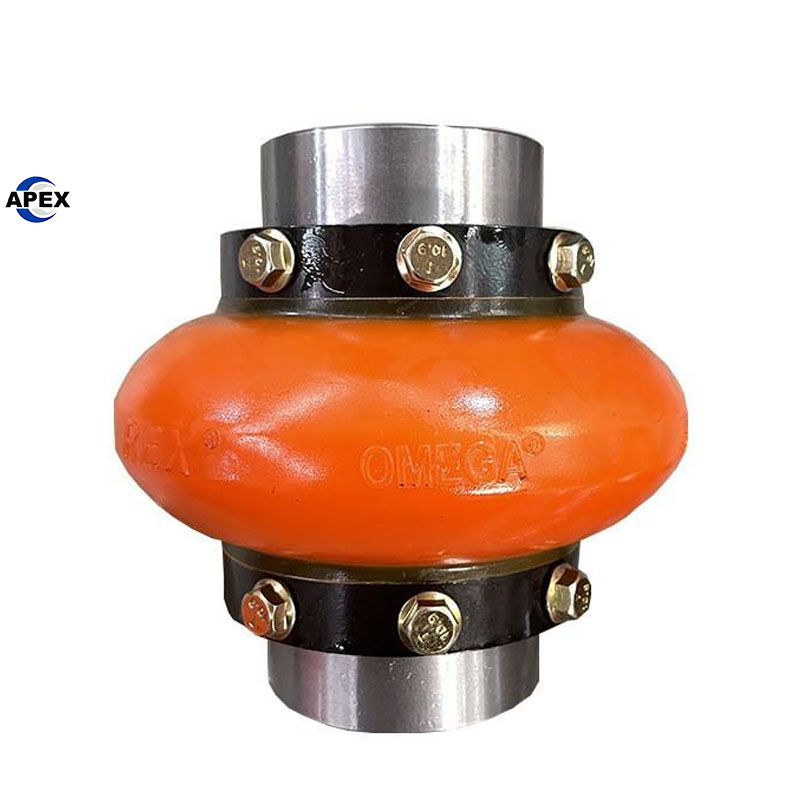

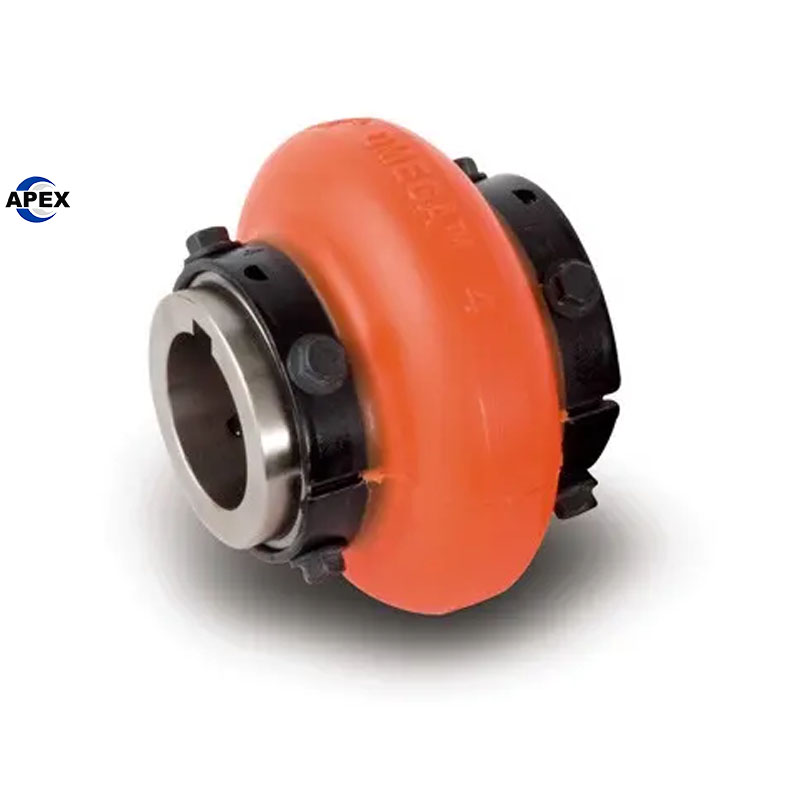

Choosing the right Omega coupling depends on several factors specific to your application. Omega couplings are known for their flexibility, durability, and ability to handle misalignments. They’re often used in various industries, such as automotive, industrial machinery, and robotics. Here’s a guide on how to select the best Omega coupling for your needs:

1. Understand the Application and Requirements

• Torque Requirements: Determine the torque that will be transmitted through the coupling. Omega couplings come in various sizes and torque ratings, so it’s important to choose one that can handle the load without failure.

• Speed and Rotation Direction: Consider the rotational speed and whether the coupling needs to handle continuous or intermittent rotation. The coupling should be rated for the required speed and direction of rotation.

2. Consider the Misalignment

• Angular Misalignment: Omega couplings are flexible and can compensate for angular misalignment. Check the amount of angular misalignment between the shafts to ensure the Omega coupling can accommodate it.

• Parallel Misalignment: Ensure that the coupling can also tolerate any parallel misalignment between the shafts.

• Axial Misalignment: Some Omega couplings are designed to handle axial misalignment. If this is important for your application, make sure the coupling you choose has the proper axial displacement capacity.

3. Material Selection

• Corrosion Resistance: If your application involves exposure to moisture, chemicals, or harsh environments, choose an Omega coupling made of corrosion-resistant materials like stainless steel.

• High-Temperature Applications: For high-temperature environments, make sure the coupling material can withstand elevated temperatures without degrading.

• Wear Resistance: If the coupling is going to be used in a high-wear application, ensure that the material is tough enough to handle repeated stress without losing its performance.

4. Shaft Size and Connection Type

• Shaft Diameter: The coupling must fit the shaft diameters of both the driving and driven components. Ensure that the Omega coupling is available in the correct size to match your shafts.

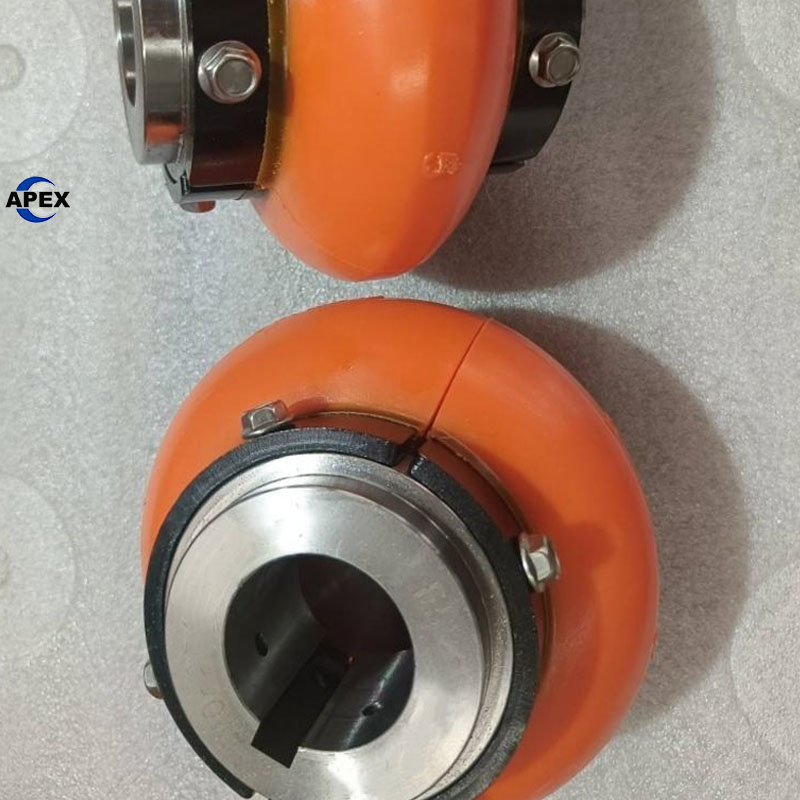

• Bore Type: Check if you need a coupling with a keyway or set screw to securely attach the coupling to the shafts. Some Omega couplings offer both.

• End Connections: Depending on your system, you may need a coupling with specific end connections, like flanged, clamp, or threaded ends.

5. Shock and Vibration Absorption

• Load Shock: If the application involves frequent start-stop conditions or high shock loads, select an Omega coupling designed to absorb these shocks. The flexibility of Omega couplings can help mitigate the effects of sudden torque changes.

• Vibration Damping: If the system produces vibrations, consider Omega couplings with vibration-damping features. This will help reduce wear on both the coupling and the connected machinery.

6. Operating Environment

• Noise Levels: Omega couplings can help reduce noise in some applications due to their flexibility. Choose one that suits the noise level constraints of your environment.

• Cleanliness: If the coupling will be used in cleanrooms or food-grade environments, make sure it meets industry standards like FDA or GMP compliance.

7. Cost and Maintenance

• Cost: Omega couplings come in a range of prices depending on the material, size, and special features. Choose one that fits within your budget while still meeting all technical requirements.

• Maintenance: Consider how easy the Omega coupling is to maintain. Some models may require more frequent inspection, while others may be maintenance-free for extended periods.

8. Manufacturer Recommendations

• Always check with the manufacturer or supplier for specific recommendations on selecting the right Omega coupling. They can provide you with datasheets, technical support, and expert advice tailored to your needs.

9. Testing and Prototyping

• If possible, conduct testing on the coupling in real-world conditions. This helps ensure that the Omega coupling performs as expected under load, speed, and misalignment conditions before full-scale implementation.

Summary of Key Factors:

• Torque capacity

• Misalignment tolerance (angular, parallel, axial)

• Material and environment considerations (corrosion, temperature, wear)

• Shaft size and connection type

• Shock and vibration absorption

• Cost and maintenance needs

By considering these factors, you can select the Omega coupling that will best meet the needs of your application.
