How to choose a flexible coupling?
Of course. Choosing the right flexible coupling is critical for the reliability of your machinery. Here is a clear, step-by-step guide.
A 5-Step Guide to Selecting a Flexible Coupling
Step 1: Identify the Type of Misalignment
First, understand what kind of shaft imperfection you need to compensate for. This determines the coupling type.
Angular Misalignment:Â Shafts are at an angle.
Parallel Misalignment:Â Shafts are side-by-side but not collinear.
Axial Misalignment:Â Shafts move closer or further apart.
Torsional Vibration:Â Shock loads or vibrations from the drive/driven side.
Step 2: Determine Key Application Parameters
Gather these essential technical details from your system:
| Parameter | Why It’s Important | Key Question |
|---|---|---|
| Torque (Peak & Normal) | Determines the coupling’s strength and size. | What is the maximum and operating torque? |
| Shaft Sizes & Keyways | Defines the bore diameter and connection type. | What are the diameters of the two shafts? |
| Operating Speed (RPM) | High speeds require balanced couplings. | What is the maximum rotational speed? |
| Misalignment Capacity | Must exceed the expected misalignment. | How much angular/parallel misalignment is expected? |
Step 3: Consider the Operating Environment
The surrounding conditions dictate material and design choices.
Temperature:Â Standard elastomers (like NBR) have a limited range. High or low temps may require special materials.
Chemicals & Oils:Â Exposure to lubricants or solvents can degrade certain plastics and elastomers.
Space Constraints:Â Compact designs (like bellows or disc couplings) are needed in tight spaces.
Step 4: Select the Coupling Type
Match your findings from Steps 1-3 to a common coupling type:
| Coupling Type | Best For | Key Advantage | Consideration |
|---|---|---|---|

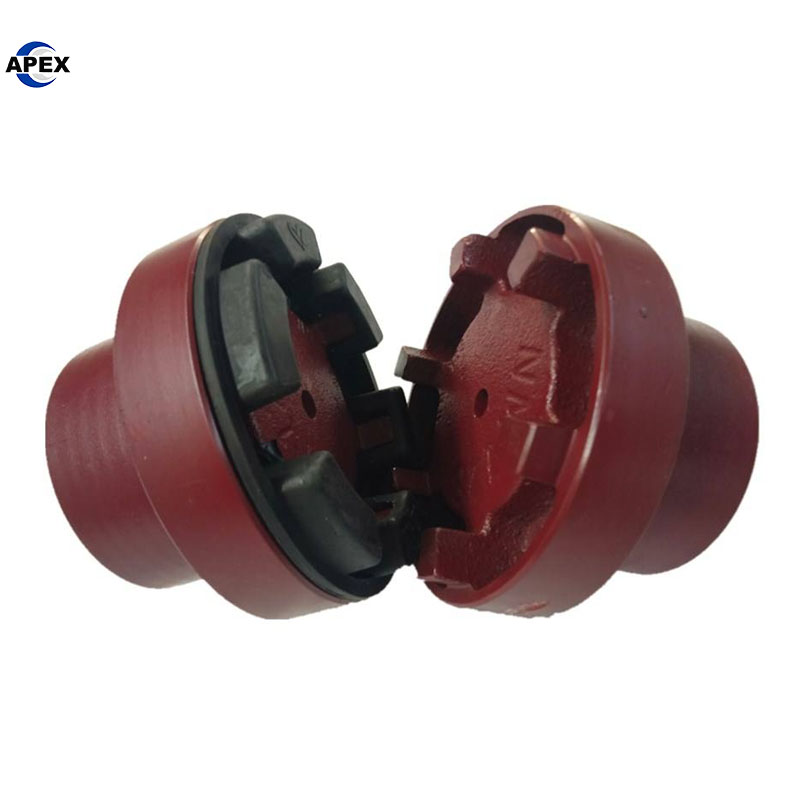

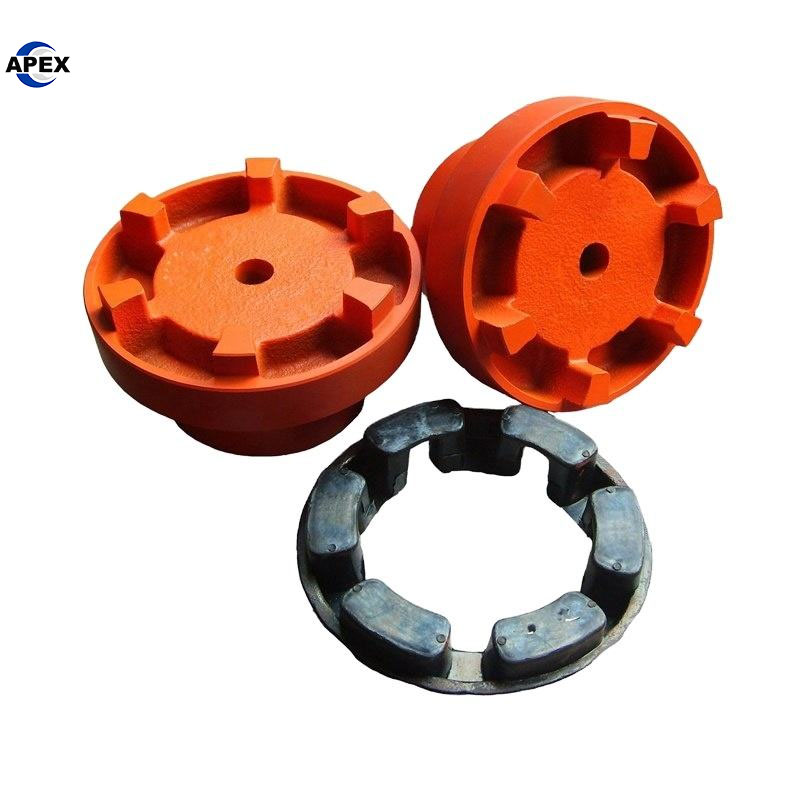

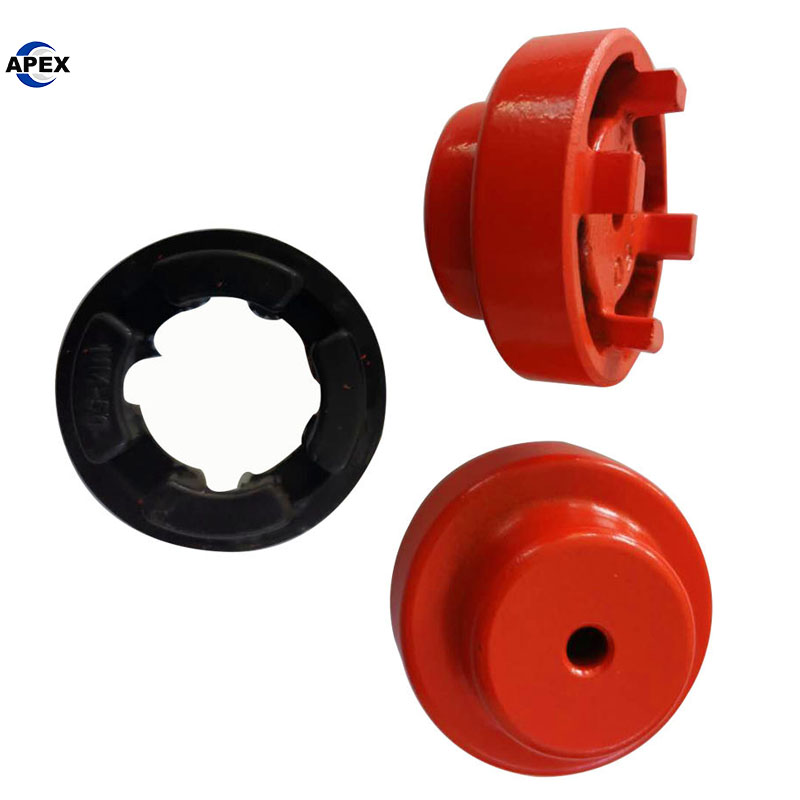

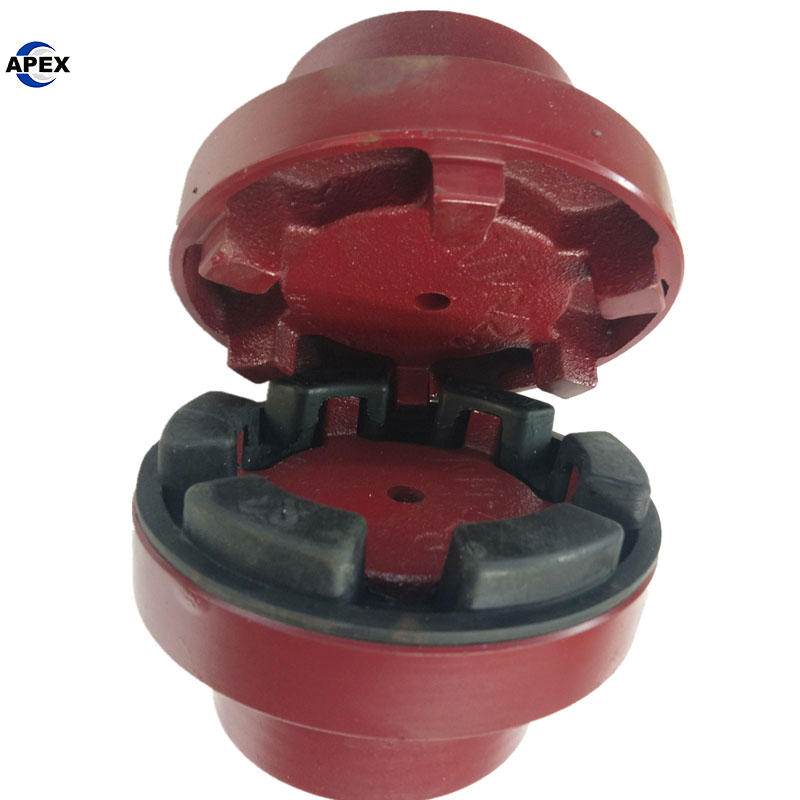

| Jaw/Spider | General purpose, shock absorption | Excellent vibration damping, cost-effective | Elastomer spider wears over time |
| Beam | Low to medium torque, high precision | Zero backlash, simple design | Limited misalignment capacity |
| Bellows | High-speed servos, precision motion | Zero backlash, high torsional stiffness | Excellent for precise positioning |
| Disc | High-speed, high-torque applications | High performance without lubrication | More sensitive to misalignment |
| Grid | Heavy-duty, high-shock loads | Very robust, good for mining/crushers | Requires lubrication |
Step 5: Finalize with a Trusted Supplier
Once you have a technical shortlist, choose a supplier who offers:
Engineering Support:Â They can verify your selection.
Customization (OEM/ODM):Â Ability to provide non-standard bores, lengths, or materials.
Proven Quality & Warranty:Â Look for ISO 9001 certification and a clear warranty.
Summary: The right flexible coupling balances your torque, speed, misalignment, and environmental needs. When in doubt, consult with a technical expert or your coupling supplier for a guaranteed solution.
Customization options, customized on demand, sample processing, graphic processing.
Product Support traceability of raw materials
Quality control conducted on all production lines.
R&D engineer education levels3 graduate
Choose Confidence. Choose Safety.
Contact us today to discuss how our certified quality and safety standards can protect your operations. Request a quote and receive full technical data sheets for your evaluation.
Our Commitment to You:
We guarantee that every coupling leaving our facility is built to perform safely and reliably. Our quality is not just a promise—it’s a result of a systematic, verifiable process built into everything we do.

related products
Heavy-Duty Telescopic Coupling with Cardan Shaft | High-Torque SWP-A Transmission Shaft
High-Performance Rotex Flexible Jaw Coupling | Durable Steel Jaw Spider Coupling for Industrial Motors

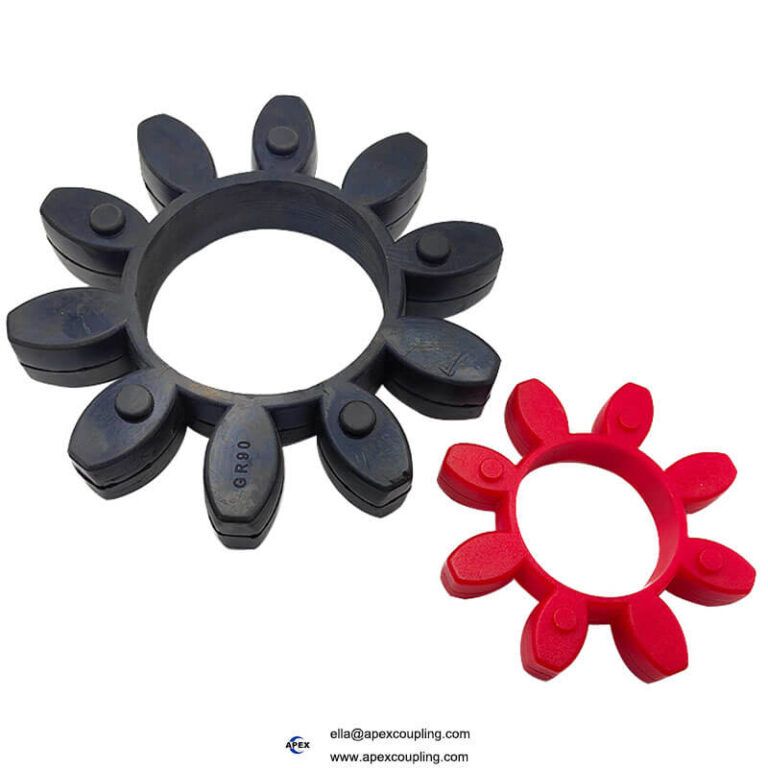

Durable Rubber Coupling Spider | High-Performance PU Coupling Spider for Industrial Use
High-Performance Lovejoy Coupling Spider | Durable Jaw Coupling Spider Replacement
High-Performance Spider Coupling – Durable Elastic Spider Coupler for Industrial Machinery

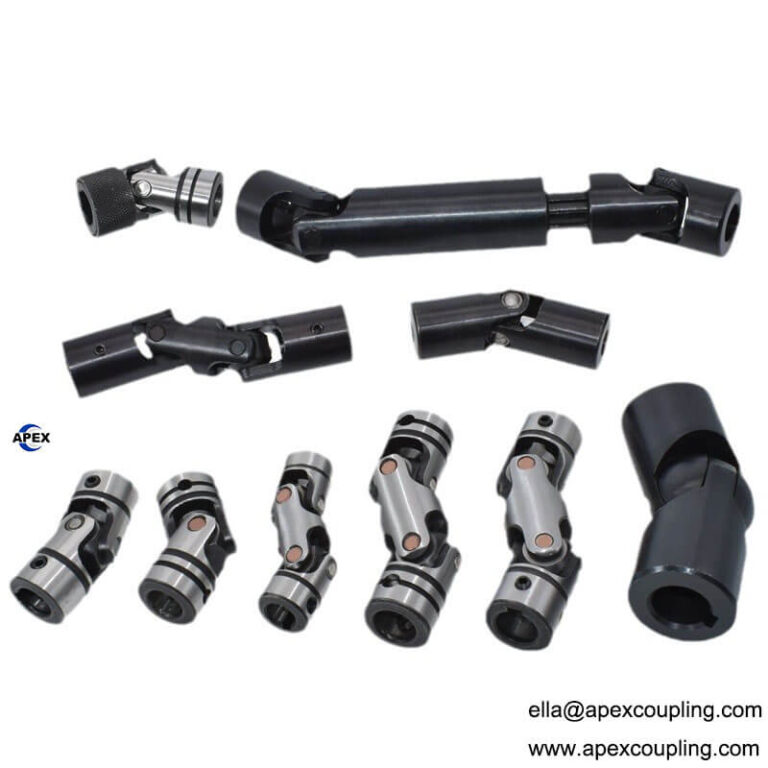

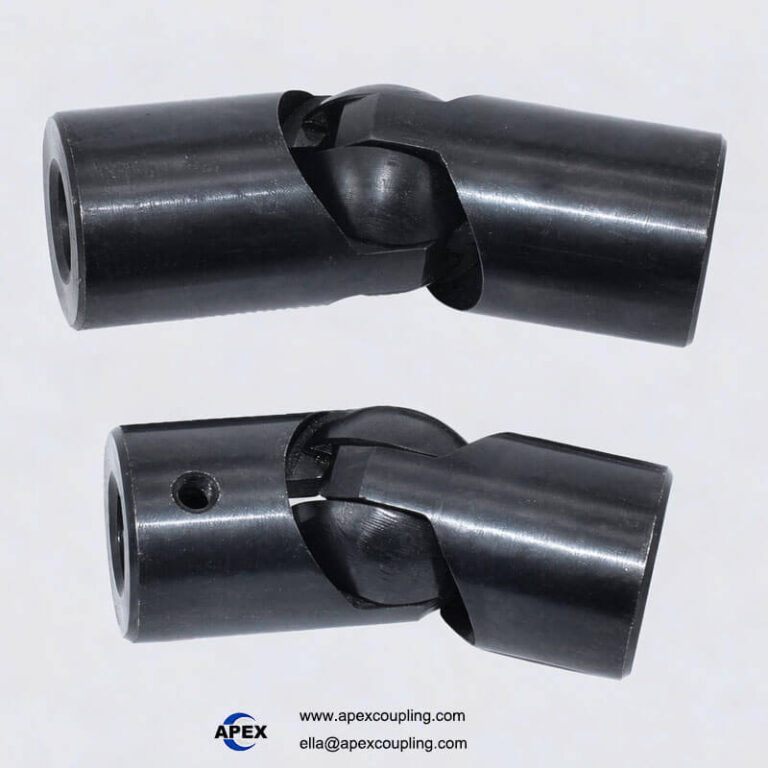

High-Quality Flexible Shaft Couplers – Universal Joint for Drive Shaft Double Cardan
