WGP Drum Gear Coupling with Brake Disc - High-Speed Rigid Shaft Coupler
Model Number
GICL1
GICL2
GICL3
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Integrated Brake Disc System: Enables precise speed control for machinery
High Load Capacity: 15-20% stronger than standard straight gear couplings
Superior Angular Displacement: Compensates up to 1°30′ for misalignment
High-Speed Operation: Rated for maximum 3000 RPM
Drum Tooth Design: Reduces noise and extends maintenance cycles
Easy Assembly: Horn-shaped tooth ends facilitate quick installation
High Efficiency: 99.7% transmission efficiency
Rigid Construction: 45# steel body for maximum durability
Custom Bore Sizes: Standard 100mm with custom dimensions available
Description
As leading manufacturers of industrial coupling solutions, we present the WGP Drum Gear Coupling – an advanced rigid shaft coupler engineered for demanding applications. This gear coupler combines a durable drum-shaped gear design with an integrated brake disc system, available in Type I and Type II configurations. The innovative drum tooth geometry significantly improves contact conditions between inner and outer teeth, eliminating edge stress concentration common in straight tooth designs. With a rated torque of 1000 N-m and superior angular displacement capabilities, this rigid shaft coupler delivers reliable performance in high-speed turbine, pump, and heavy machinery applications while supporting OEM customization requirements.
Specifications
| Specification | Details |
|---|---|
| Material | Steel (45#) |
| Structure | Gear |
| Type | Rigid Shaft Coupler |
| Bore Diameter | 100 mm (Customizable) |
| Maximum Speed | 3000 RPM |
| Rated Torque | 1000 N-m |
| Angular Displacement | Up to 1°30′ |
| Transmission Efficiency | 99.7% |
| Standard/Nonstandard | Standard |
| Warranty | 1 year |
| Customized Support | OEM |
| Body Material | 45# Steel |
| MOQ | 1 Set |
| Application | Industrial Equipment |
| Key Features | High Torque, High Rigidity, Long Life |
| Packaging | Wooden Box |
Advantages
| Advantage | Description |
|---|---|
| Enhanced Load Capacity | 15-20% higher load bearing compared to straight gear couplings |
| Superior Misalignment Compensation | Large angular displacement handles shaft misalignment effectively |
| Reduced Maintenance | Optimized tooth contact minimizes wear and extends service intervals |
| Noise Reduction | Drum tooth design operates quieter than conventional couplings |
| Easy Installation | Horn-shaped tooth ends allow quick assembly and disassembly |
| Speed Control | Integrated brake disc enables precise machinery speed adjustment |
| High Efficiency | 99.7% transmission efficiency reduces energy loss |
drum gear coupling with brake disc
high speed rigid shaft coupler
WGP type gear coupling manufacturers
industrial gear coupler with brake system
rigid shaft coupling for turbines
custom bore gear coupler
high torque rigid shaft coupling

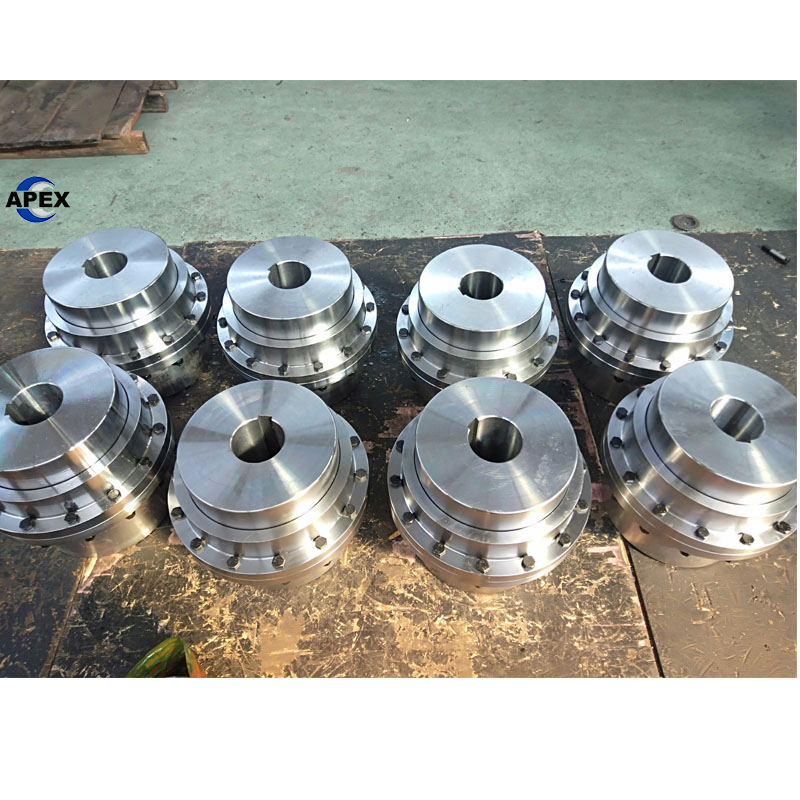

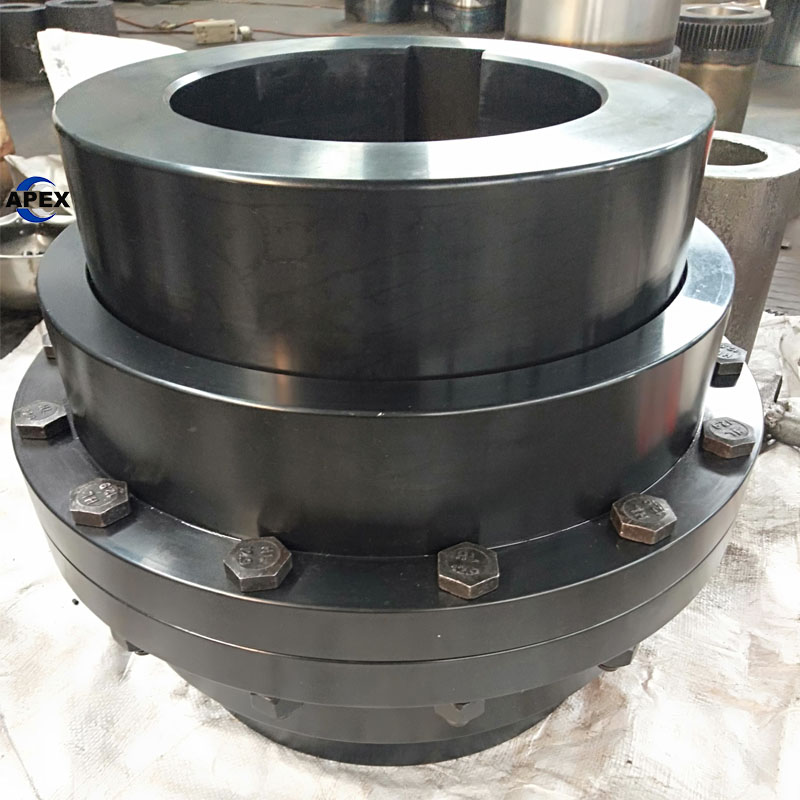

Product Show
Unlock Peak Performance with High-Speed Turbine Drum Gear Couplings! ⚙️🚀
Product Features:
✅ Type: Drum Gear Shaft Coupling
✅ Material: High-Grade 45# Steel
✅ Bore Diameter: 100mm (Custom Sizes Available)
✅ Rated Torque: 1000 N.m
✅ Maximum Speed: 3000 RPM
✅ Rigid Structure: Ensures Precise Power Transmission
✅ Customization: OEM Support & Custom Colors
✅ Packing: Secure Wooden Box
✅ MOQ: 1 SetWhy Choose Our Drum Gear Coupling?
• High-Speed Capability – Perfect for turbine and pump applications
• Exceptional Durability – Built for long-term heavy-duty use
• Precision Engineering – Maintains accuracy under high torque
• Rigid & Reliable – Zero backlash for critical applications
• Custom OEM Solutions – Tailored to your specific requirements
• Factory Direct Pricing – Competitive rates without compromiseIdeal for:
🏭 Turbine Systems
💧 Pump Applications
🏗️ High-Speed Machinery
⚙️ Precision Industrial EquipmentSpecial Advantages:
🏭 Direct Factory Supply
🔧 Full OEM Customization
📦 Fast Delivery Worldwide
⚡ 1-Year Quality WarrantyUpgrade your machinery with our high-quality rigid couplings today! 🚀
