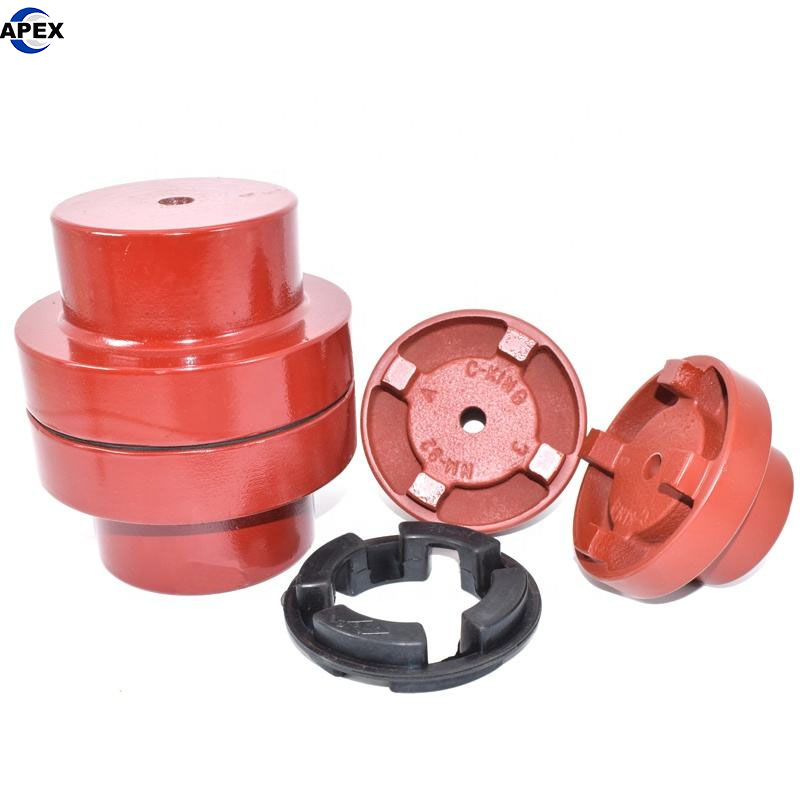

“Customizable OEM Cast Iron Spider NM Couplings Quick Release Rubber Flexible Normex NM128 Water Pump Shaft Coupling” is very specific, pointing to a specialized component designed for a particular industry.

In short, this is a heavy-duty, standardized flexible coupling specifically engineered for pump systems, with a focus on durability and easy maintenance.

Detailed Breakdown of the Name and Its Purpose:

Let’s decode the name to understand its exact function.

1. Normex NM128 & NM Couplings:

   • This is the core identifier. “Normex” is a recognized industry standard for pump couplings, similar to how “Rotex” is a standard for general industrial jaw couplings. The “NM128” is a specific size within that standard.

   • What it’s used for: This standardization guarantees interchangeability. If a pump manufacturer designs their product around the NM128 standard, any coupling built to that standard (like this one) will fit. This is crucial for maintenance and replacement parts.

2. Water Pump Shaft Coupling:

   • This leaves no doubt about its primary application. It is designed to connect an electric motor to a water pump.

   • What it’s used for: Transmitting power from the motor to the pump impeller, allowing it to move fluid.

3. Cast Iron:

   • What it means: The main body of the coupling is made from cast iron.

   • What it’s used for: Cast iron is chosen for its exceptional strength, durability, and damping properties. It can handle high torque and is highly resistant to deformation. It’s also more corrosion-resistant than standard steel, which is important in wet environments common with pumps.

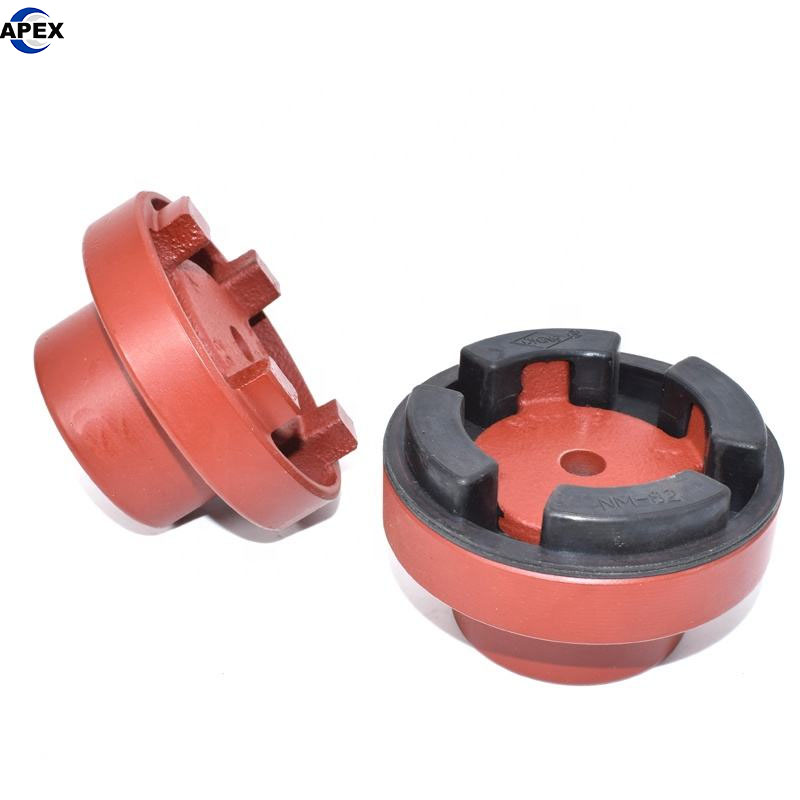

4. Rubber Flexible Spider:

   • What it means: The flexible element between the two coupling halves is a rubber “spider.”

   • What it’s used for: This rubber insert is the heart of the coupling’s protective function. It:

     • Absorbs Vibration and Shock: Dampens vibrations from the motor and protects both the motor and pump bearings from damaging shock loads (e.g., water hammer).

     • Compensates for Misalignment: Allows for minor angular and parallel misalignment between the motor and pump shafts, which is common during installation or due to thermal expansion.

5. Quick Release:

   • What it means: This is a critical feature for maintenance. It indicates the coupling can be disassembled and removed without needing to move the motor or the pump.

   • What it’s used for: Drastically reduces downtime during maintenance. If a pump seal needs replacement or the coupling spider is worn, a technician can quickly unbolt and slide the coupling apart instead of going through the time-consuming process of realigning the entire motor and pump assembly.

6. Customizable OEM:

   • What it means: While it’s a standard NM128, the manufacturer can customize certain aspects.

   • What it’s used for: This is for Pump OEMs (Original Equipment Manufacturers). They can order these couplings with their specific bore sizes, keyways, or even custom markings to match their pump and motor designs perfectly.

Summary of Typical Applications:

This coupling is a specialized component for industries that rely heavily on pumping systems. You will find it in:

• Water and Wastewater Treatment Plants: For pumps moving clean water, sewage, and sludge.

• Irrigation and Agricultural Systems: In large-scale irrigation pumps.

• Industrial Cooling Systems: Connecting motors to cooling water circulation pumps.

• Chemical Processing Plants: For pumps handling various fluids (compatibility of the rubber spider with the fluid must be verified).

• Marine and Shipbuilding: For ballast, bilge, and cooling pumps onboard vessels.

• Power Generation: In auxiliary systems requiring large water pumps.

Why This Coupling is Chosen Over Others:

• vs. Standard Jaw Couplings: The NM standard is specifically engineered for the higher torque and more demanding duty cycles of pumps. The cast iron construction is more robust than aluminum.

• vs. Rigid Couplings: It provides essential vibration damping and misalignment compensation, which is non-negotiable for protecting expensive pumps and motors.

• The “Quick Release” feature is its killer advantage in any application where minimizing maintenance downtime is a priority, as it is in most industrial and municipal settings.

In a nutshell: This NM128 Coupling is not a general-purpose component. It is a heavy-duty, standardized, and maintenance-friendly coupling specifically designed to provide a reliable, long-lasting, and easily serviceable connection between a motor and a water pump in demanding industrial and municipal environments.
