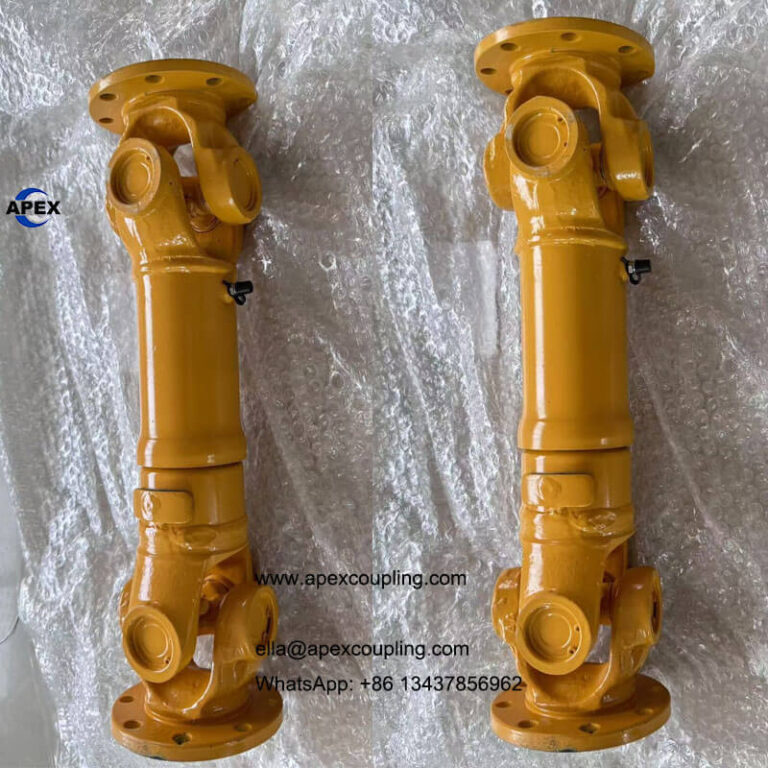

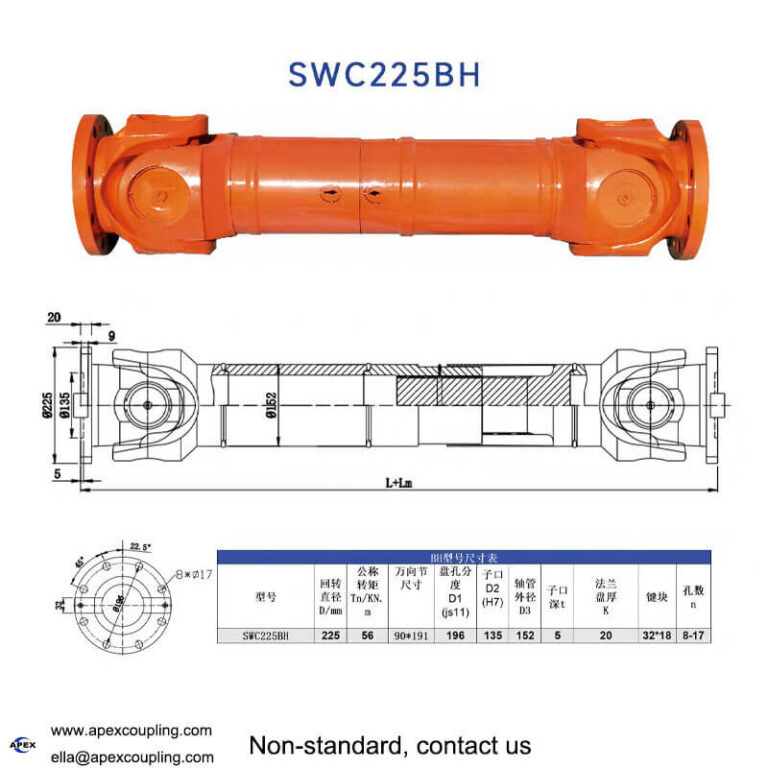

SWC-BH Type Universal Joint Shaft Coupling - High Speed Double Cardan Shaft for Heavy Machinery
Model Number
SWC-BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Boltless Design: Eliminates weak points from bolt shearing, enhancing durability
Double Cardan Shaft Configuration: Superior angular flexibility and smooth operation
High Torque Capacity: 1.25 to 1000 kN·m for demanding applications
Wide Size Range: Rotation diameter from 100 to 620mm
Advanced Heat Treatment: High-frequency quenching for enhanced strength
Multiple Surface Treatments: Carburizing, blackening, electroplating options
High Angular Capacity: Accommodates 15-25° axis angles
Maintenance-Friendly: Simple design allows for easy service and repair
Heavy-Duty Construction: 68kg robust design for industrial applications
Customizable: Full OEM, ODM, OBM support available
Description
Discover unparalleled performance with our SWC-BH Type Universal Joint Shaft Coupling, engineered specifically for the most demanding industrial environments. This advanced universal joint shaft coupling features a revolutionary boltless design that secures bearings without traditional bolts, eliminating the common failure point of bolt shearing and significantly extending service life. As a sophisticated double cardan shaft solution, it connects two transmission shafts with different axes while maintaining efficient power transfer across substantial angular displacements. The universal joint shaft coupling undergoes rigorous heat treatment processes including high-frequency quenching and offers multiple surface treatment options to ensure optimal performance in harsh operating conditions. Whether for heavy machinery, lifting equipment, or transportation systems, our double cardan shaft delivers reliable, maintenance-friendly performance that industrial users demand.
Specifications
| Parameter | Value |
|---|---|
| Applicable Industries | Manufacturing Plants, Heavy Machinery, Lifting Equipment |
| Material | Steel |
| Structure | Universal Joint |
| Standard/Nonstandard | Standard |
| Flexible or Rigid | Flexible |
| Rotation Diameter | 100-620mm |
| Nominal Torque | 1.25-1000 kN·m |
| Axis Angle | 15-25° |
| Surface Treatment | Carburizing, blackening, electroplating, quenching |
| Heat Treatment | High-frequency quenching |
| Package Weight | 68.000 kg |
| Package Size | 60×60×60 cm |
| MOQ | 1 Set |
| Customized Support | OEM, ODM, OBM |
Advantages
| Advantage | Description |
|---|---|
| Enhanced Durability | Boltless design eliminates shear failure points, extending service life. |
| High Torque Transmission | Handles up to 1000 kN·m for heavy-duty applications. |
| Angular Flexibility | Accommodates 15-25° axis angles for complex installations. |
| Reduced Maintenance | Simple design allows for easy inspection and service. |
| Corrosion Protection | Multiple surface treatment options protect against environmental factors. |
| Customizable Design | Comprehensive OEM/ODM/OBM support for tailored solutions. |
| Smooth Operation | Double cardan shaft design ensures consistent power transmission. |
swc-bh universal joint shaft coupling
double cardan shaft for heavy machinery
high torque universal joint coupling
industrial double cardan shaft
boltless universal joint coupling
heavy duty cardan drive shaft
universal joint shaft for lifting equipment
large diameter cardan shaft coupling
Product Show
