Set Screw Coupler - Aluminum Rigid Shaft Coupling with High Torque Capacity
Model Number
JQ25-200
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Set Screw Mounting: Secure and adjustable shaft connection
Aluminum Construction: Lightweight yet durable material
High Torque Capacity: 125-16000 N-m rating for demanding applications
Wide Bore Range: 25-170mm shaft diameter compatibility
Advanced Heat Treatment: High-frequency quenching for enhanced durability
Multiple Surface Treatments: Carburizing, blackening, electroplating options
Rigid Design: Zero-backlash power transmission
Simple Installation: Easy mounting and adjustment
High-Speed Capability: 1000-3800 RPM operational range
Standard Dimensions: 200-710mm outer diameter options
- Â
Description
Experience superior power transmission with our Set Screw Coupler, engineered for precision and reliability in industrial applications. This high-performance rigid coupling combines aluminum’s lightweight properties with robust construction, creating an ideal screw coupler solution for various machinery and motor applications. The innovative set screw design ensures secure shaft mounting while allowing for easy adjustment and maintenance. Through advanced manufacturing processes including high-frequency quenching heat treatment and multiple surface treatment options, this rigid coupling delivers exceptional durability and corrosion resistance. Whether for electric motors, industrial equipment, or precision machinery, this screw coupler provides reliable torque transmission with minimal maintenance requirements. With comprehensive size options and OEM customization support, we offer tailored coupling solutions to meet your specific power transmission needs.
Â

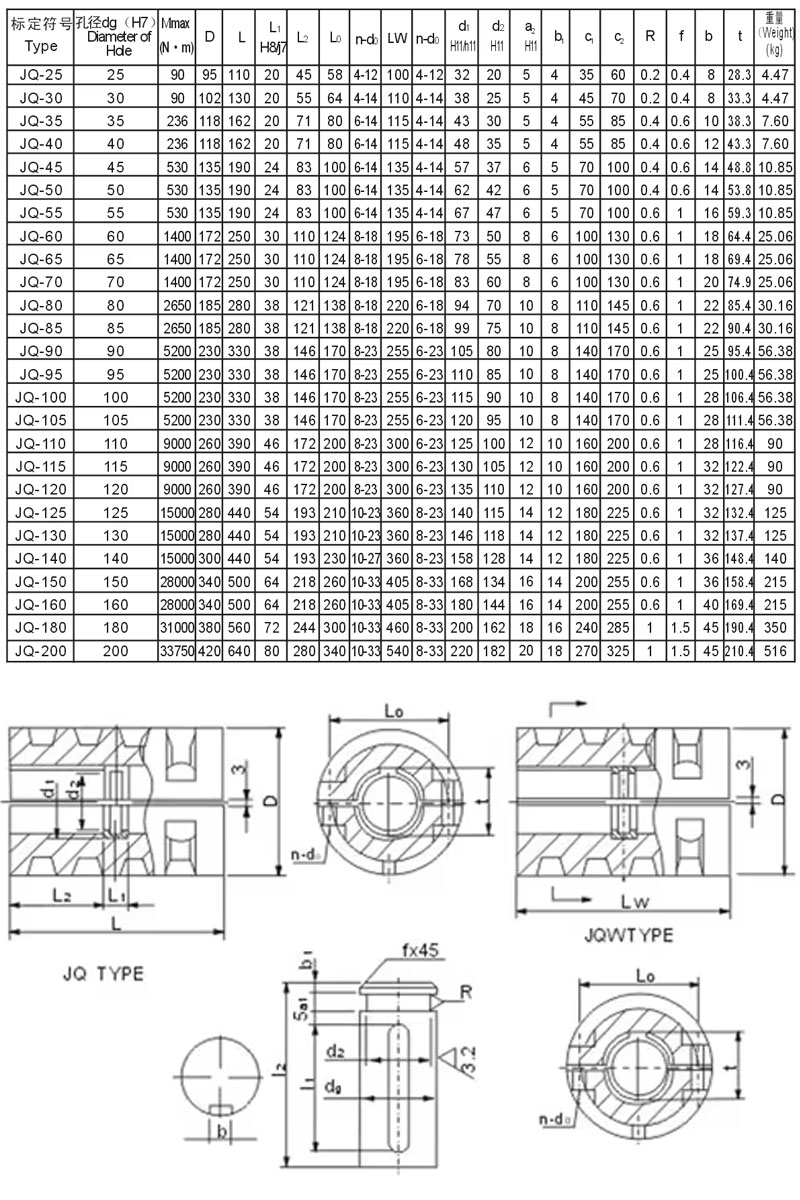

Specifications
Parameter | Value |
---|---|
Applicable Industries | Manufacturing Plants, Machinery Repair Shops |
Material | Aluminum / Steel |
Structure | Disc |
Standard/Nonstandard | Standard |
Bore Diameter | 25-170mm |
Outer Dimensions | 200-710mm |
Rated Torque | 125-16000 N-m |
Allowable Speed | 1000-3800 RPM |
Mounting Type | Set Screw |
Heat Treatment | High-frequency quenching |
Surface Treatment | Carburizing, blackening, electroplating |
Customized Support | OEM Available |
Advantages
Advantage | Description |
---|---|
Secure Connection | Set screw design ensures reliable shaft mounting and torque transmission. |
High Torque Capacity | Handles up to 16000 N-m for demanding industrial applications. |
Corrosion Resistance | Multiple surface treatment options protect against environmental factors. |
Easy Installation | Simple design allows for quick mounting and adjustment. |
Zero Backlash | Rigid construction ensures precise power transmission without play. |
Durable Construction | Advanced heat treatment extends service life under heavy loads. |
Wide Compatibility | Suitable for various shaft sizes and industrial applications. |
Â
set screw coupler for electric motors
aluminum rigid shaft coupling
high torque set screw coupling
industrial rigid coupling suppliers
set screw coupling 25-170mm bore
rigid shaft coupler with set screws
aluminum coupling with set screw mounting
industrial set screw coupling manufacturer

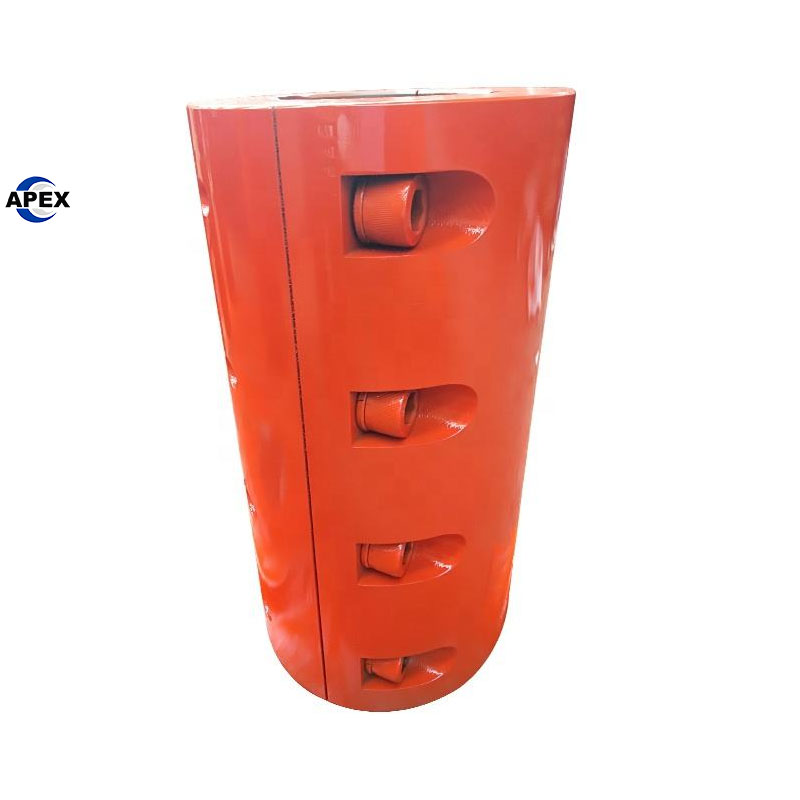

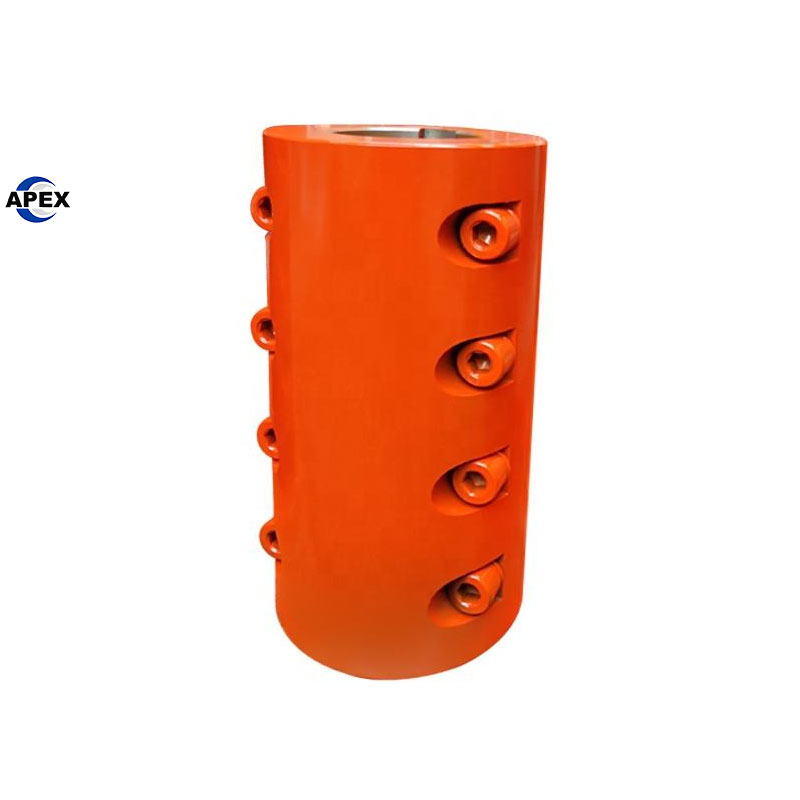

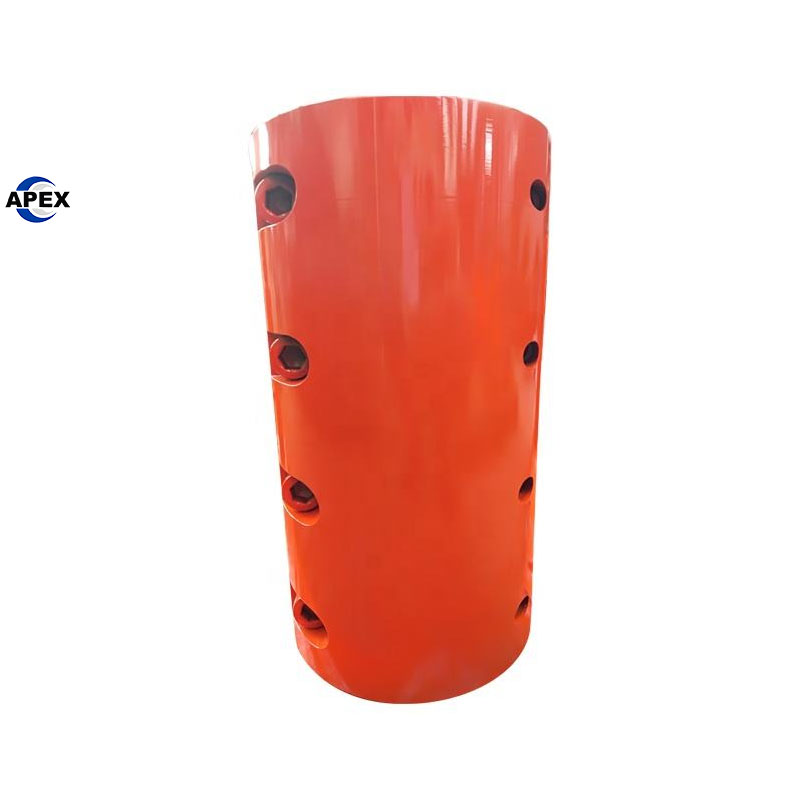

Product Show

Aluminum Rigid Shaft Coupling Aluminum Pipe Rigid Set Screw Coupling Bore Rigid Coupling Set Screw
- Model Number
JQ25-200
