Discover the durability and flexibility of our Crowning Elastic Sleeve Flex Rubber Coupling, an ideal solution for demanding power transmission applications in manufacturing plants and machinery repair shops. This flexible coupling is engineered with a precision-forged 45# steel body and a unique pin-and-bush structure that incorporates high-resilience rubber bushes. This design masterfully absorbs shock loads, dampens vibrations, and compensates for shaft misalignments, thereby protecting your valuable equipment from wear and tear.

The added brake wheel functionality provides integrated braking capability, making it a versatile and space-saving component. Suitable for a wide range of torque requirements (125 to 16,000 N.m) and rotational speeds, this flex coupling is also available in custom sizes and bore diameters to meet your specific machinery needs. Its boiling black surface treatment offers enhanced corrosion resistance, ensuring long-term reliability in tough industrial environments.

Features

• Advanced Structure: Crowned jaw type with pin and bush mechanism for superior flexibility and torque transmission.

• Elastic Element: High-quality rubber bushes for excellent shock absorption and vibration damping.

• Integrated Brake Wheel: Offers built-in braking functionality, saving space and cost.

• Heavy-Duty Material: Made from 45# forged steel for maximum strength and durability.

• Customizable: Available in custom lengths and bore diameters (25-170mm) to fit unique application requirements.

• Corrosion Protection: Boiling black surface treatment for increased resistance to rust.

Description

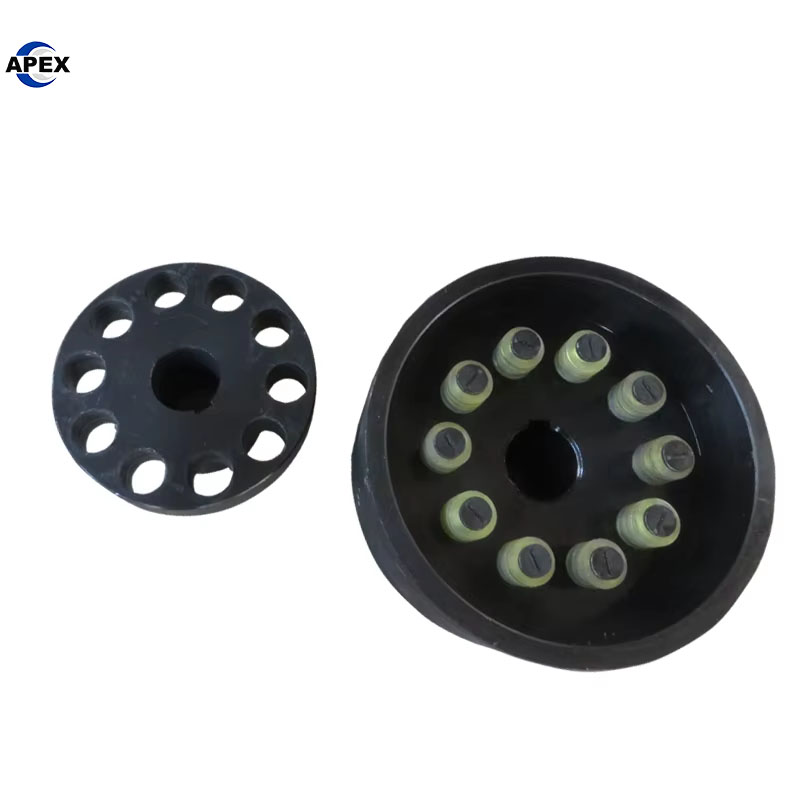

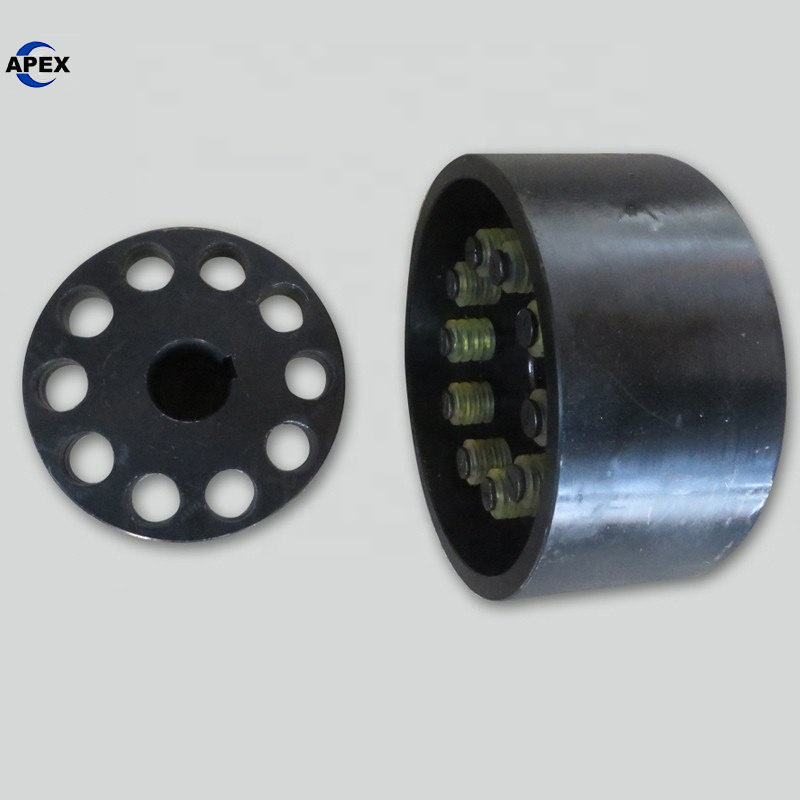

This Flex Jaw Type Crowning Elastic Sleeve Coupling is designed to connect two shafts while accommodating misalignment and mitigating destructive forces in the drive system. The key to its performance lies in the flexible rubber bushes that sit between the pins and the coupling jaws, allowing for slight movements and absorbing energy from shocks and vibrations. The “crowning” on the jaws ensures even pressure distribution on the rubber bushes, prolonging their life. Particularly useful in applications with frequent starts/stops or high inertial loads, this flex rubber coupling with an optional brake wheel is a comprehensive solution for enhancing the safety and longevity of industrial machinery such as conveyors, mixers, and presses.

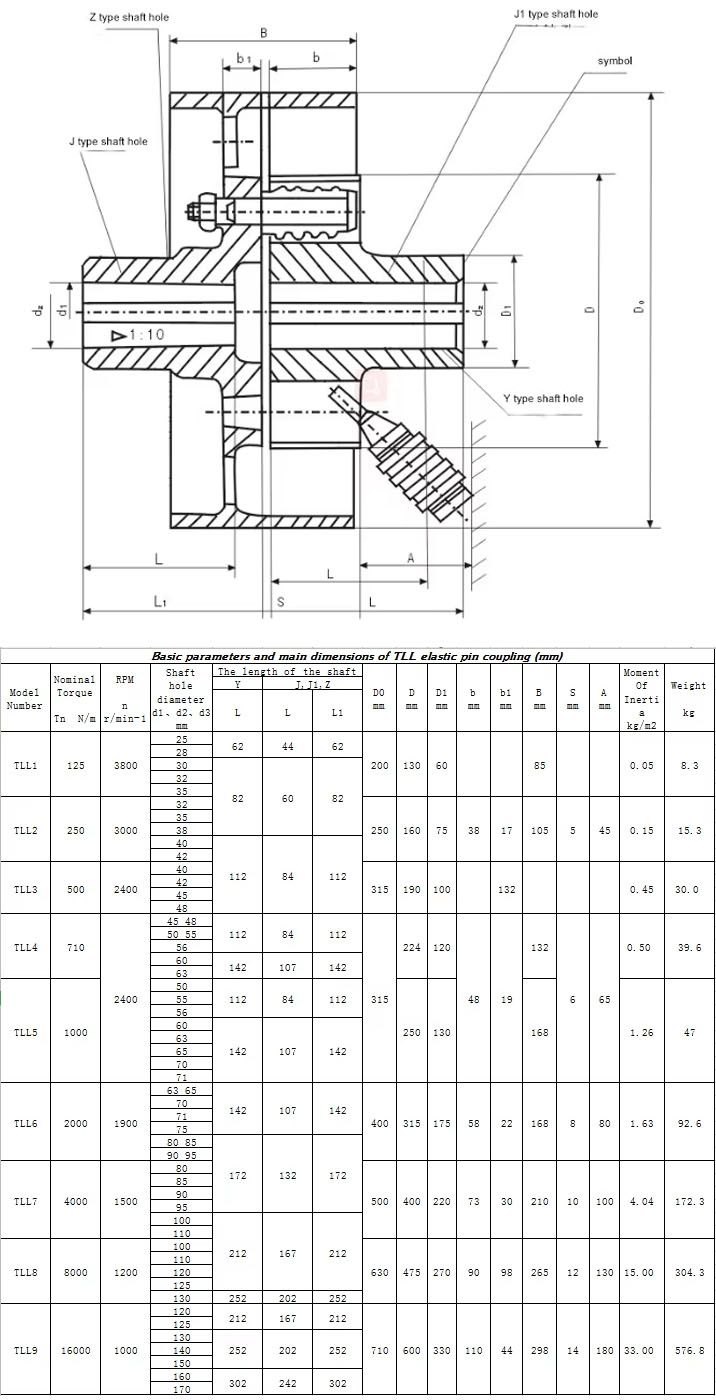

Specifications

 (Advantages)

• flex rubber coupling with brake wheel

• crowned jaw type flexible coupling

• pin and bush type flex coupling

• elastic sleeve coupling for heavy machinery

• high torque flex rubber coupling

• custom bore flex coupling

• rubber bush coupling for manufacturing

• flexible coupling with brake drum
