Heavy-Duty Grid Coupling - JSS Type Flexible Shaft Coupling with Double Flange for Industrial Motors
Model Number
JSS
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Double Flange Design: Provides secure connection and even load distribution for reliable performance
Grid-Type Flexible Element: Excellent shock absorption and vibration damping capabilities
Premium 45# Steel Construction: Ensures maximum durability and long service life
High Torque Capacity: Rated for 300 N.m with reliable performance under heavy loads
Distinctive Yellow Finish: Easy identification and compatibility with industrial color coding
Customizable Specifications: Available in standard and customized sizes with OEM support
Maintenance-Free Operation: Robust design requires minimal service and attention
Description

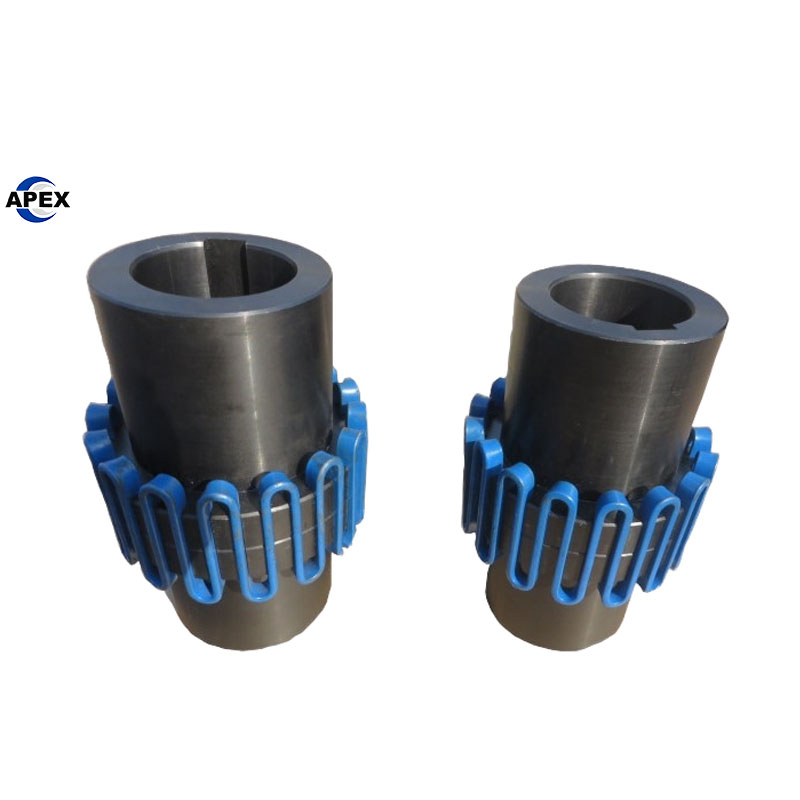

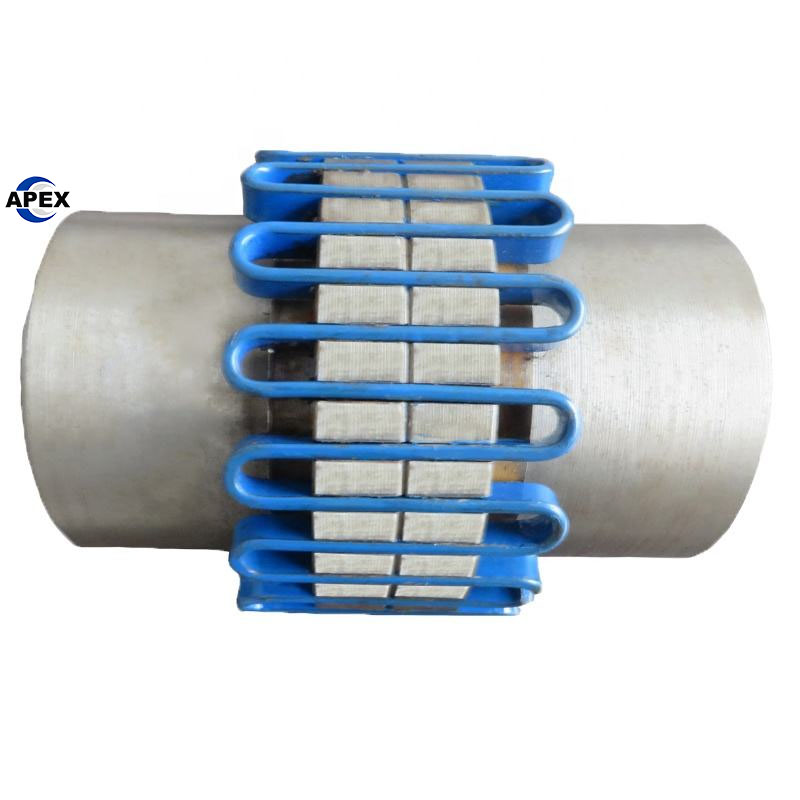

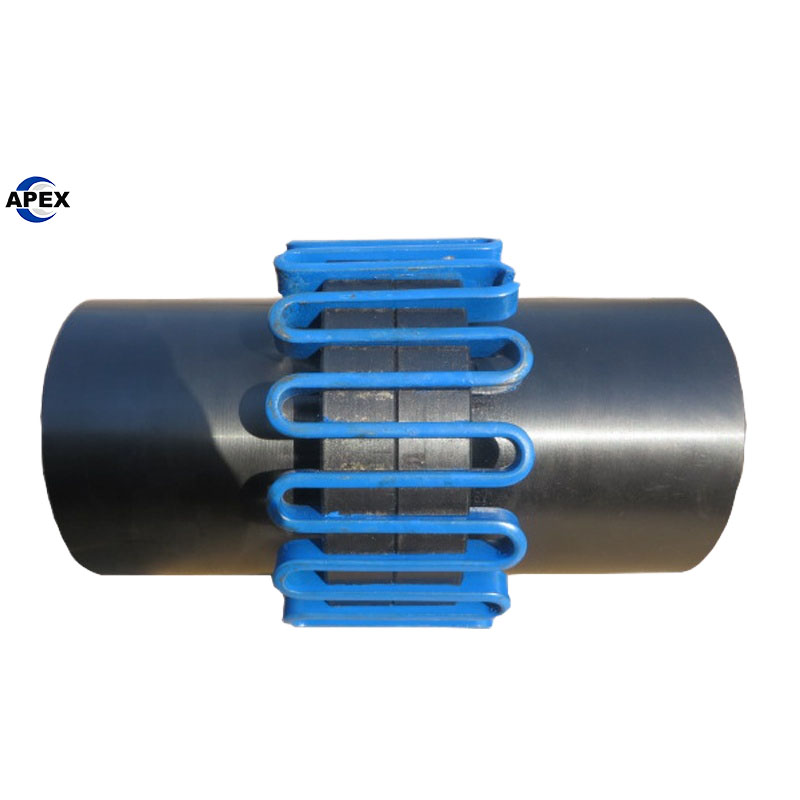

The JSS Type Grid Coupling represents advanced engineering in flexible power transmission technology, specifically designed to handle the demanding requirements of industrial applications. This flexible shaft coupling utilizes a unique grid element that engages with precisely machined grooves in two flanged hubs, creating a robust connection that efficiently transmits torque while accommodating angular, parallel, and axial shaft misalignments.
Engineered for manufacturing plants, industrial machinery, and motor applications, this grid coupling excels where reliability and performance are critical. The steel construction provides exceptional strength and durability, while the grid-type flexible element effectively absorbs shock loads and dampens vibrations that could otherwise damage connected equipment. With comprehensive customization options through OEM services, this flexible shaft coupling can be precisely tailored to meet specific operational requirements, ensuring optimal performance and perfect integration with your industrial systems. The combination of robust materials, advanced design, and flexible operation makes this grid coupling an ideal choice for applications requiring reliable power transmission with excellent misalignment compensation.

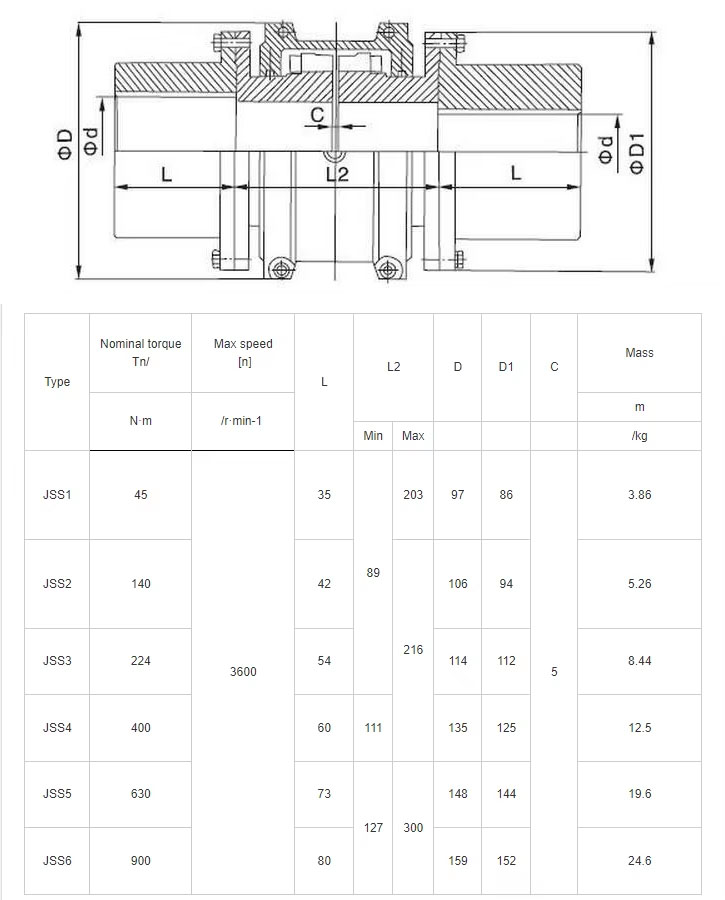

Specifications
| Parameter | Details |
|---|---|
| Type | JSS Grid Coupling |
| Structure | Double Flange with Grid Element |
| Body Material | 45# Steel |
| Bore Diameter | 30 mm (Customizable) |
| Rated Torque | 300 N.m |
| Maximum Speed | 3000 RPM |
| Color | Yellow |
| Customized Support | OEM Services Available |
| Packaging | Wooden Box |
Advantages
| Advantage | Description |
|---|---|
| Excellent Shock Absorption | Grid element effectively dampens vibrations and absorbs impact loads |
| Superior Misalignment Compensation | Accommodates angular, parallel, and axial shaft deviations |
| High Reliability | Robust construction ensures consistent performance in demanding conditions |
| Long Service Life | Premium materials and precision engineering guarantee extended durability |
| Easy Installation | Double flange design allows for quick assembly and secure connections |
| Customizable Solutions | OEM support enables perfect adaptation to specific application needs |
| Reduced Maintenance | Minimal service requirements and operational downtime |
grid coupling for industrial motor applications
JSS type flexible shaft coupling with double flange
heavy-duty grid coupling for manufacturing equipment
flexible shaft coupling with shock absorption
yellow grid coupling for machinery
customizable grid coupling OEM
high torque flexible shaft coupling
industrial grid coupling for pump systems
Product Show
Power Up Your Motor Systems with Custom JSS Snake Spring Grid Couplings! ⚙️🐍💛
Product Features:
✅ Type: JSS Grid Coupling with Snake Spring Design
✅ Material: High-Strength 45# Steel
✅ Structure: Double Flange Flexible Design
✅ Bore Diameter: 30mm (Custom Sizes Available)
✅ Rated Torque: 300 N.m
✅ Maximum Speed: 3000 RPM
✅ Color: Bright Yellow (Custom Colors Available)
✅ Packing: Secure Wooden Box
✅ MOQ: 1 Set Only
Why Choose Our Grid Couplings?
• Excellent Flexibility – Snake spring design absorbs shock and vibration
• High Torque Capacity – Reliable power transmission for motor systems
• Long Service Life – Durable construction for continuous operation
• Easy Maintenance – Simple design for quick inspection and service
• Customizable – OEM support available for specific requirements
• Wide Compatibility – Perfect for various motor and industrial applications
Perfect for:
🏭 Manufacturing Plants
🔧 Machinery Repair Shops
⚙️ Motor Drive Systems
🏗️ Industrial Equipment
Special Advantages:
🎯 Custom JSS Specifications
🔧 OEM Manufacturing Support
📦 Fast Delivery Worldwide
⚡ 1-Year Quality Warranty
