High Torque Drum Gear Coupling - Rigid Shaft Coupling for Heavy Industrial Applications
Model Number
GICL1
GICL2
GICL3
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
High torque capacity: 100,000 N-m
Maximum speed: 4000 RPM
Angular displacement up to 1°30′
Brake disc options (Type I & II) for speed control
Drum-shaped curved teeth for better contact and reduced wear
15-20% higher load capacity than straight-tooth couplings
Horn-shaped tooth ends for easy assembly
99.7% transmission efficiency
3-year warranty
OEM customization available
Description

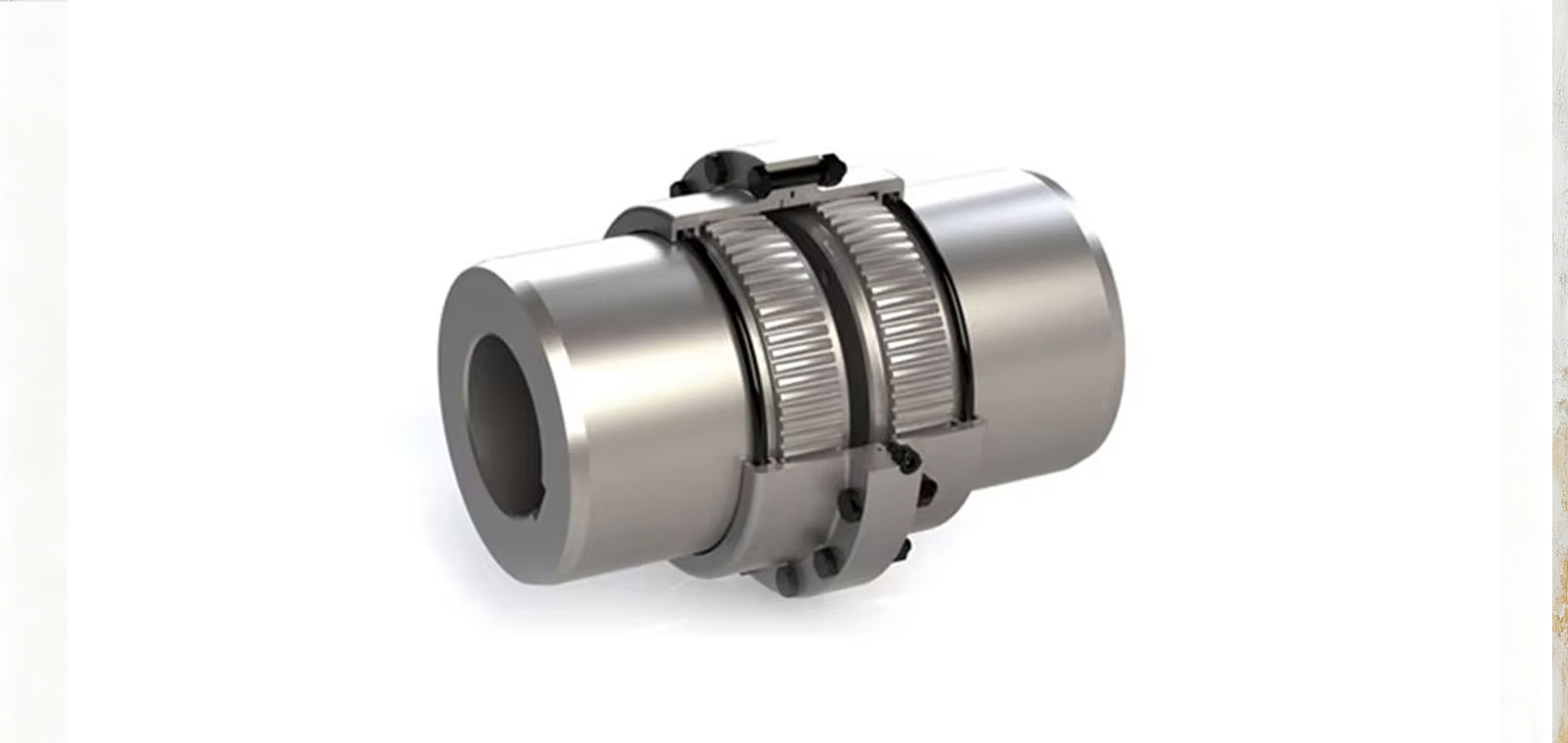

The WGP Drum Gear Coupling is a versatile rigid shaft coupling designed for heavy-duty applications. It consists of two drum-shaped outer gear sleeves and straight inner teeth that work together to transmit torque efficiently while compensating for angular and radial misalignment. The curved tooth design ensures optimal contact distribution, minimizing stress concentration and noise. This gear coupling is widely used in printing shops, construction sites, mining, and lifting machinery. With bore diameters ranging from 16-300 mm and optional brake disc configurations, it offers flexibility and reliability for various industrial needs. All components are made from 45# steel, ensuring long-term durability under high-stress conditions.
Specifications
| Parameter | Value |
|---|---|
| Applicable Industries | Printing, Construction, Mining, Heavy Machinery |
| Material | 45# Steel |
| Standard/Nonstandard | Standard |
| Warranty | 3 Years |
| Type | Rigid Shaft Coupling |
| Bore Diameter | 16-300 mm |
| Maximum Speed | 4000 RPM |
| Rated Torque | 100,000 N-m |
| MOQ | 1 Set |
| Customized Support | OEM |
| Key Features | High Torque, High Rigidity, Long Life |
| Packaging | Wooden Box |
Advantages
| Advantage | Description |
|---|---|
| Enhanced Load Capacity | 15-20% higher than straight-tooth couplings, ideal for heavy loads. |
| Superior Misalignment Compensation | Handles angular displacement up to 1°30′ for smoother operation. |
| Reduced Noise & Vibration | Curved teeth minimize friction and operational noise. |
| Long Service Life | Durable 45# steel and optimized tooth design extend maintenance cycles. |
| Easy Installation | Horn-shaped tooth ends allow quick and hassle-free assembly. |
| Customizable | Available in standard and custom sizes with OEM support. |
| High Efficiency | 99.7% transmission efficiency ensures minimal energy loss. |
drum gear coupling with brake disc
high torque rigid shaft coupling
drum gear coupling for printing machinery
customizable rigid shaft couplings
industrial gear coupling 100000 N-m
steel drum gear coupling OEM
rigid shaft coupling for construction equipment

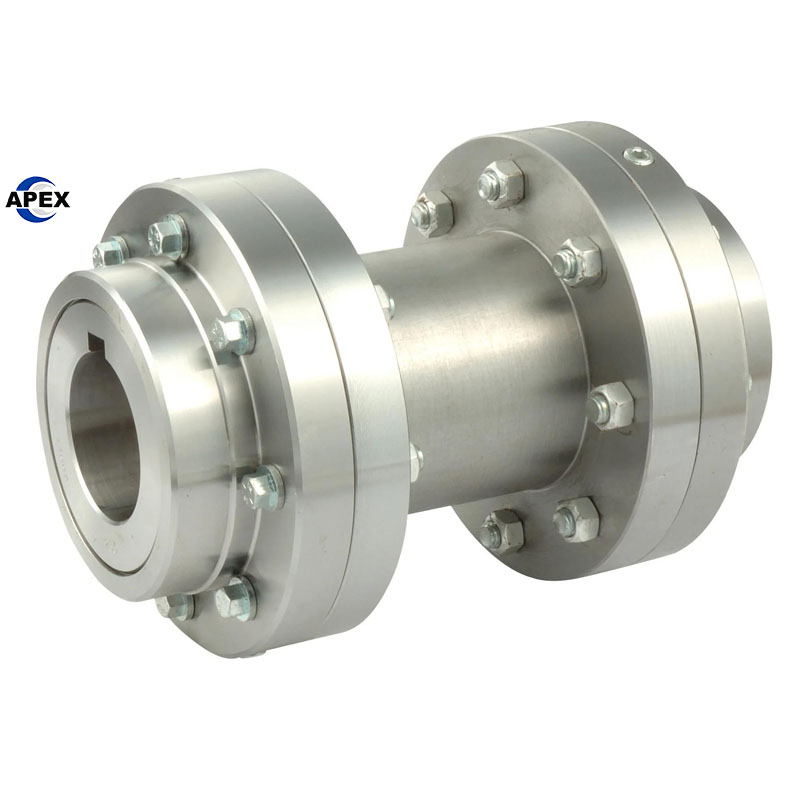

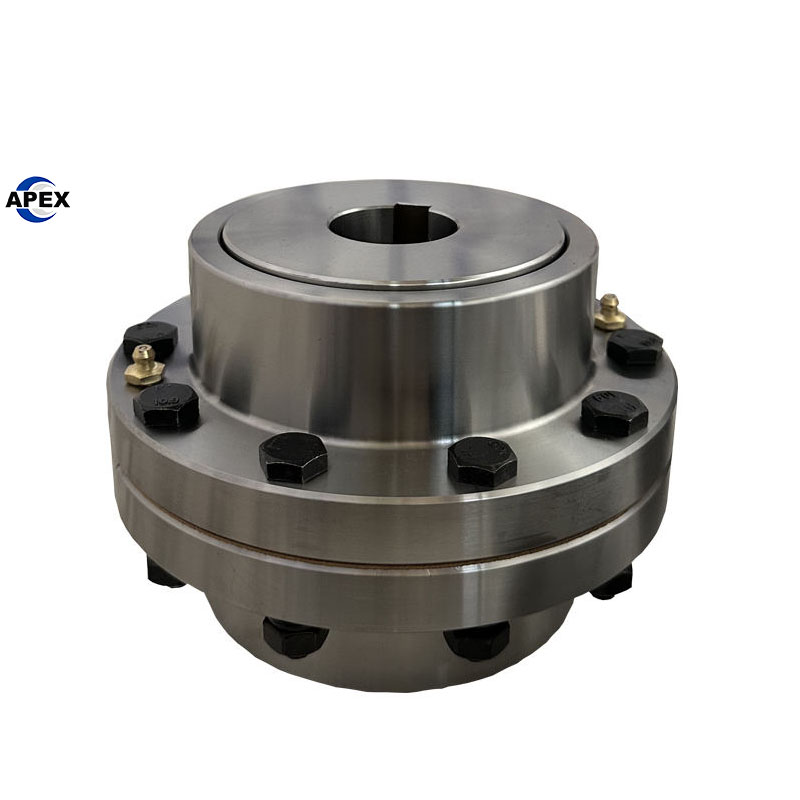

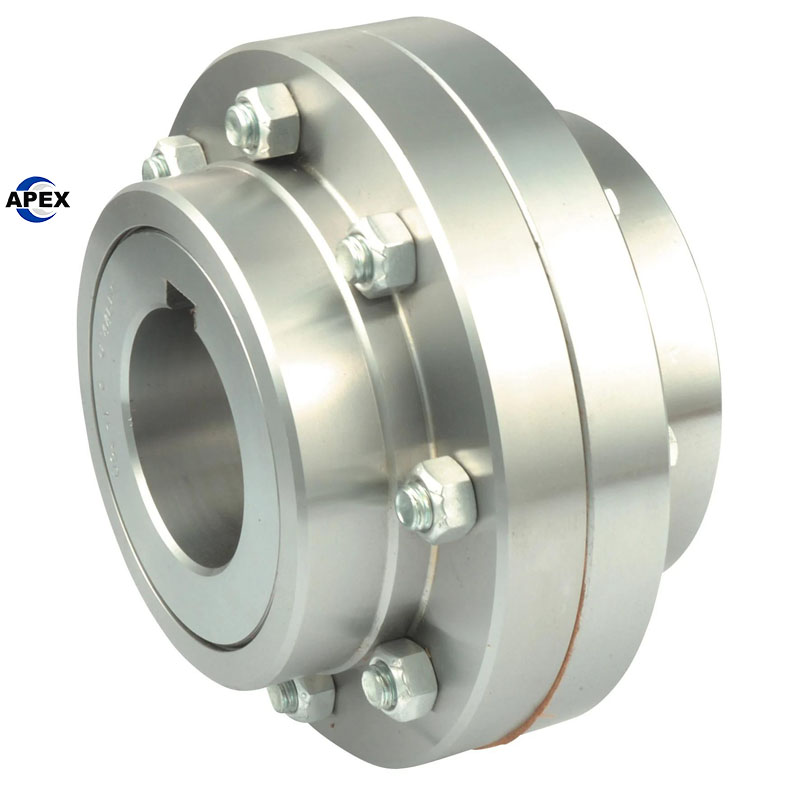

Product Show
High Torque Steel Drum Gear Coupling Rigid Shaft Couplings
