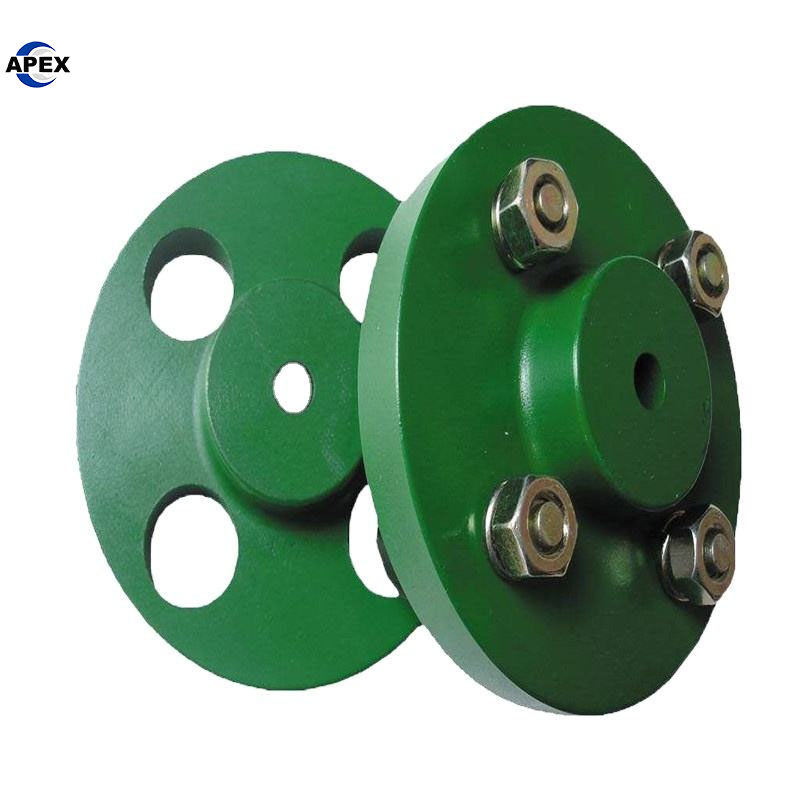

FCL Pin Bush Flexible Coupling - Cast Iron Elastic Sleeve Coupling for Industrial Gearboxes

Model Number
FCL

Product Description

Our FCL pin bush flexible coupling represents advanced engineering in power transmission technology, designed to deliver reliable performance in demanding industrial environments. This robust flexible coupling features an innovative pin and bush sleeve design manufactured from high-quality cast iron, providing exceptional durability and vibration damping capabilities. The elastic sleeve construction allows this pin bush flexible coupling to effectively compensate for radial displacement of 0.2-0.6mm and angular displacement up to 1°30′, ensuring smooth power transmission while protecting connected equipment. With its compact, lightweight design and easy installation features, this flexible coupling is ideal for gearboxes, cranes, compressors, conveyors, and various industrial equipment applications.




Key Features

  • Elastic Pin & Bush Design: Superior vibration absorption and shock damping

  • Heavy-Duty Cast Iron: Maximum durability for industrial applications

  • Radial Displacement Compensation: 0.2-0.6mm accommodation for misalignment

  • Angular Displacement Tolerance: Up to 1°30′ for flexible installation

  • Compact & Lightweight: Easy installation and space-saving design

  • Long Service Life: Robust construction ensures reliable performance

  • Custom Sizing: Comprehensive OEM support for specific requirements


Technical Specifications



ParameterSpecification
Body MaterialCast Iron
Structure TypePin & Bush Sleeve
FlexibilityFlexible
Radial Displacement0.2-0.6 mm
Angular Displacement0°30′ – 1°30′
PackageWooden Box
CustomizationFull OEM Support
MOQ1 Set

Advantages & Benefits



FeatureBenefit
Elastic Pin Bush DesignExcellent vibration absorption and equipment protection
Cast Iron ConstructionWithstands heavy loads and harsh industrial conditions
Misalignment CompensationReduces stress on connected equipment components
Compact DesignSaves space and allows for easy installation
Long Operational LifeReduced maintenance costs and downtime
Custom ManufacturingPerfect fit for specific application requirements


pin bush flexible coupling for gearboxes, FCL elastic sleeve coupling, industrial flexible pin coupling, cast iron flexible coupling


flexible coupling, pin coupling, bush coupling, elastic coupling, sleeve coupling, industrial coupling, power transmission coupling

Product Show

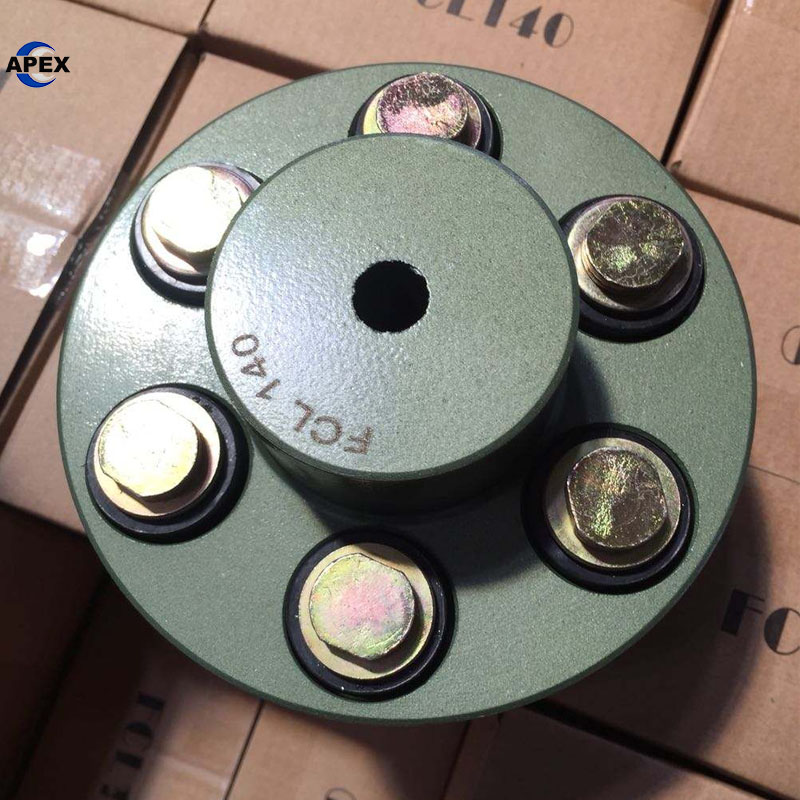

FCL 140 & FCL 280 Flexible Pin & Bush Couplings - Precision Engineering for Smooth Power Transmission!

  • Key Features:
    ✅ Simple & Robust Design – Easy installation, replacement, and maintenance
    ✅ Excellent Vibration Damping – Reduces shocks and extends equipment lifespan
    ✅ Compensates for Misalignment – Handles radial (0.2–0.6mm) and angular (0°30′–1°30′) displacement
    ✅ Wide Application Range – Ideal for reducers, cranes, compressors, conveyors, textile machinery, and more
    ✅ Customizable Options – Available in standard sizes like FCL 140, FCL 280, and tailored specifications

    Technical Highlights:
    • Material: High-Quality Cast Iron
    • Long Service Life & Reliable Performance
    • Compact, Lightweight & Cost-Effective
    • Suitable for Medium to Small Power Transmission Systems

    Perfect For:
    • Gearboxes & Reducers
    • Crane & Hoisting Systems
    • Compressors, Pumps & Conveyors
    • Textile & Manufacturing Machinery

    Why Choose FCL Couplings?
    • Minimize downtime with easy installation
    • Enhance operational stability
    • Improve energy efficiency with smooth torque transmission

    🔧 Get Your FCL Coupling Today!
    DM us for pricing, customization, or technical support. Let’s power your machinery with reliability and precision!
