Heavy-Duty Tyre Flexible Shaft Couplings - F Series with Steel Flange for Industrial Hub Applications
Model Number
F type
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Tyre-Type Flexible Design: Elastomeric element for superior vibration damping and shock absorption
Steel Flange Construction: Precision-machined flanges ensure secure hub connections
Heavy-Duty Materials: Cast iron and steel components for maximum durability
High Misalignment Tolerance: Accommodates axial, radial, and angular shaft deviations
Wide Torque Range: Handles transmission torque from 10 to 20,000 N.m
Maintenance-Free Operation: No lubrication required and easy installation
Comprehensive Size Range: Available in F40 to F250 series for various applications
- Â
Description
The F Series Tyre Flexible Shaft Couplings represent advanced engineering in power transmission technology, specifically designed to handle the most challenging industrial applications. These innovative shaft couplers utilize a flexible tyre-shaped elastomeric element that connects two flanged hubs, creating a robust yet flexible connection that transmits torque efficiently while accommodating significant shaft misalignments.
Ideal for construction equipment, manufacturing machinery, and industrial processing applications, these tyre flexible shaft couplings excel in environments where shock loads, vibration, and misalignment are common concerns. The rigid structure with steel flanges provides exceptional strength and durability, while the flexible tyre element effectively dampens vibrations and absorbs impact loads that could otherwise damage connected equipment. With models ranging from F40 to F250, these couplings offer versatile solutions for various power transmission requirements, ensuring reliable performance in the most demanding operating conditions while minimizing maintenance requirements and downtime.
Â

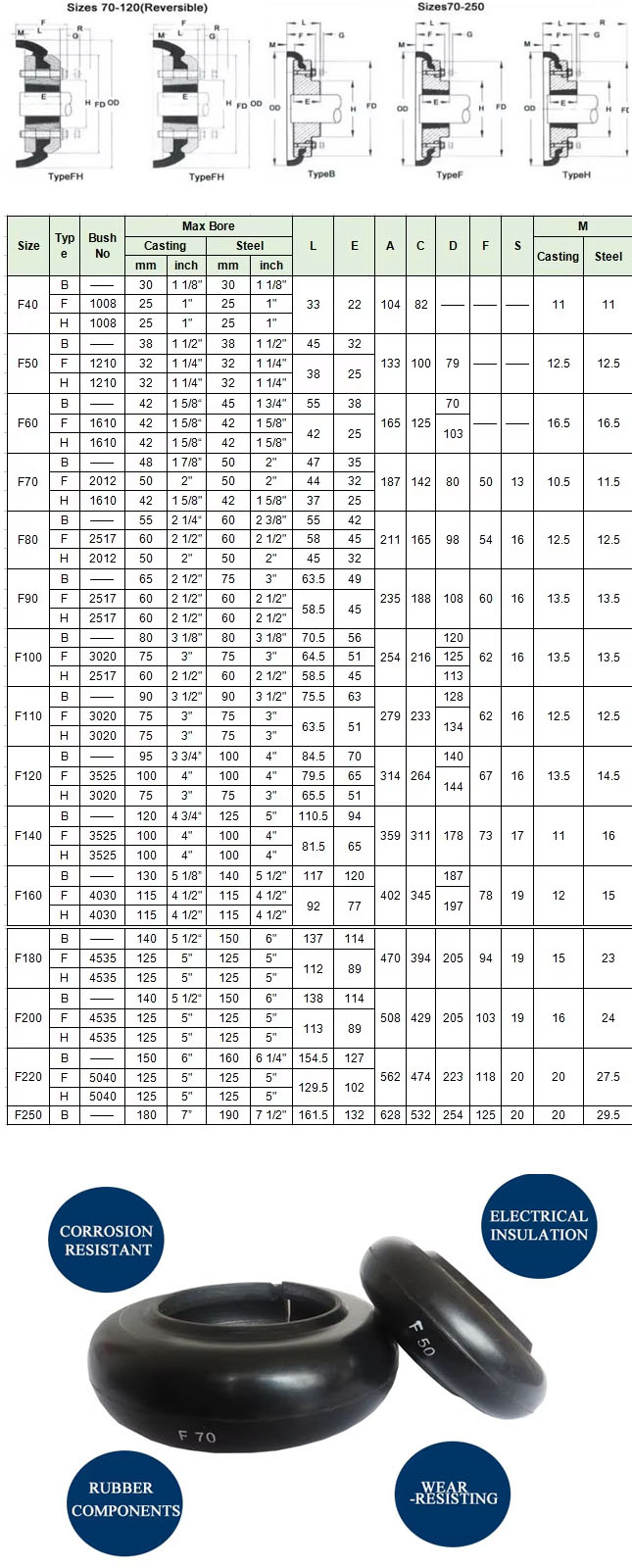

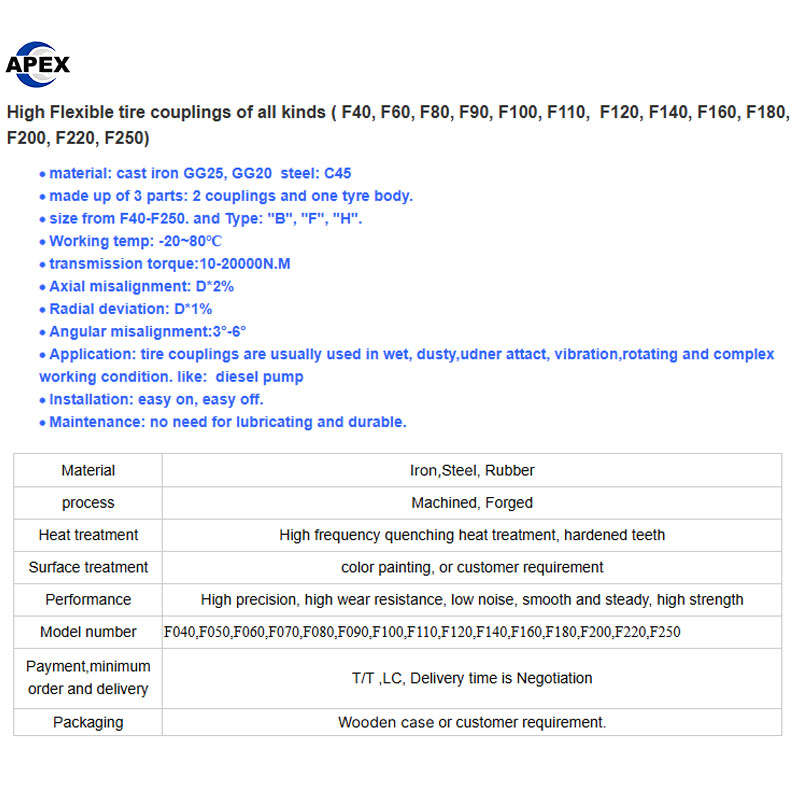

Specifications
| Parameter | Details |
|---|---|
| Model Series | F40-F250 (F60, F70, F85, F110, F140) |
| Material | Cast Iron, Steel |
| Structure | Tyre Flexible Coupling with Steel Flange |
| Bore Diameter | 30 mm (Standard, Customizable) |
| Rated Torque | 300 N.m |
| Transmission Torque Range | 10-20,000 N.m |
| Maximum Speed | 3000 RPM |
| Working Temperature | -20°C to 80°C |
| Axial Misalignment | Up to 2% of diameter |
| Radial Deviation | Up to 1% of diameter |
| Angular Misalignment | 3° to 6° |
Advantages
| Advantage | Description |
|---|---|
| Superior Vibration Damping | Effectively absorbs shocks and reduces vibration transmission |
| Excellent Misalignment Compensation | Accommodates significant shaft deviations without performance loss |
| Maintenance-Free Operation | No lubrication required, reducing downtime and operational costs |
| Robust Construction | Cast iron and steel materials ensure durability and long service life |
| Easy Installation | Steel flange design allows for quick assembly and secure connections |
| Wide Application Range | Suitable for construction, manufacturing, and various industrial sectors |
| Reliable Performance | Consistent operation in challenging environmental conditions |
Â
tyre flexible shaft couplings for construction industries
F140 steel flange shaft coupler for industrial hubs
heavy-duty tyre couplings with flange connection
F series flexible shaft couplings for manufacturing
high-torque tyre shaft couplers F40-F250
custom bore tyre flexible couplings
vibration damping shaft couplers with flange
maintenance-free tyre couplings for heavy machinery

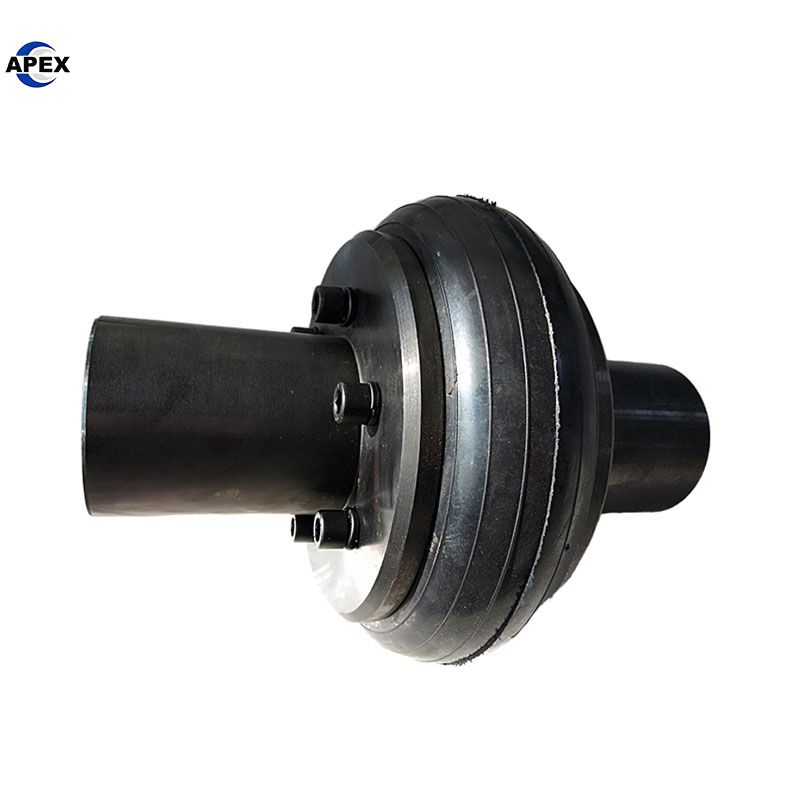

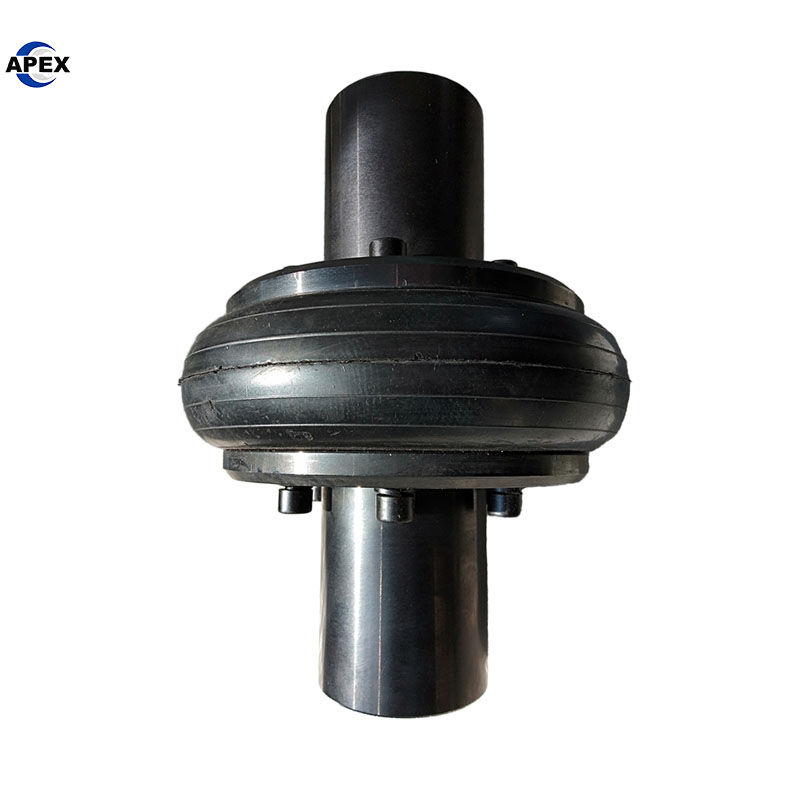

Product Show
F-60 F70 F85 F-110 F140 Tyre Flexible Shaft Couplings
Product Features:
✅ Structure: Tyre-Type Flexible Coupling
✅ Material: 45# Steel + High-Quality Rubber
✅ Bore Diameter: 30mm (Custom Sizes Available)
✅ Rated Torque: 500 N.m
✅ Maximum Speed: 3000 RPM
✅ Color: Black
✅ Packing: Secure Wooden Box
✅ MOQ: 1 Set
✅ Customization: OEM, ODM, OBM Supported
