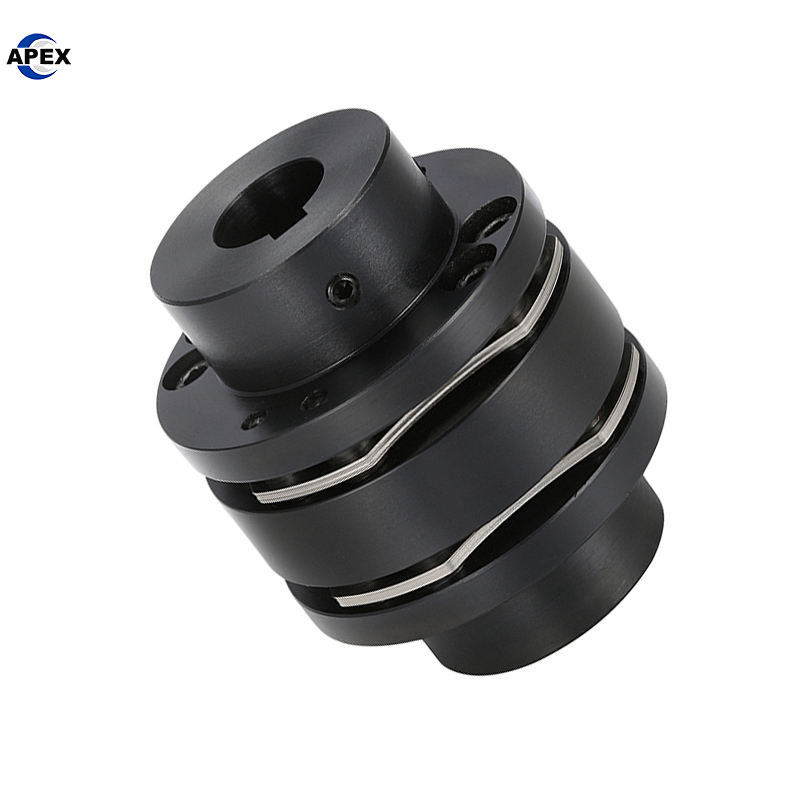

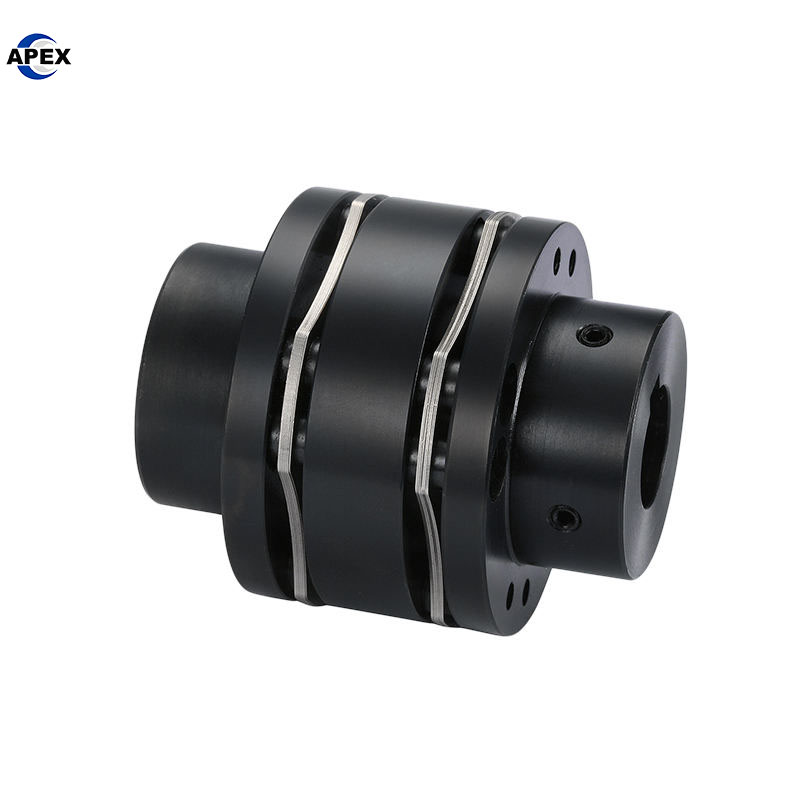

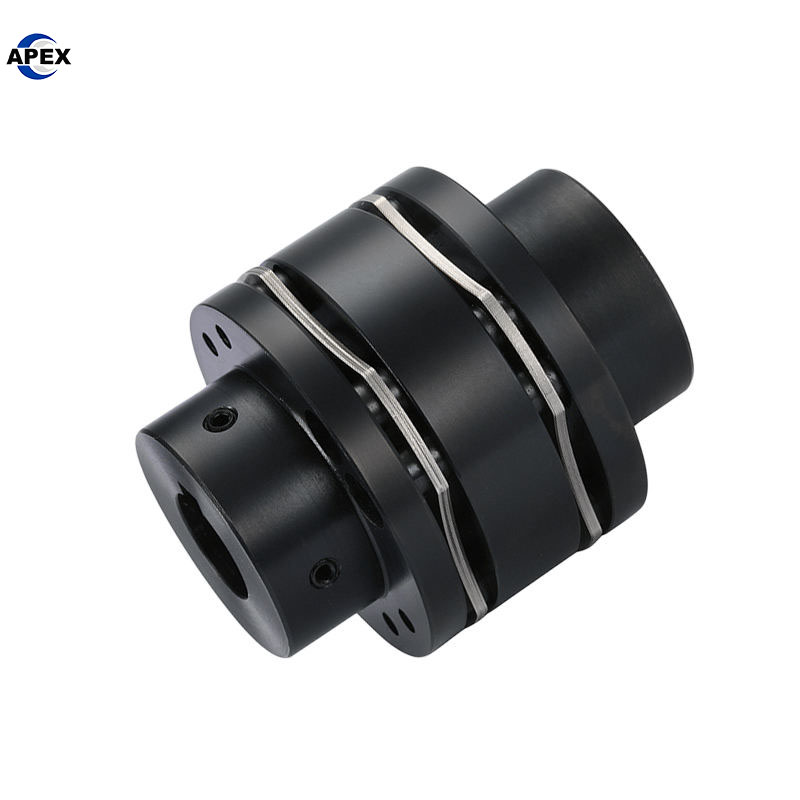

This is a high-performance, precision flexible coupling designed for the most demanding industrial applications. Its complex name describes its construction and, by extension, its purpose.

Primary Use: High-Precision, High-Torque Power Transmission

The core function of this coupling is to connect two rotating shafts (e.g., a motor shaft and a driven machine shaft) to transmit torque and rotation while accommodating misalignment, all without introducing backlash (play) and with minimal torsional wind-up.

Detailed Breakdown of the Name and Its Implications for Use:

Let’s decode its name to understand exactly what it’s used for:

1. S45C Steel:

   • What it means: S45C is a high-quality medium carbon steel (equivalent to AISI 1045). It’s known for its excellent strength, toughness, and ability to be heat-treated for enhanced surface hardness.

   • What it’s used for: This material makes the coupling suitable for heavy-duty applications with high torque and demanding environments. It can withstand significant stress and resists wear.

2. Double Step Double Diaphragm:

   • What it means: It has two sets of flexible, thin metal discs (diaphragms) arranged in a “step” or “nested” configuration. This is a more advanced design than a single diaphragm set.

   • What it’s used for:

     • Compensates for Complex Misalignment: It can simultaneously handle angular, parallel (offset), and axial misalignment better than a single diaphragm set.

     • Absorbs Vibration: The double diaphragms act as springs, dampening vibrations and shock loads from the motor or the driven equipment, protecting both.

     • High-Speed Capability: The balanced, all-metal design allows it to operate at very high rotational speeds without issues like the “windmilling” that can affect other coupling types.

3. Keyway:

   • What it means: The bore (hole) of the coupling has a keyway slot to accept a standard mechanical key.

   • What it’s used for: This is the most common and secure method for locking the coupling to the shaft, ensuring it transmits high torque without slipping. It’s used in applications where a positive, fail-safe connection is critical.

4. Disc Coupling & High Rigidity:

   • What it means: “Disc Coupling” is another name for a diaphragm coupling. “High Rigidity” refers to its high torsional stiffness.

   • What it’s used for: This is crucial for precision motion control. It ensures that when the motor shaft turns, the driven shaft turns almost instantaneously with very little wind-up or twist. This is essential for maintaining accuracy in positioning systems.

5. With Eight Screw:

   • What it means: It uses eight high-strength screws to clamp the two hubs onto the shafts and connect the diaphragm packs.

   • What it’s used for: This provides an extremely secure and balanced connection. The high number of screws ensures even distribution of clamping force, which is necessary for handling high torque and maintaining balance at high speeds.

6. OEM Customizable:

   • What it means: The manufacturer can customize bore sizes, keyways, overall length, and sometimes material specifications to fit a specific machine’s requirements.

   • What it’s used for: This makes it an ideal component for Original Equipment Manufacturers (OEMs) who are building custom machinery and need a coupling that fits their unique design, rather than being forced to design around a standard off-the-shelf part.

Summary of Typical Applications:

This coupling is not for simple, low-power machinery. It is specifically engineered for:

• High-Speed CNC Machinery: Such as machining centers, lathes, and grinders, where precision and lack of backlash are critical for surface finish and dimensional accuracy.

• Precision Robotics: Especially in robotic arms used for manufacturing or assembly, where precise joint positioning is required.

• Aerospace & Defense Test Rigs: For testing turbines, actuators, and other systems where high speed, high torque, and data accuracy are paramount.

• High-Performance Pumps & Compressors: Especially in multi-stage centrifugal pumps and compressors used in oil & gas or chemical processing, where reliability under demanding conditions is essential.

• Marine Propulsion Systems: To connect the engine to the gearbox or propeller shaft, accommodating misalignment from hull flex while transmitting enormous torque.

• Paper & Steel Processing Mills: In rolling mills and other heavy processing equipment that requires robust power transmission with some flexibility.

In essence, this coupling is the “premium sports car” of the coupling world—designed for maximum performance, reliability, and precision in the most challenging mechanical environments.
