High-Torque Diaphragm Coupling - Double Diaphragm Flexible Shaft Coupling for Chemical Pumps & Industrial Machinery
Model Number
JMIJ
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Double Diaphragm Design: Multiple stainless steel diaphragms for superior flexibility and torque transmission
High Torque Capacity: Robust 45# steel construction ensures maximum power transmission capability
Zero Backlash Operation: Maintains precise alignment without play or vibration
Maintenance-Free: No lubrication required and no wearing components
High Misalignment Tolerance: Accommodates angular, parallel, and axial shaft deviations
Customizable Specifications: Available in various sizes and configurations with OEM support
Wide Temperature Range: Suitable for high-temperature and corrosive environments
Description
The diaphragm coupling represents the pinnacle of flexible coupling technology for high-performance industrial applications. This advanced coupling consists of two hubs connected by a series of thin, flexible stainless steel diaphragms that transmit torque while accommodating misalignment. The double diaphragm configuration provides balanced flexibility and exceptional torsional stiffness, making it ideal for precision applications where shaft alignment cannot be perfectly maintained.
Engineered for chemical pumps, turbomachinery, compressors, generators, and marine propulsion systems, this diaphragm coupling offers reliable performance in the most demanding operating conditions. The all-metal construction ensures longevity in high-temperature and corrosive environments, while the maintenance-free design eliminates downtime associated with lubrication and component replacement. With excellent vibration damping characteristics and the ability to handle high rotational speeds, our diaphragm coupling provides a reliable solution for critical power transmission systems across various industrial sectors.
Specifications
| Parameter | Details |
|---|---|
| Structure | Double Diaphragm Design |
| Body Material | 45# Steel |
| Diaphragm Material | Stainless Steel |
| Flexible or Rigid | Flexible |
| Standard or Nonstandard | Standard |
| Color | Silver White |
| Feature | High Torque, High Rigidity |
| Customized Support | OEM Services Available |
| Packaging | Wooden Box |
Advantages
| Advantage | Description |
|---|---|
| High Torque Transmission | Robust design handles maximum power requirements with exceptional reliability |
| Precision Alignment | Zero backlash operation ensures accurate power transmission without vibration |
| Excellent Misalignment Compensation | Accommodates significant shaft deviations without performance loss |
| Maintenance-Free Operation | No lubrication required and no wearing components reduce downtime |
| Long Service Life | All-metal construction ensures durability in harsh operating environments |
| High-Speed Capability | Balanced design allows for smooth operation at elevated rotational speeds |
| Corrosion Resistance | Stainless steel diaphragms provide excellent resistance to chemical exposure |
diaphragm coupling for chemical pump applications
double diaphragm flexible shaft coupling
high torque diaphragm coupling for compressors
stainless steel diaphragm coupling for marine propulsion
zero backlash diaphragm coupling
custom size diaphragm coupling
high speed diaphragm coupling for turbines
industrial diaphragm coupling for power generation

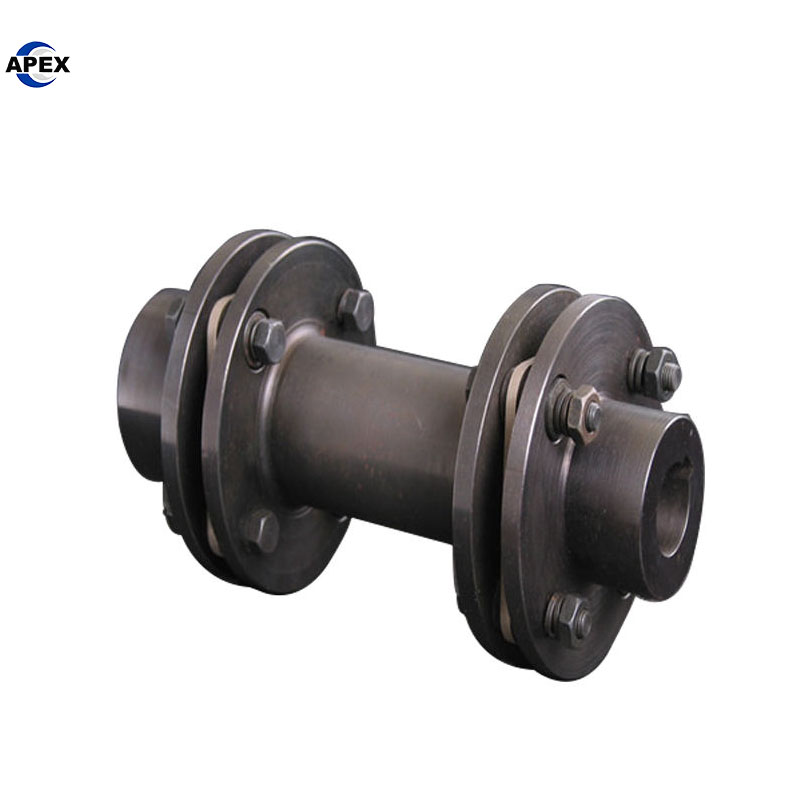

Product Show
Why choose KTR H Flexible Water Pump Shaft Coupling?
Product Features:
✅ Type: Double Diaphragm Flexible Coupling
✅ Material: High-Strength 45# Steel
✅ Design: Disc Structure for Maximum Flexibility
✅ Color: Silver White
✅ Packing: Secure Wooden Box Packaging
✅ MOQ: Only 1 Set
✅ Customization: Full OEM Support Available
Why Choose Our Diaphragm Couplings?
• High Torque Capacity – Handles heavy loads with ease
• Excellent Flexibility – Compensates for angular and parallel misalignment
• Long Service Life – Built for continuous operation in harsh conditions
• Maintenance-Free – No lubrication required
• Perfect for Chemical Pumps – Resists corrosion and chemical exposure
• High Rigidity – Maintains precision in power transmission
Perfect Applications:
🏭 Chemical Processing Plants
⚗️ Chemical Pumps & Mixers
🏭 Manufacturing Facilities
🔧 Machinery Repair Shops
💧 Industrial Pumping Systems
Key Benefits:
✨ Zero Backlash Operation
✨ Vibration Damping
✨ High-Speed Capability
✨ Easy Installation
Special Offers:
🔧 Custom Sizes Available
📦 Fast Delivery Worldwide
⚡ 1-Year Quality Warranty
🎯 Direct Factory Pricing
Upgrade your equipment with our reliable double diaphragm couplings today! 🚀
📩 Contact us now for quotes and customization!
🔧 Perfect for OEM applications and industrial replacements!
