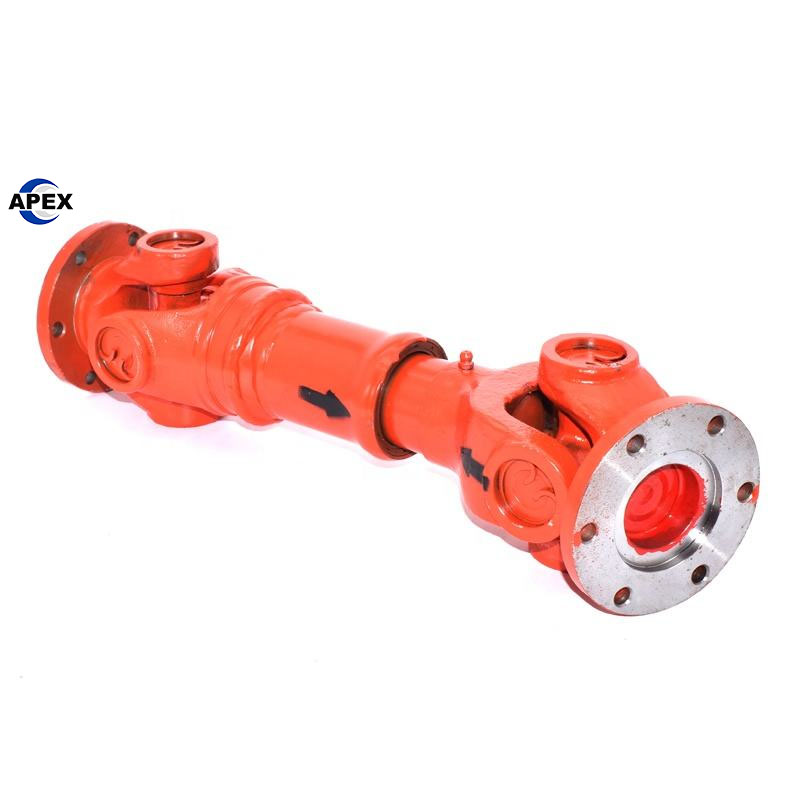

Double Cardan Drive Shaft - Heavy Duty Universal Joints for Industrial Machinery
Model Number:
SWC 58-BH
SWC65-BH
SWC75-BH
SWC90-BH
SWC100-BH
SWC120-BH
SWC150-BH
SWC180-BH
SWC200-BH
SWC225-BH
SWC250-BH
SWC285-BH
SWC315-BH
SWC350-BH
SWC390-BH
SWC440-BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Our double cardan drive shaft universal joints represent the ultimate solution for heavy-duty power transmission applications requiring exceptional angular compensation and reliability. These industrial universal joints feature a robust double structure design manufactured from premium alloy steel (42CrMo, 20CR with quenching process), ensuring maximum durability under extreme operating conditions. With an impressive 15°-25° operating angle capability and torque range from 1.25 to 1000 N.M, these universal joints provide smooth power transmission even in severely misaligned shaft applications. The flange connection system, available in diameters from 58-440mm, guarantees secure mounting while the custom color options (yellow, orange, black, white) with painting surface treatment ensure both corrosion protection and visual appeal for various industrial environments.
Key Features
Double Cardan Structure: Enhanced angular compensation for 15°-25° operating angles
High-Grade Alloy Steel: 42CrMo and 20CR materials with quenching process
Flange Connection System: Secure shaft fixing with 58-440mm diameter range
High Performance: 1000 N.M torque capacity and 4000 RPM speed rating
Custom Color Options: Yellow, orange, black, white with painting treatment
Metric System: Standard measurement for international compatibility
Quality Assurance: 1-year warranty with OEM/ODM/OBM support

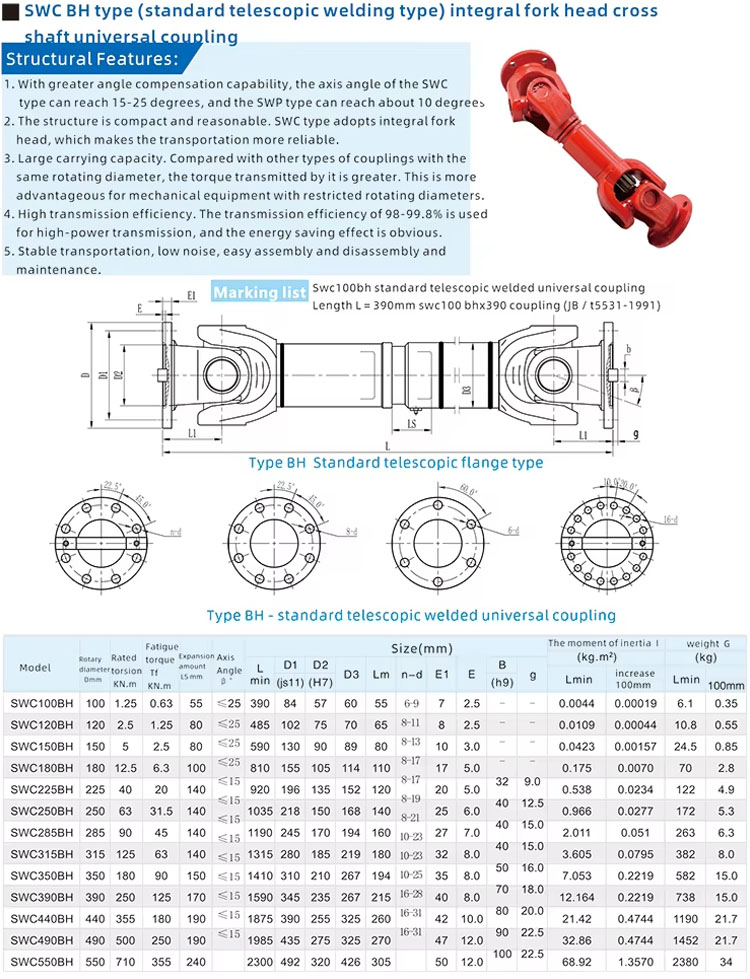

Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | Alloy Steel (42CrMo, 20CR) |
| Structure Type | Double Universal Joint |
| Operating Angle | 15°-25° |
| Torque Range | 1.25-1000 N.M |
| Maximum Speed | 4000 RPM |
| Flange Diameter | 58-440 mm |
| Surface Treatment | Painting |
| Color Options | Yellow, Orange, Black, White |
| Customization | OEM, ODM, OBM Supported |
Advantages & Benefits
| Feature | Benefit |
|---|---|
| Double Joint Design | Superior misalignment compensation and vibration reduction |
| Alloy Steel Construction | Extended service life under heavy loads and harsh conditions |
| High Torque Capacity | Reliable performance in demanding industrial applications |
| Flange Connection | Easy installation and secure torque transmission |
| Custom Colors | Easy identification and corrosion protection |
| Quality Certification | Consistent performance backed by warranty |
double cardan drive shaft universal joints, industrial universal joints for steel rolling, heavy duty cardan shaft coupling, double universal joints 1000N.M
Cardan joint, U-joint assembly, universal coupling, drive shaft joint, double universal shaft, industrial Cardan shaft, universal joint coupling
Product Show

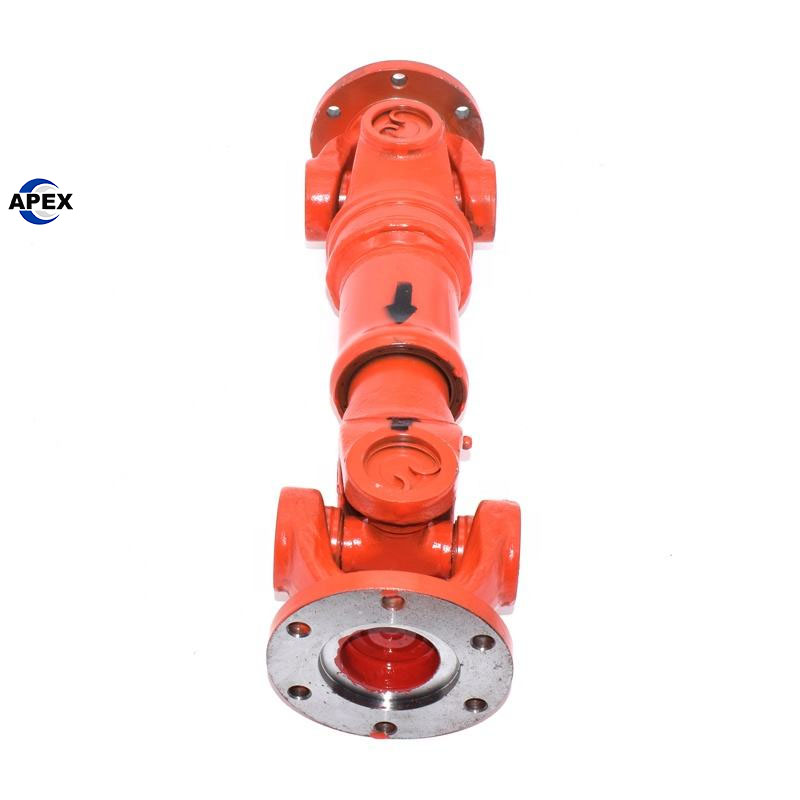

SWC-BH Double Cardan Shaft - Direct Replacement for Hitachi Equipment!
Keep your Hitachi equipment running at peak performance! Our SWC-BH Double Structure Cardan Drive Shaft is engineered as a precise, high-strength replacement for original universal joints, ensuring reliable power transmission in the most demanding applications.
Built with premium 42CrMo/20Cr alloy steel and advanced quenching processes, this universal joint delivers exceptional durability and longevity under heavy loads and high-speed conditions.
Key Features:
✅ Double Cardan Structure – Provides smooth constant velocity operation at angles up to 25°
✅ Heavy-Duty Construction – Handles torque ranges from 1.25 to 1000 N.M
✅ High-Speed Capability – Rated for speeds up to 4000 RPM (with proper balancing)
✅ Flange Connection – Ensures secure mounting and easy installation
✅ Custom Colors Available – Yellow, orange, black, white and more
Perfect for:
• Steel Rolling Mills & Metal Processing
• Hitachi Construction & Mining Equipment
• Heavy Industrial Machinery
• Manufacturing Production Lines
Why Choose Our Cardan Shaft?
• Direct fit replacement for Hitachi equipment
• OEM-quality manufacturing standards
• 1-year warranty included
• Custom solutions available (OEM/ODM/OBM)
🛠️ Ready to Order?
Message us with your equipment model and specifications for pricing and delivery details!
#CardanShaft #UniversalJoint #SWCBH #HitachiParts #DoubleCardan #DriveShaft #PowerTransmission #HeavyEquipment #MiningEquipment #SteelRolling #IndustrialMaintenance #EquipmentRepair #UniversalCoupling #Manufacturing
