1.Adopt keyway to link with high strength and bearing capacity.

 2.Reliable connection and sensitive response .The bolt connection is tightly fitted with hinge holes without clearance .

 3.Strong adopt ability and smooth transmission .Can work inharsh environment,smooth transmission.

 4.Energy saving ,environmental protection and high efficiency,compared with gear coupling,it has high cost performance,good vibration clamping performance and no noise.

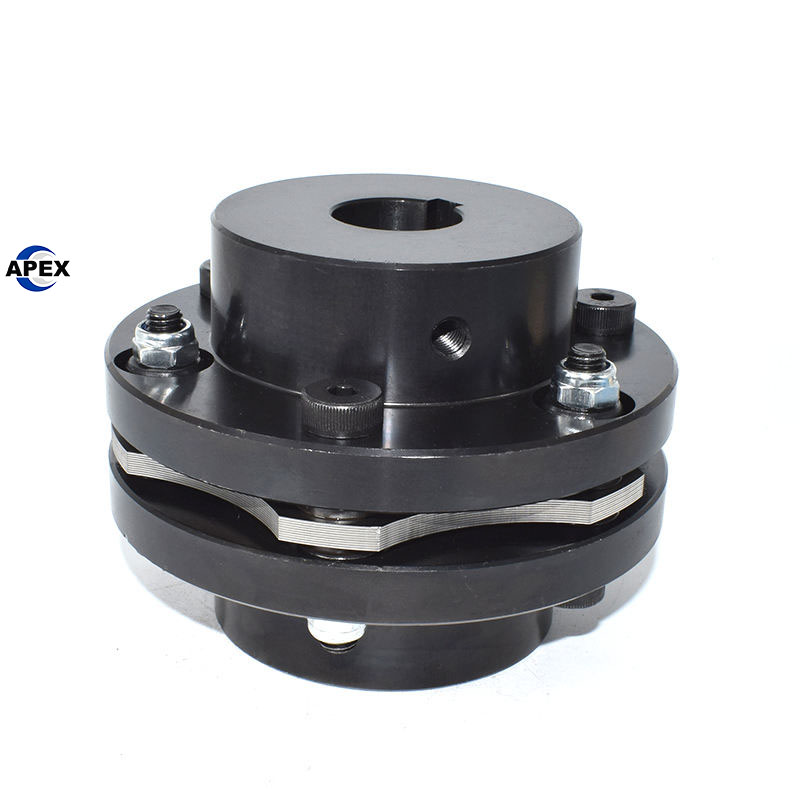

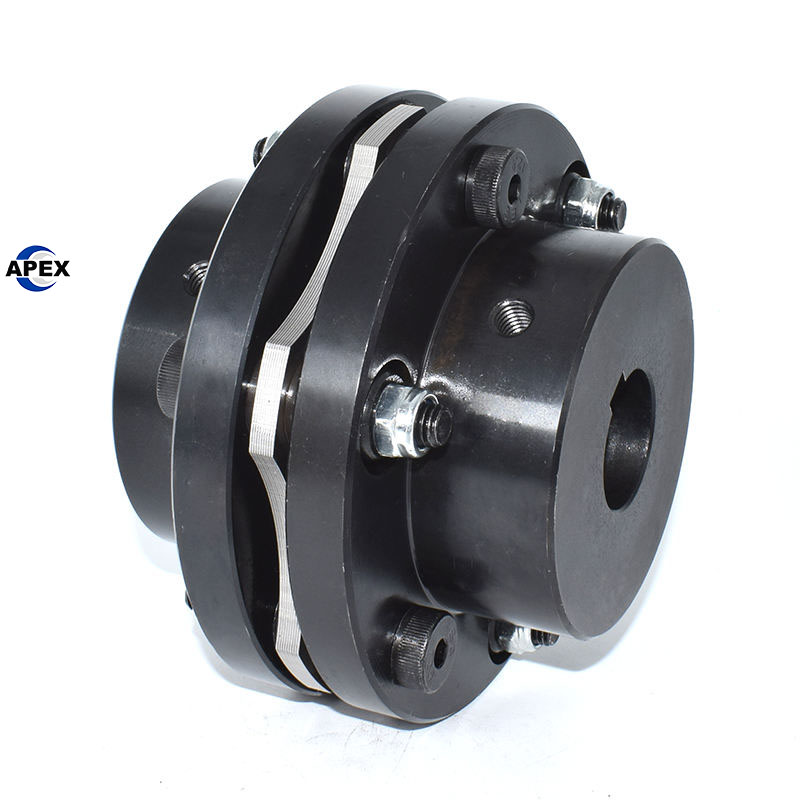

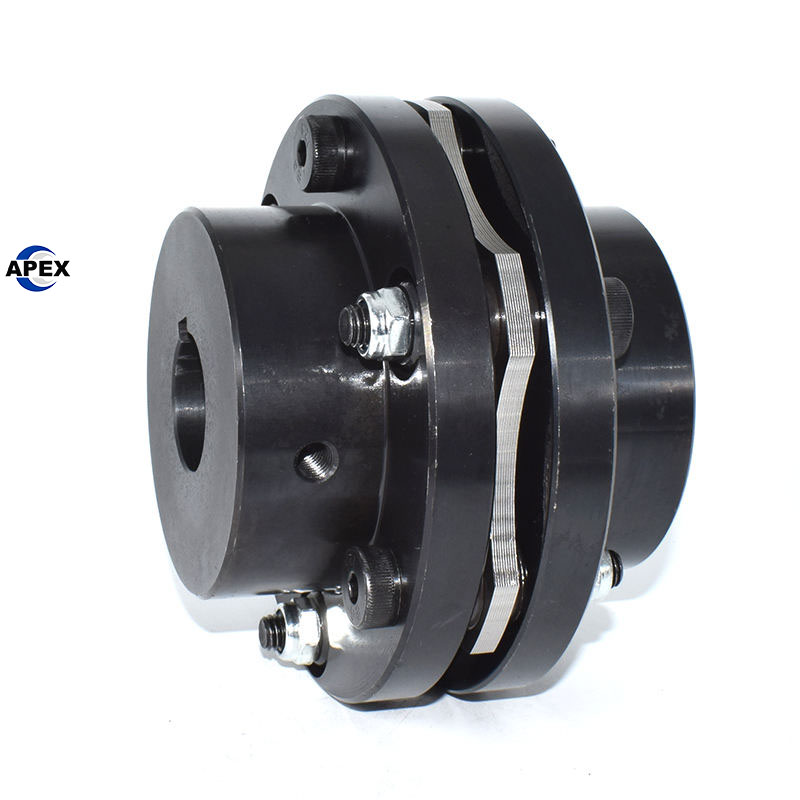

Our diaphragm coupling is engineered to provide reliable and efficient power transmission in turbo machinery and other high-performance applications. Made from high-quality steel, this coupling features a flexible steel disc structure, offering high torque capacity and excellent flexibility. It is designed to handle shaft misalignment, reduce vibrations, and minimize wear in critical machinery such as turbines, compressors, and other high-speed applications.

Ideal for use in the turbo machinery market, this coupling ensures minimal backlash and precise control of rotational motion. With customizable sizes and torque capacities, it is the perfect solution for industries such as machinery repair, energy, and manufacturing plants.

Features of the Product:

Specifications:

• Product Name: Diaphragm Coupling

• Material: Steel

• Structure: Flexible Steel Disc

• Bore Diameter: Customizable

• Torque Capacity: Customizable (based on application)

• Maximum Speed: Customizable (based on application)

• Length: 44.9mm – 731.5mm

• Outer Diameter: 57mm – 655mm

• Applications: Turbo machinery, turbines, compressors, and high-performance industrial equipment

• Customization: Available (OEM, ODM, OBM support)

• Warranty: 1 Year

• MOQ: 1 Pcs

• Delivery Time: 15-25 days

•

Product Advantages:

1. High Torque Capacity: Designed for high-performance machinery, the diaphragm coupling offers high torque capacity and superior power transmission efficiency.

2. Flexible Design: The flexible steel disc structure compensates for shaft misalignment, reducing wear and tear on connected equipment, ensuring longevity.

3. Minimal Backlash: Provides minimal backlash, which is crucial for precision control in turbo machinery and other high-speed applications.

4. Customizable Sizes: Available in a variety of sizes and torque capacities, allowing for customized solutions based on specific industrial needs.

5. Durability and Reliability: Made from high-strength steel, this coupling ensures long-lasting performance even under challenging operating conditions.

6. Suitable for High-Speed Applications: Perfect for use in turbines, compressors, and other machinery that requires high-speed operation and efficient power transmission.
