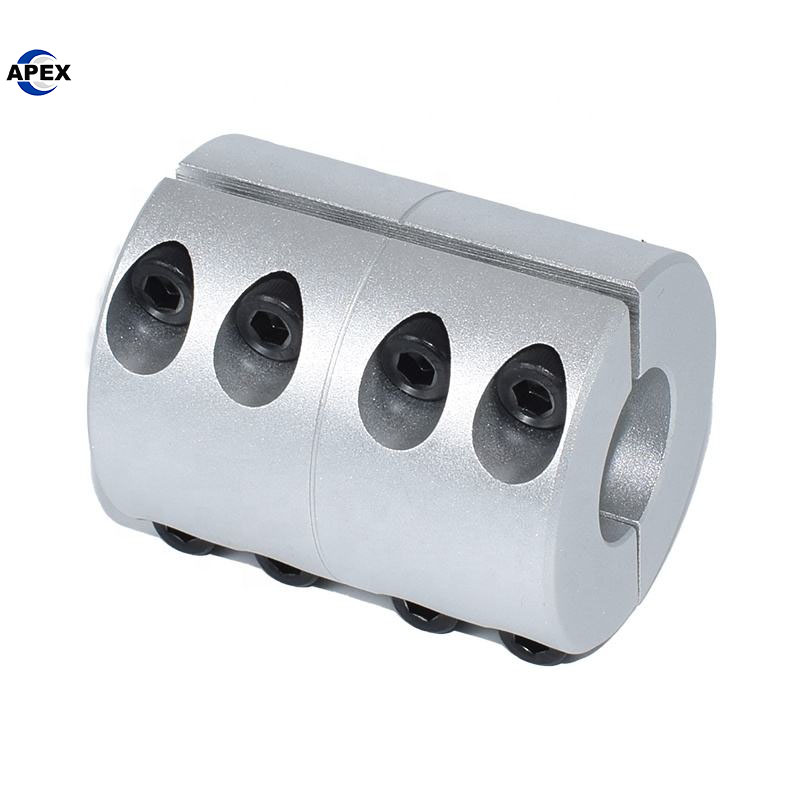

High-Strength Aluminum Rigid Coupling - Zero Backlash Clamping Coupling for Precision Motors

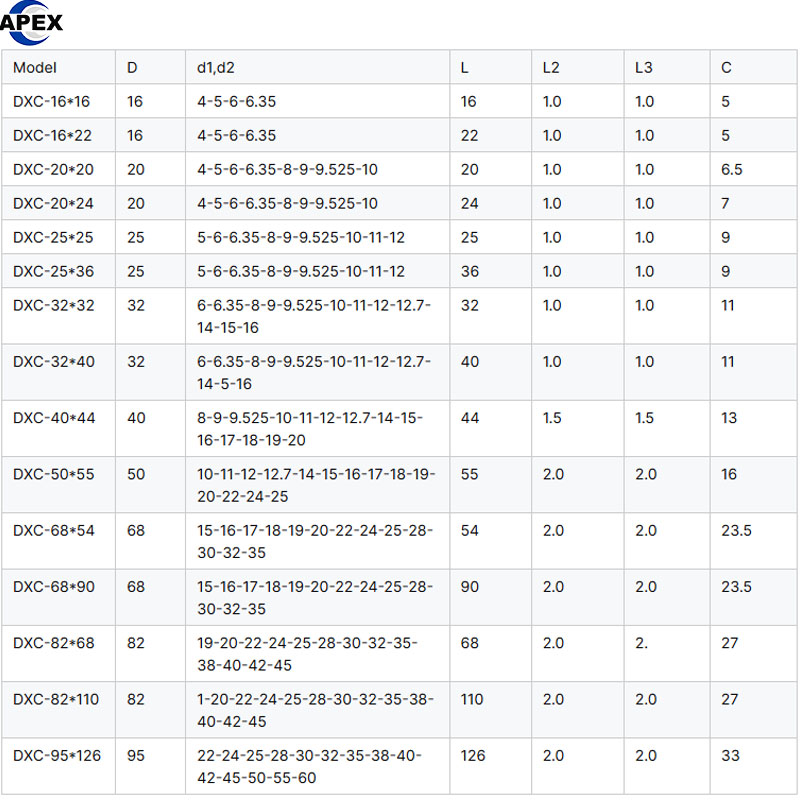

Model:
DXC-16*16
DXC-16*22
DXC-20*20
DXC-20*24
DXC-25*25
DXC-25*36
DXC-32*32
DXC-32*40
DXC-40*44
DXC-50*55
DXC-68*54
DXC-68*90
DXC-82*68
DXC-82*110
DXC-95*126
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Our aluminum rigid coupling represents the pinnacle of precision power transmission, engineered for applications requiring absolute synchronization and zero backlash. This high-strength rigid coupling is manufactured from premium aluminum alloy, offering an exceptional balance of lightweight construction and robust performance. Specifically designed for stepper motors, servo motors, and asynchronous motors, this clamping coupling ensures perfect torque transmission without any power loss or angular displacement. With a versatile inner diameter range of 4-60mm and torque capacity up to 220 N.M, this rigid shaft coupling provides reliable connectivity for precision automation equipment, CNC machinery, and robotic systems. The clamping screw tightening mechanism guarantees secure installation without damaging shafts, making it an ideal choice for applications demanding high rigidity and precise positioning.
Key Features
Zero Backlash Design: Ensures precise motion control and accurate positioning
High-Strength Aluminum Construction: Provides excellent rigidity-to-weight ratio
Wide Speed Range: Suitable for high-speed applications up to 39,000 RPM
Easy Installation: Clamping screw design allows quick assembly without shaft damage
Multiple Sizing Options: Available in inner diameters from 4mm to 60mm
Certified Quality: ISO9001 and BV certified manufacturing processes
Customization Available: OEM and ODM support for specific requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | High-Strength Aluminum Alloy |
| Type | Rigid Clamping Coupling |
| Inner Diameter Range | 4-60 mm |
| Outer Diameter Range | 16-95 mm |
| Torque Range | 1-220 N.M |
| Maximum Speed | 39,000 RPM |
| Tightening Method | Clamping Screw (Keyway Optional) |
| Certifications | ISO9001, BV |
| Applications | Stepper Motors, Servo Motors, Automation Equipment |
Advantages & Benefits
| Advantage | Benefit |
|---|---|
| Zero Backlash | Maintains precise positioning accuracy in motion control systems |
| Lightweight Design | Reduces system inertia while maintaining high torque capacity |
| High Rigidity | Ensures minimal torsional deflection under load |
| Corrosion Resistance | Aluminum construction provides durability in various environments |
| Easy Maintenance | Clamping design allows for quick disassembly and reassembly |
| Customizable | Multiple sizes and OEM options available for perfect system integration |
Applications
CNC machinery and precision automation equipment
Stepper and servo motor systems
Robotics and automated guided vehicles
3D printers and precision manufacturing equipment
Packaging machinery and textile equipment
Medical device manufacturing systems
zero backlash rigid coupling for stepper motors, high torque aluminum coupling, precision rigid shaft coupling, clamping type rigid coupling
rigid shaft coupling, aluminum motor coupling, precision coupling, zero backlash coupling, motion control coupling, servo motor coupling

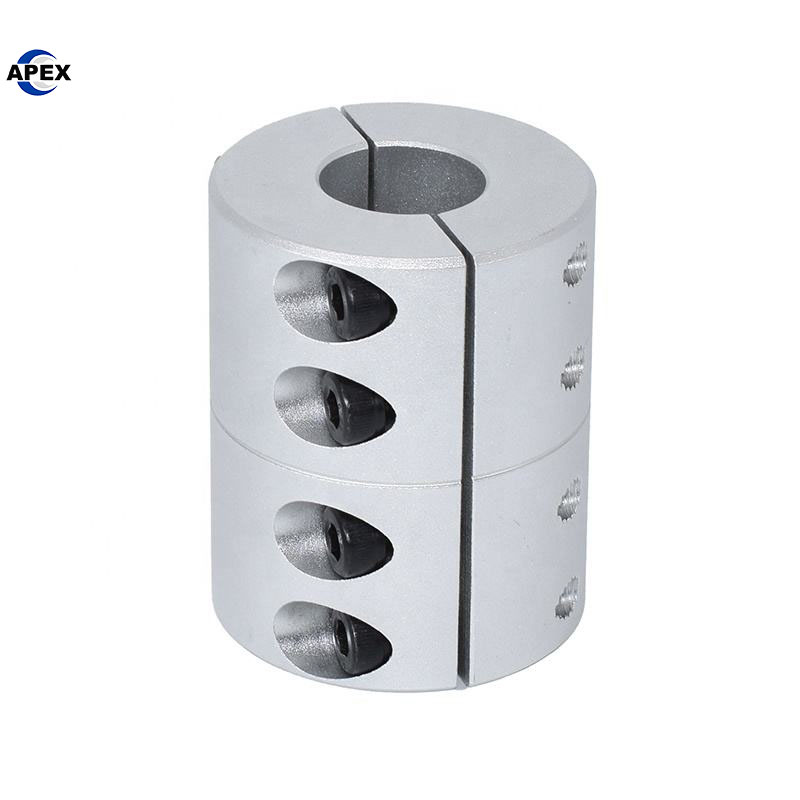

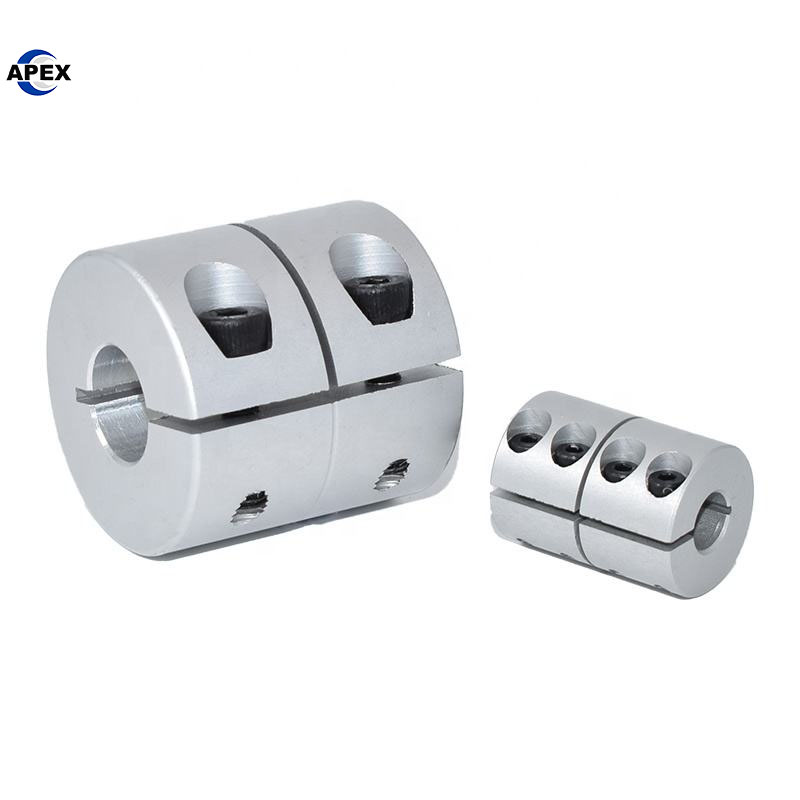

Product Show
Why choose this rigid coupling?
1. Guaranteed Precision with Zero Backlash
This rigid coupling is engineered for applications where positional accuracy is critical. It completely eliminates backlash, ensuring perfect synchronization between connected shafts. This makes it ideal for stepper and servo motors in CNC machinery, robotics, and automation systems where even minimal torsional windup can cause significant errors.
2. Optimal Strength-to-Weight Ratio
Constructed from high-strength aluminum alloy, it provides exceptional rigidity and torque capacity (up to 220 N.M) while being remarkably lightweight. This reduces the system’s moment of inertia, allowing for faster acceleration and deceleration of motors without sacrificing performance or durability.
3. Superior High-Speed Performance
With a maximum speed rating of 39,000 RPM, this coupling is built for high-speed applications. Its precision-machined balance ensures smooth, vibration-free operation even at extreme rotational speeds, protecting your sensitive bearings and other drive components.
4. Easy, Damage-Free Installation
The innovative clamping screw design ensures a secure and concentric grip on the shaft without the need for keyways, preventing fretting corrosion and shaft damage. This simplifies maintenance and allows for quick disassembly and reassembly, minimizing downtime.
