Factory Direct Sale Aluminium Timing Pulley – HTD MXL XL L S2M S3M S5M S8M 3M 5M 8M Timing Pulley
Model Number
Check below, custom
industrial Iron Timing Belt Transmission Pulleys
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Factory Direct Sale Aluminium Timing Pulley – HTD MXL XL L S2M S3M S5M S8M 3M 5M 8M Timing Pulley
Factory Direct from Guangdong, China | Aluminium Alloy | CNC Machined & CNC Turning | Anodic Oxidation | Open Timing Pulley | OEM / ODM / OBM | 3‑Year Warranty
Product Overview
The Factory Direct Sale Aluminium Timing Pulley is a high‑precision synchronous belt pulley designed for accurate transmission, constant rotation rate, and reliable performance. Manufactured by Apexcoupling in Guangdong, China, this pulley is available in a wide range of profiles including HTD, MXL, XL, L, S2M, S3M, S5M, S8M, 3M, 5M, and 8M. It is the ideal choice for roller shutter systems, hotel equipment, manufacturing plants, machinery repair shops, retail displays, construction works, and advertising machinery.
Made from high‑quality aluminium alloy with anodic oxidation surface treatment, this timing pulley offers excellent corrosion resistance, light weight, and a clean silver finish. The open timing pulley design allows for easy belt installation and compatibility with a wide range of belt widths (standard 6 mm, customizable). With CNC machining and CNC turning processes, we ensure precise tooth profiles, high concentricity, and smooth, no‑slip operation.
As a factory direct supplier, we offer full customization: bore diameter, pitch diameter, number of grooves, width, outside diameter, and overall size can all be tailored to your exact requirements. Whether you need a standard replacement or a fully custom pulley for OEM production, Apexcoupling delivers reliable quality, competitive pricing, and fast turnaround. Backed by a 3‑year warranty, our timing pulleys are built for long‑term performance.
📧 Get a Quote: ella@apexcoupling.com
Key Attributes
| Attribute | Value |
|---|---|
| Type | Timing |
| Bore Diameter | Customized |
| Pitch Diameter | Customized |
| Material | Aluminium |
| Width | Customized |
| Outside Diameter | Customized |
| Applicable Industries | Hotels, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works, Advertising Company |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Place of Origin | Guangdong, China |
| Brand Name | Apexcoupling |
| Product Name | Aluminium Timing Belt Pulley |
| Color | Silver |
| Surface Treatment | Anodic Oxidation |
| Item | Aluminium Pulley |
| Process | CNC Machining, CNC Turning |
| Size | Customized Sizes |
| Timing Pulley Type | Open Timing Pulley |
| Usage | Roller Shutter |
| Packing | Poly Bag |
| Belt Width | 6 mm |
Available Timing Pulley Profiles
Apexcoupling manufactures a wide range of aluminium timing belt pulleys. Standard profiles include:
HTD – 3M, 5M, 8M
MXL, XL, L
S2M, S3M, S5M, S8M
T2.5, T5, T10, AT5, AT10
GT2, GT3
Custom tooth profiles according to your drawing or sample
If you need a profile not listed here, please contact us. We can produce custom aluminium timing pulleys based on your requirements.
Key Features
| Feature | Benefit |
|---|---|
| High‑Quality Aluminium Alloy | Lightweight, corrosion‑resistant, and durable |
| Anodic Oxidation Surface Treatment | Standard finish for improved corrosion resistance |
| Silver Color | Clean, professional appearance; custom colors available |
| CNC Machining & CNC Turning | Accurate tooth profile, smooth operation, high consistency |
| Open Timing Pulley Type | Easy belt installation and replacement |
| Custom Bore, Pitch Diameter, Width & Outside Diameter | Fully customizable to match your design |
| Custom Number of Grooves | Flexible drive ratios and speed requirements |
| No Slip, Accurate Transmission | Constant rotation rate during operation |
| High Concentricity | Reduces vibration and ensures stable power transmission |
| Poly Bag Packing | Standard protective packaging; custom packaging available |
| OEM / ODM / OBM Support | Custom drawings, samples, and branding accepted |
| 3‑Year Warranty | Quality assurance and reliable after‑sales support |
| Factory Direct | Competitive pricing and stable supply from China |
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Aluminium Timing Belt Pulley |
| Brand Name | Apexcoupling |
| Type | Timing Pulley |
| Timing Pulley Type | Open Timing Pulley |
| Available Profiles | HTD (3M, 5M, 8M), MXL, XL, L, S2M, S3M, S5M, S8M, T2.5, T5, T10, AT5, AT10, GT2, GT3 |
| Material | Aluminium Alloy |
| Bore Diameter | Customized |
| Pitch Diameter | Customized |
| Number of Grooves | Customized |
| Width | Customized |
| Outside Diameter | Customized |
| Belt Width | 6 mm (customizable) |
| Size | Customized Sizes |
| Surface Treatment | Anodic Oxidation |
| Process | CNC Machining, CNC Turning |
| Color | Silver (custom colors available) |
| Usage | Roller Shutter, Hotels, Manufacturing, Retail, Advertising, Construction |
| Packing | Poly Bag |
| Place of Origin | Guangdong, China |
| Applicable Industries | Hotels, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works, Advertising Company |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
Customization Options
We offer complete customization for aluminium timing belt pulleys:
Custom teeth quantity and number of grooves
Custom bore diameter, pitch diameter, outside diameter, and width
Keyway, set screw, and flange options
Aluminium alloy, stainless steel, iron, and other materials
Surface treatments: anodic oxidation, black oxide, zinc plating, nickel plating, polishing
Custom colors: silver, black, or any specified color
Laser marking / custom logo
Custom packaging
OEM / ODM / OBM with your branding
Drawing‑based production
📧 Send your drawing or requirements to: ella@apexcoupling.com
Applications
The factory direct aluminium timing pulley is widely used in:
Roller Shutter Systems – Smooth and reliable operation
Hotels – Automated curtains, blinds, and door systems
Manufacturing Plants – General industrial drive systems
Machinery Repair Shops – Replacement and custom parts
Retail Displays – Automated shelving and promotional equipment
Construction Works – Light construction machinery and equipment
Advertising Company – Rotating displays, signage, and promotional equipment
Automation Equipment – Factory automation, robotics, and conveyors
CNC Machines – Accurate positioning and transmission
Packaging Machinery – High‑speed synchronous drives
3D Printers – Precision motion control
Why Choose Apexcoupling?
🏭 Factory Direct in Guangdong, China – Integrated manufacturing and trading, competitive pricing
🔩 Premium Aluminium Alloy – Lightweight, corrosion‑resistant, and durable
⚙️ CNC Precision Machining – Accurate tooth profile and high concentricity
📐 Full Customization – HTD, MXL, XL, L, S2M, S3M, S5M, S8M, 3M, 5M, 8M and more; custom bores, widths, teeth, and materials
🧾 OEM / ODM / OBM Support – Drawing‑based production and custom branding
📦 Fast Delivery – Factory stock and efficient production for urgent orders
✅ 3‑Year Warranty – Quality assurance and reliable after‑sales support
💬 Expert Technical Support – We help you select the correct timing pulley for your application
Get a Quote Today
Ready to order or need more information? Contact us directly:
📧 Email: ella@apexcoupling.com
We reply within 24 hours with pricing, availability, and technical recommendations.
Product Tags: aluminium timing pulley, HTD timing pulley, MXL XL L timing pulley, S2M S3M S5M S8M timing pulley, 3M 5M 8M timing pulley, factory direct timing pulley, custom aluminium timing pulley, CNC machined timing pulley, open timing pulley manufacturer, roller shutter timing pulley
HTD timing pulleyMXL XL L timing pulleyS2M S3M S5M S8M timing pulley3M 5M 8M timing pulleyfactory direct timing pulleyCNC machined timing pulleyopen timing pulley manufacturer
Product Show

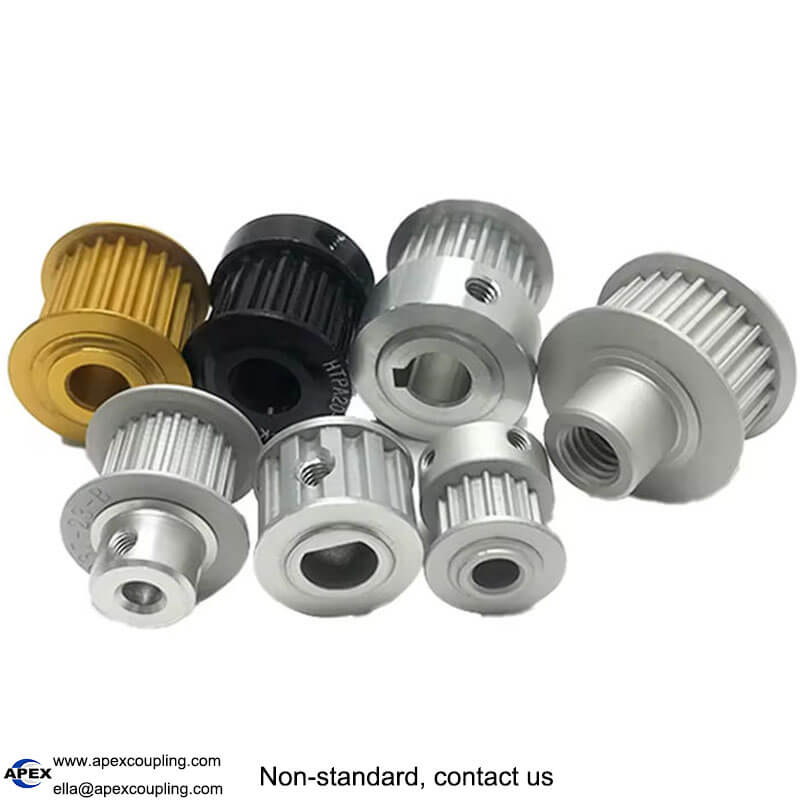

aluminium timing pulley
