Introduction

In precision mechanical engineering, maintaining reliable torque transfer through steep spatial angles is a demanding problem. Traditional flexible couplings quickly stress and fail when subjected to severe multi-axis misalignment. For systems that run at steep angles—such as automated manufacturing feeds, material handling lines, and custom packaging systems—engineers rely on the rugged layout of the WX and WXD Precision Cross-Shaft Universal Joint.

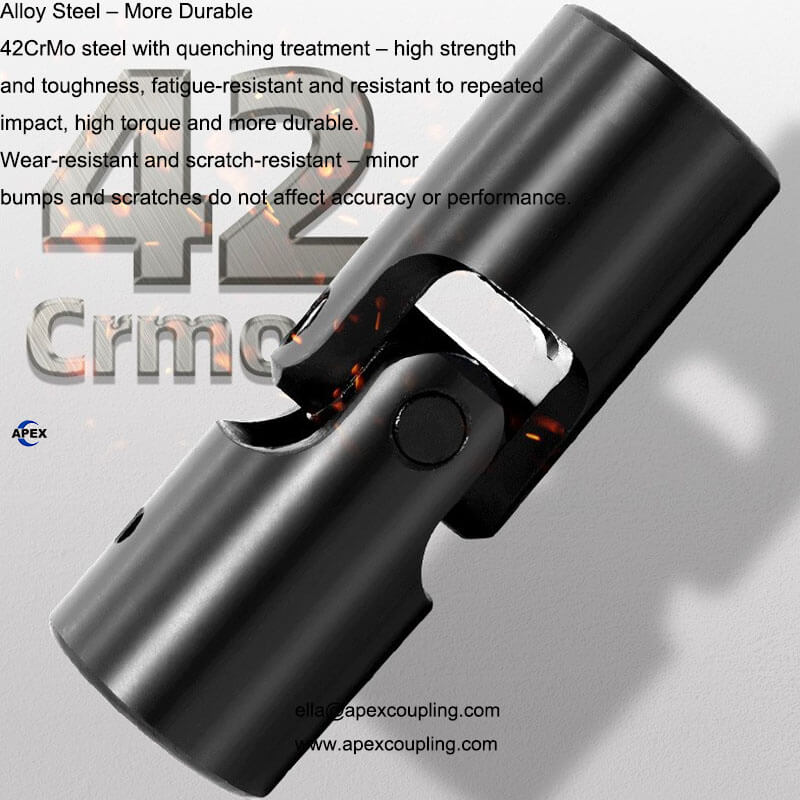

1. Material Longevity: Sizing Quenched 42CrMo Steel Against Shock Loading

Small universal joints endure intense concentrated forces because torque is transferred through a compact internal cross-journal pin. Standard mild carbon steels can warp or yield under sudden torque spikes, creating mechanical backlash. Our WX and WXD series resolves this by using premium structural 42CrMo alloy steel. The entire yoke assembly is subjected to an advanced thermal quenching process, giving the steel high core toughness and a hard exterior surface. This ensures the joint absorbs repeating shock loads, high starting torques, and everyday mechanical impacts without losing dimensional accuracy or experiencing material fatigue.

2. Managing Misalignment with 40° Angular Compensation

A major benefit of the cross-shaft design is its impressive angular capability. The single-joint WX series accommodates manual or dynamic offsets up to 40° per section. This extensive range allows engineers to design space-saving layouts with non-parallel shafts. Furthermore, because these yokes are machined to be compact, they feature low rotational inertia. This keeps the coupling highly responsive, making it an excellent match for precise start-stop drives and indexing motion loops.

3. Eliminating Shaft Play via H7 Precision Bores and Keyways

High angular deflection can introduce vibration if the shaft connection is loose or eccentric. To ensure smooth, stable power transfer, our factory holds internal bore tolerances to a strict H7 specification. To secure the connection against high-torque slip, the hubs are cut with a standard parallel keyway and reinforced with a heavy-duty set screw. This dual locking arrangement provides a rock-solid, zero-slip attachment, dampening mechanical noise and protecting your shafts under high-frequency reversing loads.

4. Partnering with a Direct Source Factory for Non-Standard Components

Standard catalog hardware often falls short when designing specialized machinery or matching existing space limitations. Modifying standard joints yourself can compromise balance and reliability. Partnering with an integrated industry and trade manufacturer like Apexcoupling gives you direct access to scalable, custom manufacturing. From specialized length spans and non-standard outer diameters to unique torque tolerances, our production lines supply custom, print-ready components straight to your facility, lowering supply chain overhead.

Quenched 42CrMo Toughness. 40° Flex Adjustment. 100% Custom Tailored Precision. ⚙️💪

Are standard catalog couplings failing or throwing off your drivetrain’s tracking because they can’t handle steep angular offsets or heavy starting torque? Get a perfect fit for your machinery with the Custom WX & WXD Precision Cross-Shaft Universal Joints by Apexcoupling!

Engineered for rugged durability, these compact alloy steel joints handle demanding non-standard applications without missing a beat.

✅ Quenched 42CrMo Alloy Steel: Thermally hardened steel bodies deliver exceptional structural strength and fatigue resistance under repeating torque spikes.

✅ High-Flex 40°  Compensation: Easily bridges steep angular misalignments up to 40° for a single section, making space-saving machinery layouts possible.

✅ Micro-Backlash & Low Noise: Tight internal manufacturing clearances keep power transmission smooth, highly accurate, and quiet in all directions.

✅ Strict H7 Bored Tolerances: CNC-finished to exact H7 internal tolerances to ensure high concentric alignment and prevent high-speed vibration.

✅ Secure Keyway & Set Screw Fitting: Dual-locking engagement keeps the connection rigid and reliable under aggressive start-stop cycles.

✅ Fully Non-Standard Customization: Need a specific length, custom outer diameter, or unique bore size? Our factory builds components directly from your prints!

Optimized for Custom Machine Tool Infeeds, Automated Industrial Drives, Packaging Assembly Lines, Specialized Textile Rollers, and Precision Indexing Tables.

Stop compromising with standard hardware that doesn’t quite fit your application. Apexcoupling offers direct factory-wholesale pricing, professional quality control, and complete blueprint-based OEM/ODM custom manufacturing to simplify your component sourcing. 🌍📦

📩 Let’s build your ideal drivetrain link. Send your custom length, bore, and torque requirements to our foreign trade engineering team today for a fast quote!

Inquiry: www.apexcoupling.com
