Introduction In industrial drive design, transferring rotational force through angled components is a common requirement. In machinery repair, agricultural equipment, and packaging lines, driving and driven shafts are rarely perfectly aligned. When rigid couplings are forced to operate through these alignment errors, they generate high cyclic stresses that can cause shaft fatigue, bearing failure, and unexpected downtime. Using an articulated transmission component like the Factory-Made Flexible Steel Cross Shaft Universal Joint Coupling addresses this issue. This technical article reviews the mechanics of cross-shaft cardan joints and explains how 42CrMo alloy steel metallurgy provides long-term reliability in high-torque applications.

1. Mechanical Principles of Flexible Cross-Shaft Articulation A cross-shaft universal joint utilizes a central four-point spider core positioned between two matching drive yokes. This configuration allows the coupling to transmit continuous torque through a pivoting mechanical connection while accommodating angular misalignments. By acting as a flexible pivot point, the cardan joint prevents bending moments from transferring along the drive shaft, protecting sensitive gearboxes and motor bearings from excessive wear.

2. Material Selection: The Fatigue Resistance of 42CrMo Steel As shown in the technical profile in image_6cdd26.png, the yokes of our universal joints are made from premium 42CrMo alloy steel. Cardan joint ears face intense alternating tensile and compressive loads during every rotation through an angle. Lower-grade carbon steels can quickly develop micro-fractures under these conditions, leading to early component fatigue. The high chromium and molybdenum content of 42CrMo provides excellent core toughness and high yield strength. This ensures the coupling can handle a wide torque range from 11.2 to 1120 N·m and resist sudden shock loads without fracturing.

3. Torque Densities and Velocity Limits: Operability at 3,000 RPM

High-speed drivelines require precise manufacturing tolerances to prevent destructive harmonic vibrations. If a universal joint has minor centering errors or weight imbalances, operating at high speeds will generate centrifugal forces that accelerate bearing wear. Our flexible steel universal joints are precision-machined according to National Standard guidelines, ensuring true concentricity. This balance allows standard configurations to operate reliably at speeds up to 3,000 RPM while continuously transferring 300 N·m of rated torque.

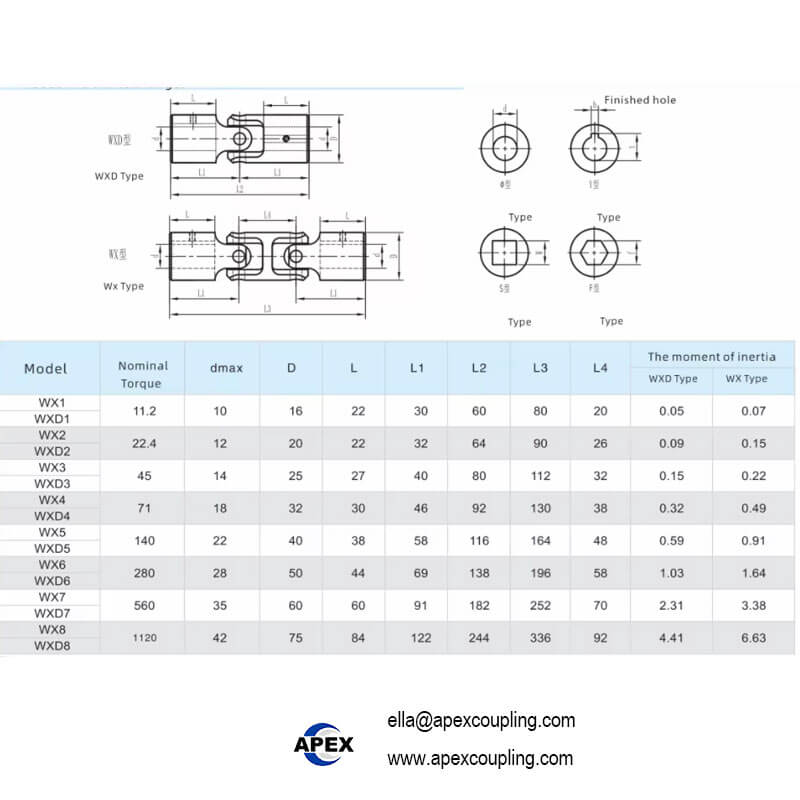

4. Sizing Matrices and Fitting Tolerances (d1- d2)

Securing a reliable shaft connection requires matching the coupling dimensions to the operational load and shaft diameter. To support a wide variety of industrial equipment, our universal joints feature an adaptable sizing grid:

• Outer Diameters: Available from 16mm to 75mm to fit compact equipment housings.

• Bore Sizes (d1 – d2): Ground from 10mm to 42mm (including a standard 30mm bore) to ensure a precise, secure fit on standard industrial shafts.

5. Sourcing Certified OEM and Custom Machinery Components Industrial equipment often requires non-standard configurations, specialized keyways, or unique overall dimensions that off-the-shelf parts cannot accommodate. Partnering directly with an established, integrated manufacturer like Apexcoupling simplifies this sourcing process. Operating out of our advanced plant in Guangdong, China, our teams utilize ISO9001 and BV certified quality control systems to provide full OEM, ODM, and OBM custom services—delivering reliable hardware tailored exactly to your technical drawings with an accessible 1 Pcs MOQ.
