Introduction In high-speed CNC milling spindles, precision semiconductor positioning stages, and synchronized print packaging equipment, drive shafts face rapid acceleration and frequent direction changes. When traditional keyed couplings handle these rapid changes, the repetitive forward and reverse impact concentrates heavy stress on the sides of the keyway. Over time, this concentrated force causes the keyway slot to widen, introducing tiny timing shifts and rotational play that can ruin processing accuracy. Specifying a keyless friction assembly like the DLZG Series Stainless Steel Jaw Coupling with Expansion Sleeve eliminates this issue. This technical brief reviews how combining keyless expansion sleeves with H7 precision-ground tolerances stops rotational play and protects sensitive high-speed drivetrains.

1. The Mechanics of Friction-Clamped Expansion Sleeves Traditional couplings rely on a single metal key to transfer rotational force. The expansion sleeve design replaces this setup by using a tapered wedge geometry. When the axial locking screws are tightened, the internal sleeve shrinks around the shaft while the outer sleeve expands firmly into the hub bore.

• Uniform Force Distribution: This mechanical movement creates a highly secure friction grip around the entire 360-degree surface of the shaft.

• Eliminating Concentrated Stress: By spreading the load evenly, the design prevents localized stress concentrations, allowing the coupling to reliably transfer high torque loads on smooth, keyless shafts without slipping.

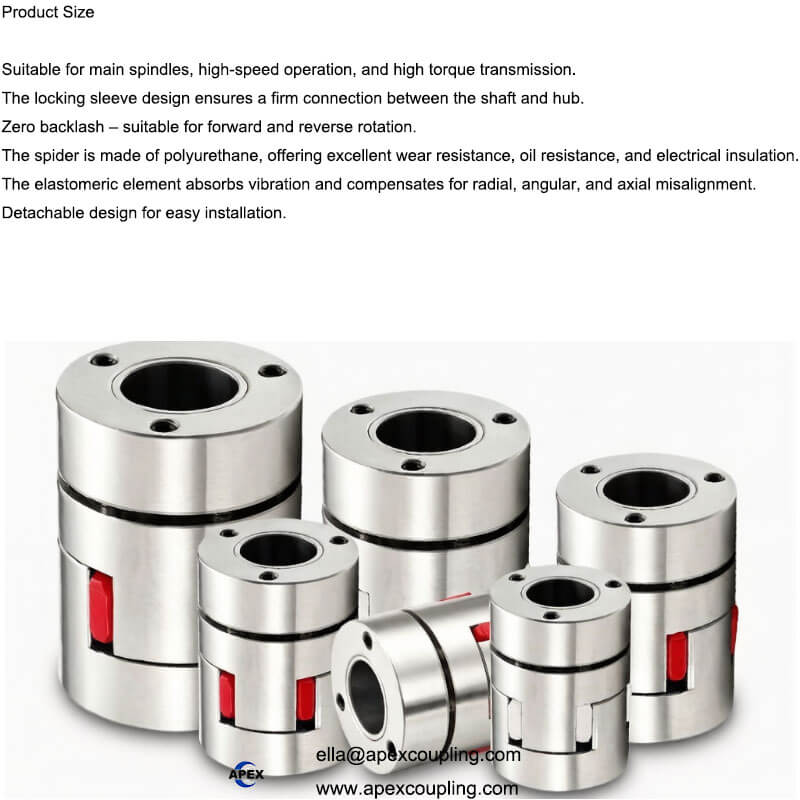

2. Polymer Dynamics: The Role of Imported German Polyurethane Inserts A zero-backlash drive line must be rigid enough to maintain exact positioning while remaining flexible enough to protect adjacent bearings from alignment errors. The DLZG series balances these needs by using a specialized German-imported polyurethane curved star element.

• Vibration Absorption: This elastic cushion insert acts as a reliable mechanical damper, absorbing high-frequency vibrations from the motor before they reach sensitive components.

• Excellent Resilience: The advanced polymer composite resists degradation from oils, grease, and heat, maintaining stable positioning accuracy and clean electrical insulation across long production cycles.

3. True Concentricity and High Speeds with H7 Bore Tolerances When operating at high rotational speeds, even tiny alignment offsets can cause serious vibration. If an internal hub bore is out of tolerance by a few microns, the resulting off-center rotation creates cyclic forces that accelerate wear on spindle bearings and seals. By maintaining a strict H7 finished hole tolerance, our jaw couplings deliver a true, well-balanced fit. This precise concentricity minimizes runout, controls vibration, and ensures smooth operation during high-speed production runs.

4. Versatile Cross-Industry Application Profiles Because the keyless expansion design handles high speed and constant direction reversals reliably, the DLZG series is widely used across advanced manufacturing sectors:

• Semiconductor and Solar Equipment: Delivers smooth, zero-backlash movement needed for precise micro-positioning and silicon wafer handling.

• Food Packaging and Pharmaceutical Lines: The clean stainless steel body and oil-resistant polymer inserts stand up well to clean-in-place maintenance and regular washdowns.

5. Sourcing Large-Scale Custom Solutions with Apexcoupling Advanced machine builds and specialized manufacturing plants often require non-standard dimensions, unique bore profiles, or custom lengths that off-the-shelf parts cannot match. Partnering directly with an established manufacturer like Apexcoupling simplifies this sourcing process. As shown in our catalog details in jaw coupling, our production plant provides full OEM and ODM services—manufacturing custom configurations like DLZG-80*114, DLZG-95*126, and DLZG-105*140 built exactly to your engineering prints.
