Introduction In modern precision automation—such as CNC machine tool feeds, semiconductor assembly robots, and multi-axis packaging systems—the coupling connecting the servo or stepper motor to the ball screw is a critical performance link. If this connection lacks sufficient torsional stiffness or suffers from minute mechanical backlash, it causes positioning errors, system hunting, and poor surface finishes during machining. For high-torque applications where aluminum couplings might stretch or slip, the industry standard is the 45# Steel Metallic Diaphragm (Disc) Coupling.

1. Mechanical Comparison: DSG Single Disc vs. DLG Double Disc Dynamics Metallic disc couplings operate by transferring torque through a pack of thin, flexible stainless steel sheets clamped tightly between the hubs. However, the number of disc packs determines how the coupling handles misalignment:

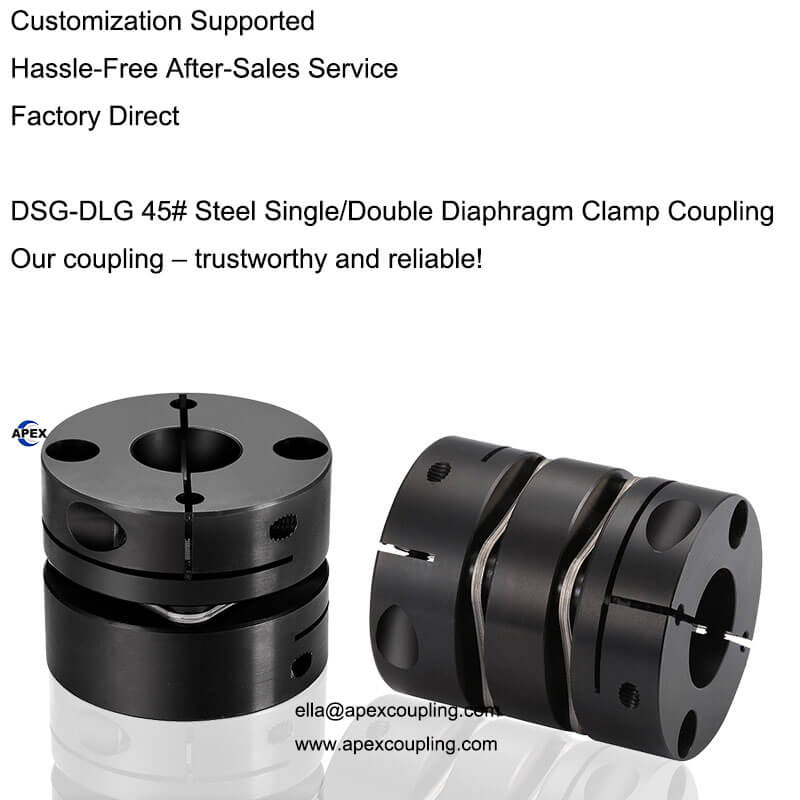

• Single Diaphragm Couplings (DSG Type): Feature a single disc pack clamped between two hubs. This ultra-compact profile offers high torsional stiffness but can only accommodate angular and axial misalignment—it cannot handle parallel offset without generating heavy bearing reaction loads.

• Double Diaphragm Couplings (DLG / DLZ Type): Utilize two separate disc packs separated by a central spacer hub. This configuration allows the two disc packs to flex in opposite directions, enabling the coupling to absorb significant parallel misalignment alongside angular and axial variations.

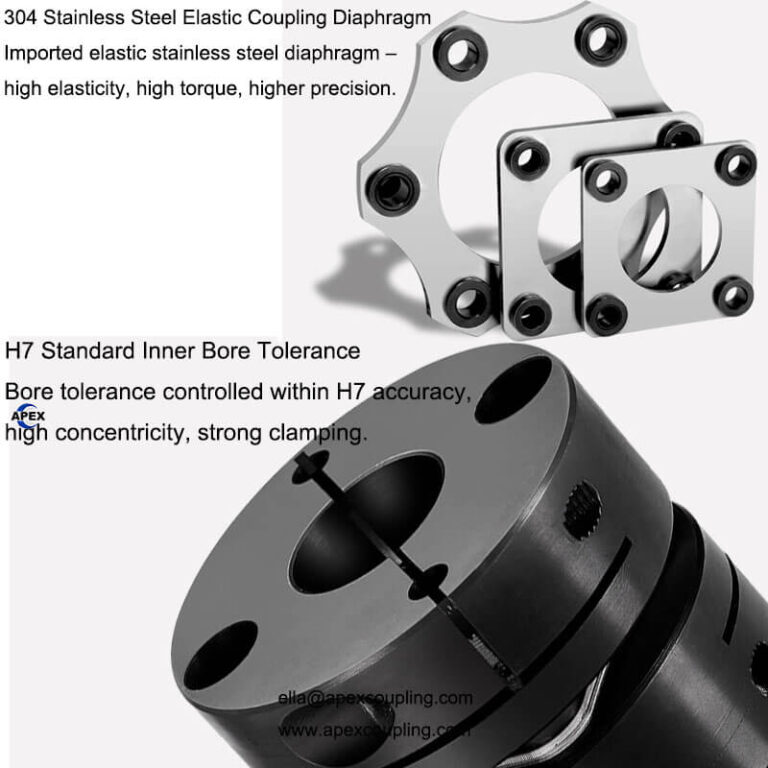

2. Metallurgy of the Assembly: Forged 45# Steel and SUS304 Discs High-performance servo motors generate intense startup torque and rapid reversing cycles that can quickly stress standard materials. To handle these demands, our coupling hubs are forged from premium 45# carbon steel, providing excellent structural strength and fatigue limits under repeating reversing cycles. The flexible disc elements are made from imported SUS304 spring stainless steel, selected for its high elasticity and tensile capacity. This ensures the diaphragms flex repeatedly over millions of cycles without cracking or losing their original spring memory.

3. Achieving Zero Backlash via Clamping Screws and Expansion Bushings Traditional keyway connections can develop minute clearance or wallowing over time when subjected to high-frequency reversing, leading to mechanical backlash. Our diaphragm couplings solve this issue by using friction-style split-hub clamping screws or integrated expansion locking assemblies. These designs use the elastic deformation of the steel hub to clamp the shaft with high surface pressure, ensuring a perfectly tight, zero-backlash connection. Combined with a precision H7 finished bore tolerance, this exact fitment guarantees excellent concentric alignment and vibration-free operation up to high speeds.

4. Clear Part Number Systems for Seamless Global Sourcing Standardizing your components is essential for maintaining efficient maintenance inventories and lowering global logistics overhead. Our diaphragm series uses a straightforward marking system: DLZ45-Outer Diameter x Length – d1Bore x d2Bore. If your application requires a fallback safety keyway alongside the friction clamp, simply append a “K” to the bore dimension (e.g., 14k x 15k) for a fully customized, dual-locking layout. Backed by Apexcoupling’s advanced mechanical foundry, we support full OEM and ODM production schedules, supplying ready-to-install, export-grade components directly from our factory floor to maximize your production uptime.

Forged 45# Steel Strength. SUS304 Flexible Discs. 100% Zero-Backlash Precision. ⚙️⚡

Are your high-torque servo motors or CNC feed shafts slipping or causing positioning errors due to weak aluminum joints? Eliminate wind-up and protect your precision tracking with the DLZ, DSG & DLG Series High-Torque Diaphragm Couplings by Apexcoupling!

Engineered specifically for demanding motion-control applications, these high-rigidity steel disc couplings provide exceptional accuracy and long-term durability.

✅ Quenched 45# Steel Hubs: High-strength steel bodies handle massive peak torques and rapid reversing cycles without structural deformation.

✅ SUS304 Stainless Steel Discs: Premium imported spring diaphragms flex cleanly to compensate for angular, axial, and parallel shaft errors.

✅ True Zero-Backlash Clamping: Friction-style clamping screws and integrated expansion bushes ensure rigid, identical clockwise and counterclockwise rotation. ✅ H7 Precision Machining Bores: Every inner hub is finished to a strict H7 tolerance, guaranteeing tight concentricity and eliminating high-speed shaft wobble.

✅ Single & Double Disc Versatility: Choose DSG single-disc profiles for compact stiffness, or DLG double-disc layouts to handle larger parallel misalignments.

Optimized for CNC Machine Tool Feeds, Precision Ball Screws, Semiconductor Manufacturing Tables, Automated Packaging Machinery, and High-Speed Printing Drives.

Review our full technical part-numbering guide (including standard keyway “K” options) right inside image_53afaa.png! Apexcoupling provides factory-direct wholesale pricing, fast global shipping, and comprehensive blueprint-based OEM/ODM manufacturing to reduce your component costs. 🌍📦

📩 Maximize your positioning accuracy today. Contact our foreign trade engineering team with your target outer diameters and bore dimensions for an immediate quote!
