🔸 Introduction
In precision motion control systems, choosing the right coupling is essential. Two popular options are beam couplings and diaphragm couplings.

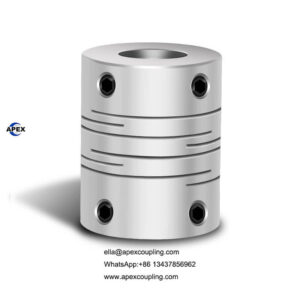

🔸 What Is a Beam Coupling?
A beam coupling uses a helical cut structure to provide flexibility and zero backlash while maintaining torque transmission.
🔸 What Is a Diaphragm Coupling?
A diaphragm coupling uses metal discs to achieve high torsional stiffness and zero backlash.
🔸 Key Differences
| Feature | Beam Coupling | Diaphragm Coupling |
|---|---|---|
| Flexibility | High | Medium |
| Precision | High | Very high |
| Damping | Good | Low |
| Cost | Lower | Higher |
🔸 Which One to Choose?
- Choose beam coupling for encoder and light load precision systems
- Choose diaphragm coupling for high torque and ultra precision
🔸 Conclusion
Beam couplings are widely used in encoder applications due to their flexibility and zero backlash performance.
🔸 CTA
📩 Need help selecting the right coupling? Contact Apexcoupling today.
