🔸 Product Overview

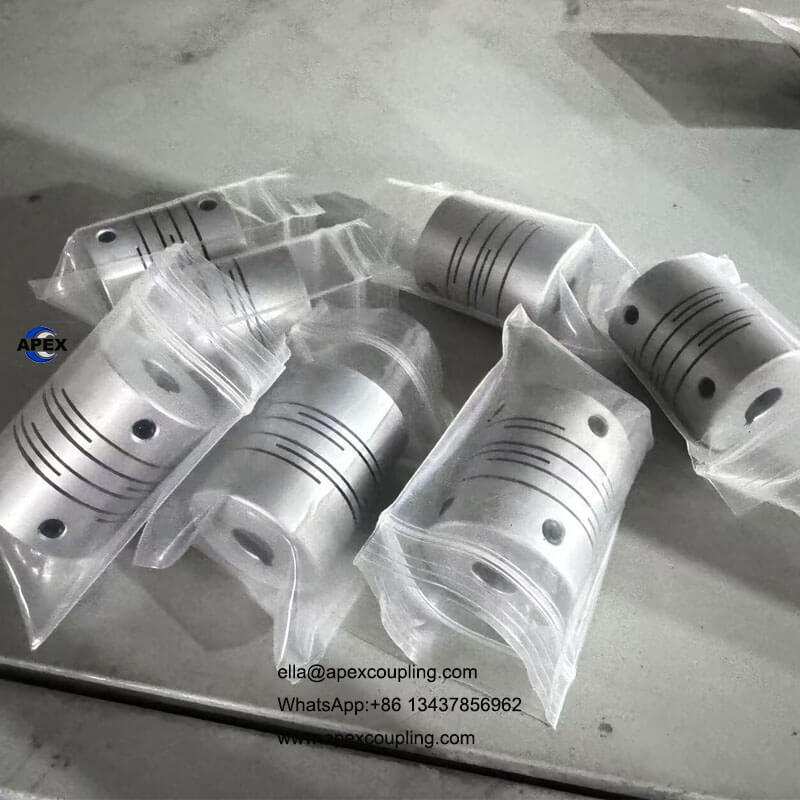

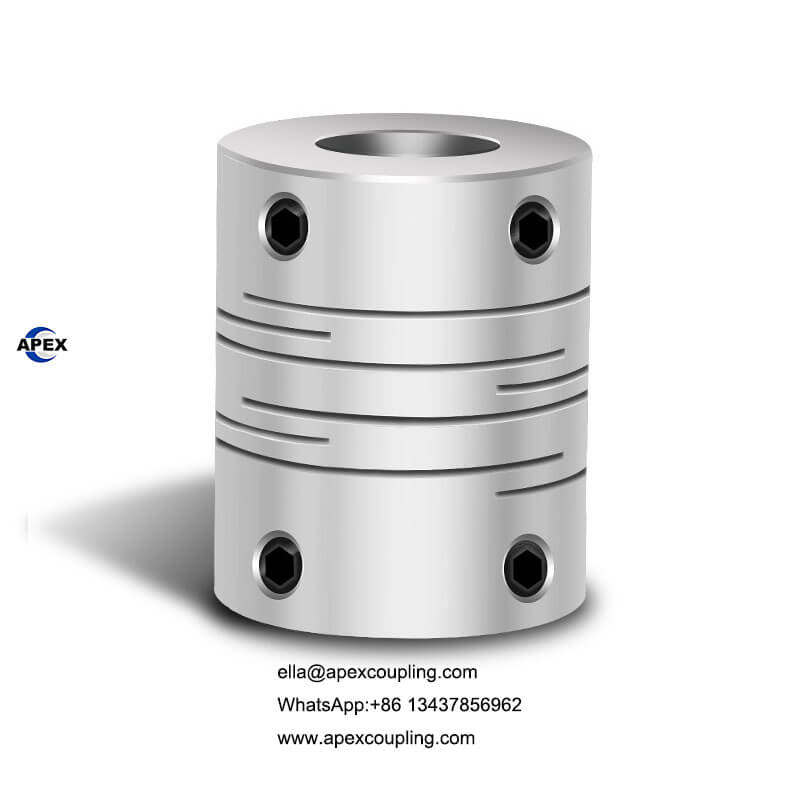

The aluminum beam coupling is a high precision flexible shaft coupling designed for encoder and servo motor applications requiring zero backlash and excellent motion control accuracy.

With a helical slit structure, this coupling provides superior flexibility while maintaining torsional rigidity.

🔸 Key Features

• Zero Backlash Transmission
  Ideal for encoder and precision motion systems
• Helical Beam Design
  Provides flexibility and smooth torque transmission
• High Strength Aluminum Alloy
  Lightweight, durable, and corrosion-resistant
• High Precision H7 Bore
  Ensures perfect shaft alignment
• Excellent Vibration Damping
  Absorbs misalignment and shock
• Compact One-Piece Structure
  Easy installation and maintenance-free

🔸 Technical Specifications

🔸 Performance Advantages

• High torsional stiffness
• Low inertia for fast response
• Suitable for high-speed applications
• Stable and precise positioning

🔸 Applications

• Encoder systems
• Servo motors
• CNC machines
• Robotics
• Automation equipment

🔸 Customization

• Bore size & tolerance
• Shaft type (clamp / set screw)
• Outer diameter & length
• Special material or coating

🔸 FAQ

Q1: What is a beam coupling used for?
It connects shafts in precision systems with zero backlash.

Q2: Why is it suitable for encoders?
Because it ensures accurate signal transmission without play.

Q3: Does it absorb vibration?
Yes, the helical structure provides flexibility and damping.

Q4: Can it be customized?
Yes, full customization is supported.

🔸 CTA

📩 Contact Apexcoupling for high precision beam coupling solutions.
