I. Understanding the Telescopic Requirement

In many industrial setups, the distance between the drive motor and the driven equipment is not fixed. The WSP Type Telescopic Universal Joint is the engineering solution for these scenarios, providing a sliding stroke that maintains power transmission even as the axial distance changes.

II. Material Excellence: The 42CrMo Advantage

Why 42CrMo? Unlike standard carbon steels, 42CrMo alloy steel offers superior hardenability. After heat treatment, it provides the “muscle” needed for high-torque applications (rated at 20.1) while maintaining the “flexibility” to resist cracking under multiple impact loads.

III. Precision and the H7 Standard

Vibration is the enemy of any coupling. By controlling the inner bore tolerance to the H7 standard, the WSP joint ensures high concentricity. This precision reduces the load on the motor bearings and significantly lowers operating noise, even at speeds up to 2000 RPM.

IV. Designing for Maximum Compensation

With a maximum angular limit of 45 degrees, the WSP series is one of the most versatile couplings for compensating for misalignment. Whether you are dealing with significant angular deviations or radial offsets, the cross-shaft design maintains high torsional stiffness throughout the rotation.

Headline: Variable Distance? No Problem. ⚙️ Discover the WSP Telescopic Universal Joint.

Body: Industrial layouts are rarely simple. When your shafts change distance or your angles are extreme, you need a coupling that adapts.

At Apex Coupling, our WSP Type Precision Telescopic Universal Joints are designed to bridge the gap—literally.

Why engineers in Europe, the Middle East, and the Americas trust the WSP series:

✅ Adaptive Reach: Integrated telescopic stroke for variable-distance shafts.

✅ Extreme Strength: Built from 42CrMo alloy steel for high impact resistance.

✅ High Precision: H7 bore accuracy for a vibration-free, tight fit.

✅ Wide Compensation: Handles angles up to 45 degrees with ease.

✅ High Performance: Rated for 2000 RPM with superior torsional stiffness.

Standard sizes are in stock, and we offer full customization for keyways, hex holes, and non-standard lengths.

🚀 Factory Direct Shipping to Global Markets. 📂 Compliant with JB/T5901-1991 Standards.

Get the precision your machinery deserves.

🔗 Technical Data & RFQ: www.apexcoupling.com

📩 Inquiries: ella@apexcoupling.com

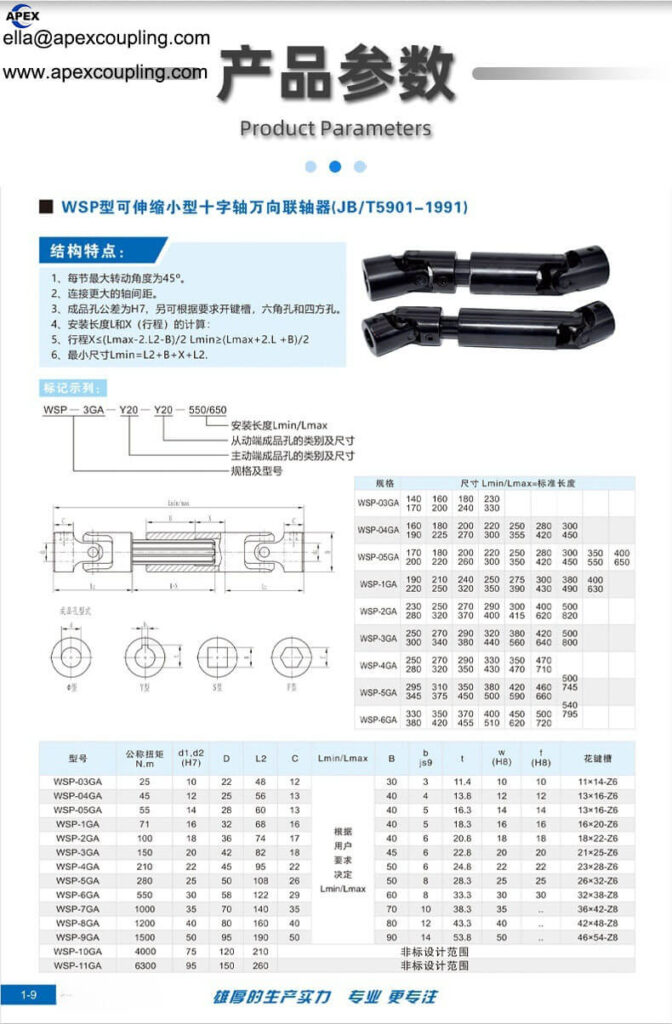

WSP Type Precision Telescopic Universal Joint | 42CrMo Alloy Steel Cross Shaft Coupling | H7 Bore Accuracy
