Introduction In high-demand industrial power transmission setups—such as heavy hydraulic pumping units, paper mill drives, and chemical processing lines—flexible curved jaw couplings are widely used to smooth out torque spikes and manage minor shaft misalignments. However, the reliability of these setups depends heavily on the central elastomeric spider element. Standard polyurethane and nitrile rubber inserts often break down when exposed to ambient heat, hydraulic spray, or aggressive lubricants. This guide analyzes why specifying imported Hytrel GS type spider inserts drastically reduces maintenance costs and protects high-stakes machinery from unexpected downtime.

1. The Metallurgy of Plastics and Rubbers: The Hytrel Advantage When standard polyurethane elements encounter industrial oils or high running temperatures, they tend to degrade through hydrolysis or thermal softening. This causes the insert to break apart, resulting in metal-on-metal jaw contact, severe vibration, and eventual shaft damage.

• The Thermoplastic Co-Polymer Secret: Hytrel bridges the gap between high-strength plastics and flexible rubbers. It exhibits incredible tensile strength and higher load capacity than standard rubbers, combined with excellent resilience.

• High-Level Toughness: Its molecular structure resists tearing and cyclic fatigue, allowing it to withstand heavy, continuous crushing forces inside the coupling jaw channels.

2. Defeating Thermal Stress: Stable Operation at 200°C Friction, close proximity to combustion engines, and enclosed pump guards can trap significant heat around a coupling assembly. Standard inserts typically lose their structural strength when temperatures exceed 80°C. Our premium Hytrel GS elements are specially formulated to remain dynamically stable at continuous operating temperatures up to 200°C. This high heat capacity prevents the spider arms from compressing or deforming under load, ensuring predictable torque tracking and keeping your equipment running smoothly in hot environments.

3. True Oil and Chemical Immersion Security Industrial machinery frequently operates around lubricating fluids, oil mist, and chemical washes. A standard coupling element can quickly swell and dissolve when exposed to these chemicals. Hytrel is highly resistant to oils, fuel mixes, hydraulic fluid lines, and organic solvents. It does not absorb moisture or chemical compounds, meaning the insert retains its original shape, durometer hardness, and balancing geometry even when operating inside a heavily soiled pump housing or wet industrial environment.

4. Optimizing Core Geometry: Curved Faces to Counter Backlash The GS series features a high-precision curved tooth design. When installed between curved coupling jaws, the concave profile ensures the elastic material handles load through compression rather than shear forces. This design distributes energy evenly across each tooth, protecting nearby motor bearings and gearbox seals from uneven stress while maintaining accurate, low-backlash 1:1 speed tracking.

5. Factory Direct Sourcing for Diverse Industrial Machinery Layouts Every manufacturing line comes with unique parameters—including non-standard shaft configurations, custom torque requirements, or strict space limitations. Modifying generic inserts yourself can cause imbalances that lead to high-speed vibration. Partnering directly with an established manufacturer like Apexcoupling simplifies your component supply chain. Backed by our ISO 9001 and RoHS certified production facilities, we offer comprehensive OEM, ODM, and OBM customization channels to manufacture custom durometer inserts, unique sizing boundaries (spanning standard 18mm to 121mm diameters), and custom profiles built to your design prints.

Imported Hytrel Toughness. Continuous 200°C Thermal Stability. Ultimate Chemical & Oil Resistance. ⚙️🔥💧

Are frequent coupling failures, melted rubber elements, or chemical breakdown causing costly downtime on your industrial hydraulic systems or heavy machinery lines? Keep your drivetrains running reliably with the Hytrel GS Type Curved Jaw Coupling Spider Inserts by Apexcoupling!

Engineered to handle harsh industrial operating conditions, these premium elastomeric inserts use a rugged thermoplastic compound to maintain accurate torque transmission while protecting your system from high heat and oil degradation.

✅ Premium Imported Hytrel Compound: Combines the structural strength of engineered plastics with the elasticity of rubber to manage heavy torque loads with excellent wear resistance.

✅ High-Temperature Performance: Retains its original shape, durometer hardness, and balancing geometry in hot environments up to 200°C.

✅ Exceptional Hydrocarbon Resistance: Resists swelling, softening, and tearing when exposed to industrial oils, grease, hydraulic fluids, and chemical solvents.

✅ Precision Curved Geometry: Concave tooth profile distributes pressure evenly to reduce localized wear and maximize energy absorption.

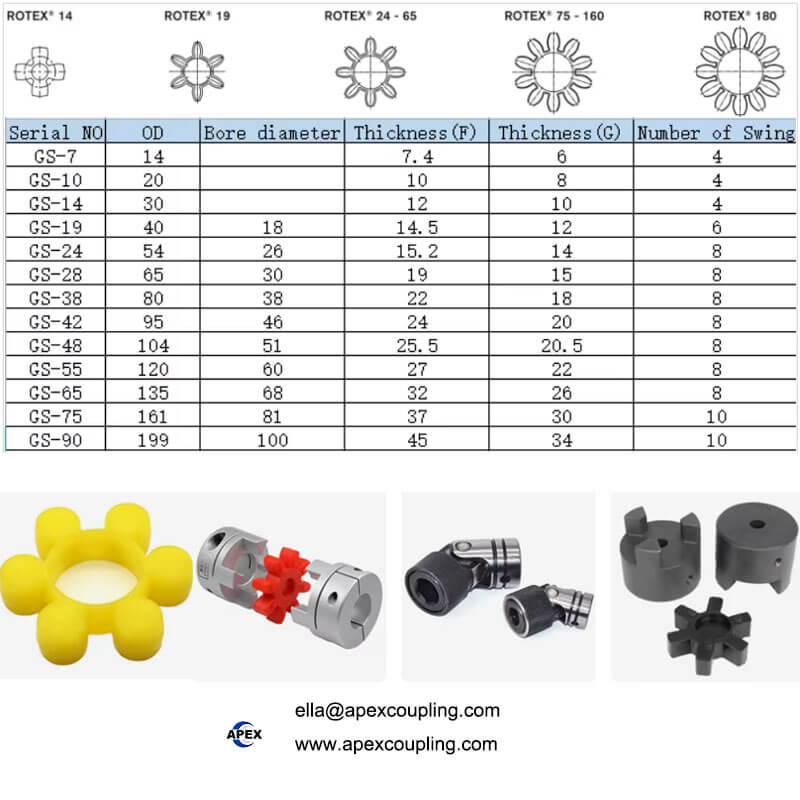

✅ Broad Sizing Range: Fully compatible with shaft configurations from 18mm to 121mm, supporting stable and balanced operations up to 2,000 RPM.

✅ Certified Global Manufacturing: Proudly manufactured under strict ISO 9001, RoHS, and BV certified quality standards for long-term consistency.

✅ Scalable Factory Customization: Need a non-standard thickness, custom durometer rating, or unique custom profile? Our production lines build components tailored exactly to your prints.

Optimized for Heavy Hydraulic Pumping Units, High-Heat Manufacturing Lines, Chemical Agitator Drives, Paper Mill Machinery, and Marine Propulsion Systems.

Stop settling for low-grade polyurethane inserts that warp under heat and oil exposure. Apexcoupling provides factory-direct wholesale pricing, available samples, a low 1-piece MOQ, and dependable OEM/ODM/OBM custom manufacturing to streamline your global component sourcing. 🌍📦

📩 Ready to maximize your equipment’s runtime? Share your required coupling series, bore sizes, and operating temperatures with our engineering team today for a fast quote and print review!

Inquiry: www.apexcoupling.com
