If you work with machinery or automotive systems, you’ve likely heard of a universal joint. But what exactly is it, and why is it so important? In this article, we’ll break down everything you need to know about universal joints, including key types like the double cardan shaft and universal joint drive shaft. We’ll also explore how ApexCoupling can provide reliable solutions for your coupling needs. Let’s dive in!

Understanding Universal Joints: Basics and Terminology

A universal joint, also known as a universal coupling, U-joint, Cardan joint, Spicer joint, Hardy-Spicer joint, or Hooke’s joint, is a mechanical device that connects two rotating shafts, allowing them to transmit power while accommodating misalignment. It consists of two revolute joints with perpendicular and intersecting axes, enabling relative rotation in two directions. This design makes universal joints ideal for applications where shafts are not perfectly aligned, such as in vehicles or industrial equipment.

When shafts are connected using a universal joint, each shaft ends in a revolute joint with its axis perpendicular to the shaft’s rotational axis. This setup transfers rotary motion between the shafts while permitting flexibility in the remaining rotational degrees of freedom. Essentially, a universal joint constrains one rotational degree of freedom (the shaft rotation) and all translations, giving it two degrees of freedom (2-DOF). This allows it to handle angular misalignment effectively, making it a versatile component in many systems.

How Universal Joints Work: Key Principles and Limitations

It’s important to note that a universal joint is not a constant-velocity joint. If the input shaft rotates at a constant speed, the output shaft’s velocity will oscillate—varying slightly above or below the average speed. This oscillation depends on the misalignment angle between the shafts; if the shafts are coaxial, the output shaft will maintain a constant velocity. However, in most real-world applications, some misalignment exists, leading to velocity fluctuations that can cause vibrations and wear over time.

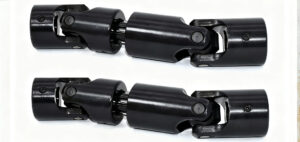

To address this, engineers have developed solutions like the double cardan shaft. A double cardan shaft combines two universal joints with a short connecting shaft, arranged 90 degrees out of phase. This configuration cancels out velocity oscillations when the bend angle is shared equally between the joints, resulting in a constant velocity output. While the intermediate shaft may still oscillate, proper supports can minimize vibrations, making the double cardan shaft a popular choice for high-performance applications.

Applications of Universal Joints in Industry

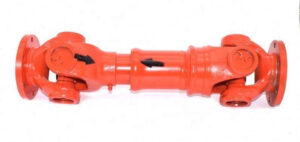

Universal joints have been widely used in vehicle drivetrains, though constant-velocity joints are increasingly replacing them in modern designs. For instance, universal joints are now rare in front-wheel drive systems, except for heavy-duty off-road vehicles. However, they remain common in drive shafts, where their ability to handle large angles between shafts is invaluable. The universal joint drive shaft is a key component in transmitting torque in machinery, automotive, and aerospace sectors.

Beyond vehicles, universal joints play a crucial role in mechanical control systems and industrial machinery. They allow for efficient power transmission in setups with significant misalignment, such as conveyor systems, agricultural equipment, and robotics. For slight misalignments, a flexible coupling might be a better alternative, but universal joints excel in more demanding environments.

Why Choose ApexCoupling for Your Universal Joint Needs?

At ApexCoupling, we specialize in providing high-quality universal joints, couplings, and drive shafts tailored to your specific requirements. Whether you need a standard universal joint drive shaft or a advanced double cardan shaft, our products are engineered for durability, precision, and optimal performance. With years of expertise in the industry, ApexCoupling offers reliable solutions that reduce downtime and enhance efficiency in your operations.

We invite you to explore our range of products, including universal joints, flexible couplings, and custom drive shafts, all designed to meet rigorous industrial standards. Visit our website at www.apexcoupling.com to learn more and place your order today. Trust ApexCoupling for all your coupling needs—because when it comes to power transmission, quality matters!

Conclusion

In summary, a universal joint is a vital mechanical component that enables flexible power transmission between misaligned shafts. Understanding its principles, types like the double cardan shaft and universal joint drive shaft, and applications can help you make informed decisions for your projects. If you’re looking for dependable universal joints or related products, ApexCoupling is here to support you with top-tier solutions. Feel free to reach out or browse our catalog for more information!
