Universal Joint Coupling Noise: Common Causes and Key Selection Guidelines

Universal joint couplings are vital for transmitting torque and motion between misaligned shafts. However, operational noise often indicates underlying issues that can lead to failure. Understanding the causes of these sounds and knowing how to select the right coupling are crucial for system reliability.

Common Causes of Universal Joint Coupling Noise

1. Poor Manufacturing Quality
   Low-quality couplings from non-certified manufacturers often lack precision balancing and use substandard materials. This results in vibration, uneven operation, and significant noise during use.

2. Incorrect Installation or Misalignment
   Improper installation—such as incorrect shaft alignment, excessive preload, or faulty clamping—creates abnormal stresses. This leads to knocking or grinding sounds and accelerates wear on bearings and yokes.

3. Excessive or Insufficient Operating Angles
   Operating outside the recommended angular misalignment range (too large or too small) causes binding, vibration, and rhythmic clicking or clunking noises. This also increases fatigue on cross bearings and journals.

4. Lubrication Failure or Component Wear
   Insufficient or contaminated grease in the journal bearings leads to metal-on-metal contact, producing squealing or grinding sounds. Worn spider bearings, yoke ears, or splines also generate repetitive knocking.

5. Faulty Speed Sensor or Encoder
   Although not part of the coupling itself, a damaged motor-mounted encoder or speed sensor can misinterpret vibration as speed variation, triggering irregular operation and associated noise.

How to Choose the Right Universal Joint Coupling

1. Understand the Drive System’s Mechanical Characteristics
   Identify whether the prime mover (e.g., diesel engine, electric motor) operates smoothly or with torque shocks. High-cyclic or pulsating loads require couplings designed for dynamic torque and fatigue resistance.

2. Evaluate Torque and Speed Requirements
   Calculate the maximum transmitted torque—including peak and shock loads—and ensure the coupling’s torque rating exceeds this value. Also, confirm its maximum RPM complies with your operating speed to avoid resonance or imbalance issues.

3. Check Shaft Misalignment and Operating Angles
   Select a coupling that accommodates your system’s angular and parallel misalignment. Universal joints perform best within specified angle ranges—exceeding them shortens service life and increases vibration.

4. Consider Load Capacity and Service Environment
   Choose couplings made from materials (e.g., alloy steel, stainless steel, treated alloys) suitable for your environment. Corrosive, high-temperature, or dusty settings need specialized seals, coatings, or lubricants.

5. Prioritize Ease of Installation and Maintenance
   Opt for couplings that allow easy assembly/disassembly without moving connected equipment. Units with grease fittings, replaceable bearings, and minimal maintenance requirements reduce downtime.

6. Verify Balancing Standards and Construction

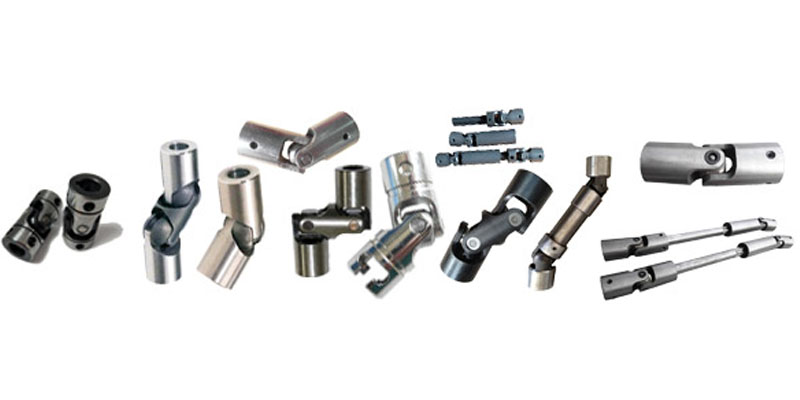

   For high-speed applications, ensure the coupling is dynamically balanced. Single and double universal joint configurations offer different performance characteristics—select based on required smoothness and joint articulation.

Conclusion

Noise in a universal joint coupling should never be ignored. It often points to misalignment, wear, or poor selection. By analyzing operational requirements—including torque, speed, misalignment, and environment—you can choose a coupling that ensures efficiency, longevity, and quiet operation.

For further assistance or technical support in selecting the ideal universal joint coupling, contact our engineering team today.
