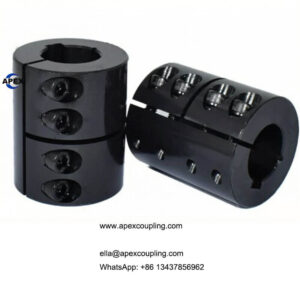

n vertical mixer and agitator applications, connecting long shafts reliably is critical for equipment performance and safety. Split clamp rigid couplings like the JQ series offer a practical solution for joining shaft sections or connecting mixer shafts to gearbox outputs. This guide covers selection criteria, installation best practices, and common applications.
Why Split Clamp for Vertical Applications?
Vertical agitators often have shafts that are too long to manufacture as a single piece. Split clamp couplings allow:
Connection of multiple shaft sections
Easy installation without moving the vessel or drive
Suspension of shaft weight via the lifting ring
Secure torque transmission with keyways
Key Selection Criteria
| Factor | Consideration |
|---|---|
| Shaft Diameter | Match coupling bore to shaft size |
| Torque Requirement | Ensure coupling rating exceeds application torque |
| Speed | JQ couplings are suitable for speeds ≤ 900 rpm; check surface velocity ≤ 5 m/s |
| Environment | Black oxide finish provides basic corrosion protection |
| Alignment Capability | Rigid design requires precise alignment; no misalignment compensation |
Installation Best Practices
Step 1: Alignment
Use dial indicators or laser alignment tools to achieve:
Concentricity within 0.05 mm
Angular alignment within 0.05 mm per 100 mm
Step 2: Preparation
Clean shaft ends and coupling bore
Apply anti-seize to bolts (not to clamping surfaces)
Verify key and keyway fit
Step 3: Assembly
Position coupling halves around both shafts
Insert lifting ring for vertical applications
Tighten bolts progressively to specified torque
For speeds > 5 m/s, balance assembly with bolts alternating direction
Common Applications & Industries
Chemical Processing – Reactor agitators
Pharmaceutical – Mixing vessels
Food & Beverage – Blenders and mixers
Water Treatment – Aerator and agitator drives
Heavy Industry – Vertical transmission systems
Limitations to Consider
JQ split clamp couplings are rigid and do NOT accommodate:
Angular misalignment
Parallel misalignment
Axial movement
They are also limited to low-speed applications (typically ≤ 900 rpm) due to balancing requirements.

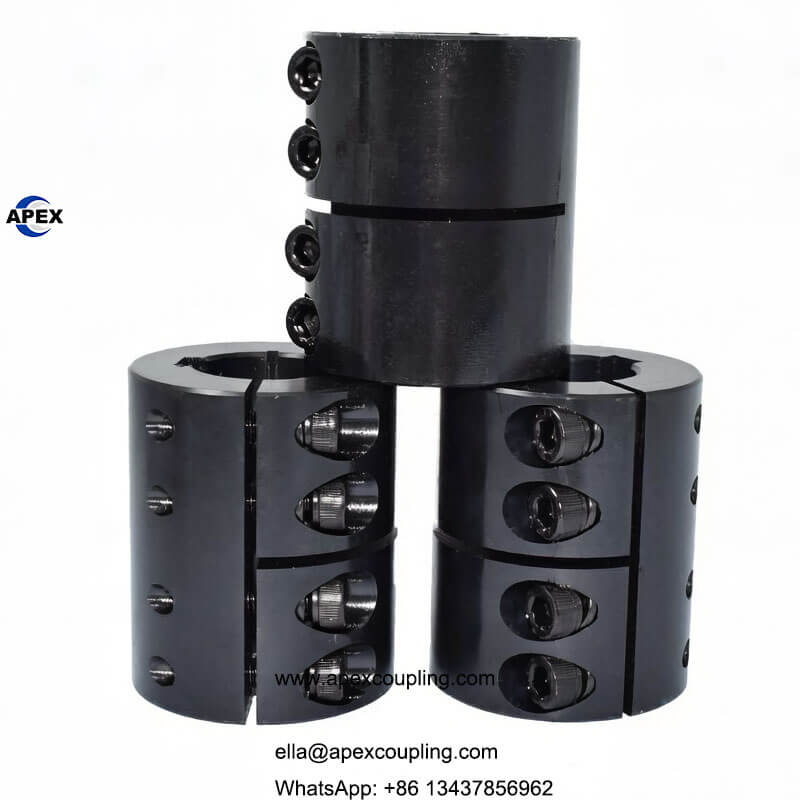

Why Apexcoupling’s JQ Series
As a manufacturer with extensive experience in heavy-duty couplings, we ensure:
High-strength 45# steel construction
Precision machining for accurate fit
Customization for non-standard applications
Factory-direct pricing and support
For vertical mixer and agitator shaft connections, JQ split clamp rigid couplings provide reliable, maintenance-friendly performance. Proper selection and precise alignment are essential for long service life. Contact us for assistance with your specific application.
