Spider Coupling vs. Diaphragm Coupling – Which is Better for Servo Motor to Lead Screw Connections?
1. Introduction
When connecting a servo motor to a lead screw (ball screw), the coupling choice directly impacts positioning accuracy, system life, and maintenance costs. Two popular options are spider (jaw) couplings and diaphragm couplings. This article compares their characteristics to help you select the right one.

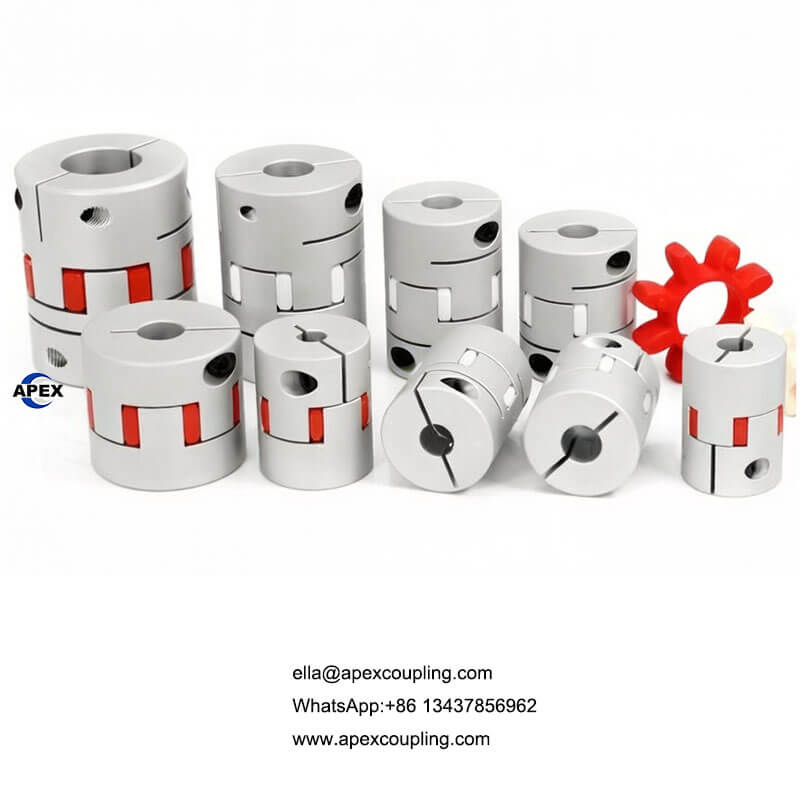

2. Spider Coupling (DFC Series)
Spider couplings use a polyurethane insert between two aluminum hubs. Key features:
Zero backlash (with precision insert)
Excellent vibration damping
Electrical isolation
Moderate misalignment compensation
Replaceable spider (low maintenance cost)
3. Diaphragm Coupling (DST or DBL41)
Diaphragm couplings use a stainless steel diaphragm. Key features:
Zero backlash
Higher torsional stiffness
Higher speed capability
Longer axial stroke capability
Higher cost
4. Comparison Table
| Feature | Spider Coupling (DFC) | Diaphragm Coupling (DST/DBL41) |
|---|---|---|
| Backlash | Zero | Zero |
| Torsional Stiffness | Moderate | Very High |
| Vibration Damping | Excellent | Low |
| Electrical Isolation | Yes (polyurethane) | No (conductive) |
| Misalignment Capacity | Moderate | Moderate to High |
| Max Speed | Moderate (up to ~10,000 rpm) | High (up to 15,000+ rpm) |
| Cost | Lower | Higher |
| Maintenance | Replaceable spider | Replace entire coupling |
| Best For | General servo, lead screws, damping needed | High precision, high speed, high torque |
5. When to Choose Spider Coupling (DFC)
Servo motor to lead screw in CNC machines, routers, and positioning tables
Applications with vibration – polyurethane absorbs shocks
Electrical isolation required to prevent motor bearing currents
Cost-sensitive projects without sacrificing performance
Easy maintenance – spider can be replaced in minutes
6. When to Choose Diaphragm Coupling
Very high speeds (>10,000 rpm)
Extreme precision requiring highest torsional stiffness
Large axial shaft movement (long stroke)
7. Why Our DFC Spider Coupling Stands Out
German imported polyurethane – Operates up to 140°C, excellent wear resistance
H6 bore accuracy – Tighter fit than standard H7
Anodized aluminum – 30% longer life
5-axis CNC machined – Perfect concentricity
8. Conclusion
For most servo motor to lead screw applications, the DFC spider coupling offers the best balance of performance, damping, and cost. Contact Apexcoupling for help selecting the right size and spider hardness for your application.
