Roller Chain Coupling vs Gear Coupling – Which One is Easier to Maintain?
Roller Chain Coupling vs Gear Coupling – Why Chain Couplings Win on Maintenance
When you need a flexible coupling that can handle moderate misalignment and shock loads, two common choices are roller chain couplings and gear couplings. Both have their place, but chain couplings offer a major advantage: easy maintenance without moving shafts. This article compares them and explains why the KC/GL series with guard is a smart choice for many industrial applications.
1. Roller Chain Coupling vs Gear Coupling – Quick Comparison
| Feature | Roller Chain Coupling (KC/GL) | Gear Coupling |
|---|---|---|
| Maintenance without moving shafts | ✅ Yes – remove chain only | ❌ No – often requires shaft movement |
| Guard included | ✅ Yes (protective cover) | ❌ Usually no (separate purchase) |
| Backlash | Zero (under tension) | Very low to zero |
| Misalignment capacity | Moderate (0.1mm / 1°) | Moderate to high |
| Shock absorption | Good (chain flexibility) | Moderate |
| Cost | Lower | Higher |
| Lubrication | Easy – through guard port | More complex |
| Wear parts | Chain (replaceable) | Teeth (costly to repair) |
| Typical life | 30% longer with case‑hardened teeth | Good, but maintenance intensive |
2. The #1 Advantage of Roller Chain Couplings: Easy Maintenance
With a gear coupling, replacing worn teeth often means moving the motor or load to access the coupling halves. This can take hours or even a full shift.

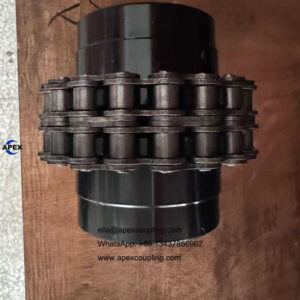

With a KC/GL roller chain coupling:
Simply remove the guard, take off the chain, and replace it – without moving either shaft
The two sprocket halves stay mounted on their respective shafts
Downtime is reduced from hours to minutes
✅ This is a game‑changer for production lines where uptime is critical.
3. Why Our KC/GL Chain Coupling Lasts 30% Longer
Standard chain couplings wear out due to chain elongation and tooth wear. We solved this with:
Case‑hardened teeth (high‑frequency quenching) – surface hardness increased significantly
Thicker tooth profile – more material to wear, following national standards
High‑quality brand chain – domestic premium chain with high tensile strength
Result: Service life extended by 30% compared to standard chain couplings.
4. Zero Backlash – Important for Reversible Drives
Many engineers assume chain couplings have backlash. But with proper chain tension and precision sprockets (H7 bore, accurate tooth profile), the KC/GL series achieves near‑zero backlash. This makes it suitable for:
Forward/reverse applications
Indexing drives
Positioning systems where lost motion is unacceptable
For absolute zero backlash, use our rigid couplings – but chain couplings are a great balance of cost and performance.

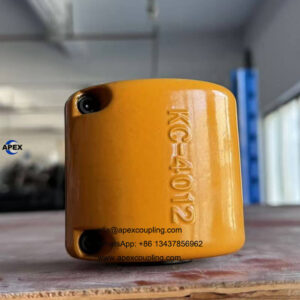

5. The Protective Guard – More Than Just Safety
Our KC/GL couplings come standard with a protective guard. Benefits:
Safety – prevents operator contact with rotating chain
Dust/dirt protection – keeps contaminants out of the chain
Lubrication retention – keeps grease or oil inside, reducing maintenance frequency
Noise reduction – dampens chain noise
Without a guard, chain couplings can be dangerous and short‑lived. We include it as standard.
6. Real‑World Example – Conveyor Drive Upgrade
A packaging plant used gear couplings on their main conveyors. Every 6 months, they needed to replace worn seals and lubricate – requiring a full day of downtime to move motors.
They switched to Apex Coupling KC/GL roller chain couplings with guard (45# forged steel, case‑hardened teeth, H7 bore). Results:
Maintenance downtime reduced from 8 hours to 30 minutes (chain replacement only)
No shaft movement required – motor stayed in place
Coupling life exceeded 18 months before first chain replacement
30% longer tooth life due to case‑hardening
7. When to Choose a Roller Chain Coupling Over Other Types
| Application | Recommended Coupling |
|---|---|
| Easy maintenance is priority | ✅ KC/GL chain coupling |
| Limited access to shaft ends | ✅ Chain coupling (no shaft movement) |
| Moderate misalignment (0.1mm / 1°) | ✅ Chain coupling |
| Shock loads (conveyors, mixers) | ✅ Chain coupling |
| High speed >8000 rpm | ❌ Consider disc coupling |
| Extreme angular misalignment | ❌ Consider universal joint |
| Absolute zero backlash (servo) | ❌ Use rigid coupling |
8. Installation & Maintenance Tips for Chain Couplings
Check chain tension – too loose causes backlash; too tight reduces life
Lubricate regularly – use NLGI #2 grease through guard port
Inspect chain wear – replace chain when elongation exceeds 3%
Align shafts – keep eccentricity ≤0.1mm and angle ≤1° for best life
Guard must be in place – never operate without guard
9. Conclusion
If you value low maintenance downtime, easy chain replacement without moving shafts, and long service life, the KC/GL roller chain coupling with guard is an excellent choice. With 45# forged steel, case‑hardened teeth (30% longer life), H7 bore, and a standard protective guard, it outperforms many gear couplings in real‑world industrial environments.
👉 Ready to try a KC/GL chain coupling? Contact Apex Coupling for factory‑direct pricing and custom bore machining.
