What is a Universal Joint?

A universal joint, often referred to as a U-joint, is a mechanical component that allows the transmission of rotary motion and torque between two shafts that are not aligned with each other. This essential piece of engineering is widely used in a variety of machinery and vehicles, especially in the automotive industry, to transfer power from the engine to the wheels or other rotating parts.

Universal joints are crucial for accommodating the angular misalignment between two rotating shafts. This flexibility is essential in applications where shafts cannot be perfectly aligned, such as in drive systems, steering mechanisms, and even heavy machinery.

How Does a Universal Joint Work?

A universal joint works by connecting two shafts using a cross-shaped yoke and bearing, allowing the shafts to rotate at varying angles. When one shaft rotates, the U-joint pivots at its center, ensuring that torque is transferred smoothly to the second shaft, despite any misalignment.

This mechanism is ideal for driving power through components that need flexibility and motion in multiple directions. For example, in an automotive drive shaft, a universal coupling ensures that power from the engine is transmitted to the wheels, even as the wheels move up and down due to road conditions.

Types of Universal Joints

There are several types of universal joints used in different applications:

1. Cross and Bearing U-joint: This is the most common type of universal joint, typically found in automotive drive shafts. It features a central cross-piece with bearings that rotate, allowing for smooth torque transmission between two shafts.

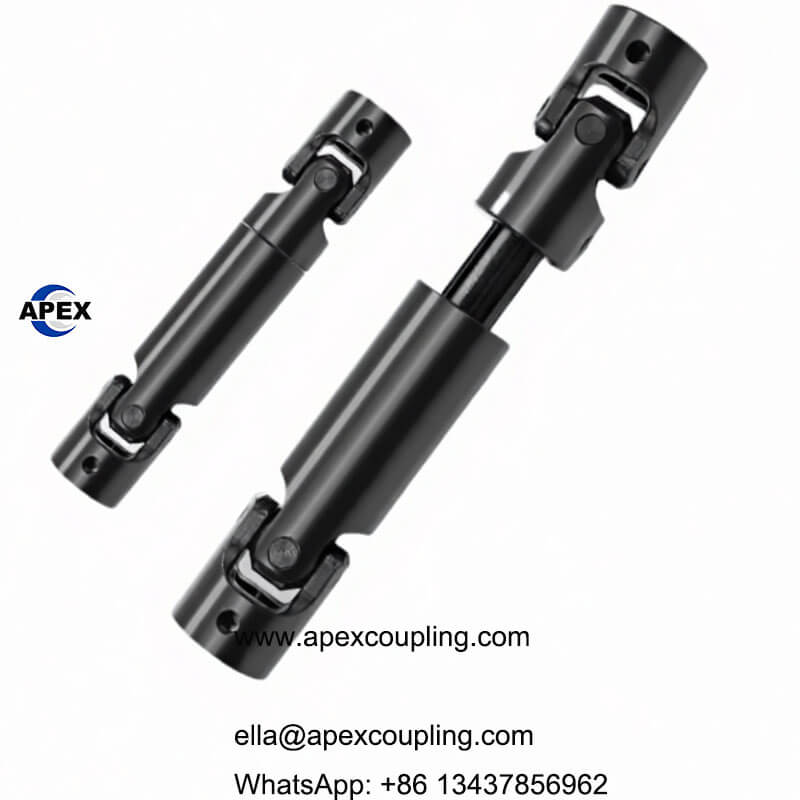

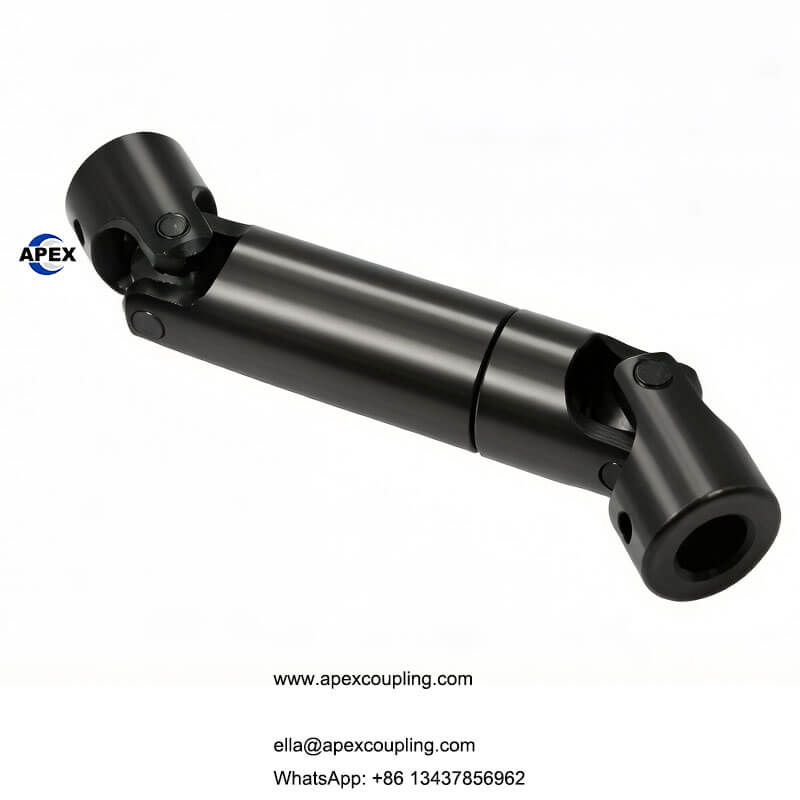

2. Cardan Joint: A type of universal joint often used in larger machinery, the Cardan joint is specifically designed for applications requiring high torque and flexibility.

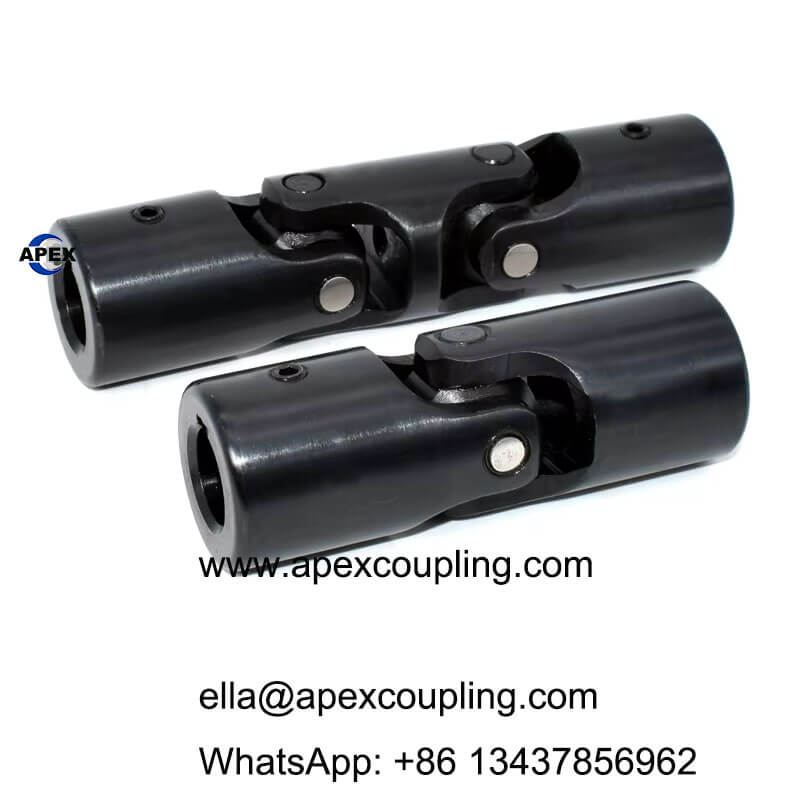

3. Double Cardan Joint: A variation of the Cardan joint, the double Cardan joint is typically used when the angle between the connected shafts is too large for a standard U-joint.

Importance of Universal Joints in Drive Shafts

The role of universal joints in drive shafts cannot be overstated. In vehicles, for example, the drive shaft connects the engine to the wheels, enabling power transmission while the vehicle’s suspension moves. Without universal joints, this power transfer would be impossible, as the engine and wheels would be misaligned due to the vehicle’s suspension and movement.

Universal joints play a critical role in providing smooth, uninterrupted power flow from the engine to the drivetrain components. The universal coupling allows for the necessary angular flexibility in these systems, preventing excessive wear and tear caused by misalignment and ensuring the longevity of the drivetrain.

Applications of Universal Joints

The versatility of universal joints makes them invaluable in many industries and applications:

• Automotive Industry: Used extensively in drive shafts to transmit power from the engine to the wheels, universal joints help vehicles move smoothly over uneven terrain by allowing for the necessary shaft misalignment.

• Agricultural Equipment: In machinery like tractors, universal couplings are used to connect the power take-off (PTO) to various farm implements, enabling effective torque transfer.

• Industrial Machinery: Universal joints are often found in conveyor systems, power tools, and other industrial equipment, where torque needs to be transmitted between shafts with varying angles.

• Aerospace: Aircraft use universal joints in their systems, especially in the control rods that link cockpit controls to flight surfaces.

Why Choose Apex Coupling’s Universal Joints?

At Apex Coupling, we offer high-quality universal joints that are designed to meet the most demanding performance requirements. Our universal couplings are engineered for durability, flexibility, and reliability, ensuring smooth power transmission in any application. Whether you’re in the automotive, agricultural, or industrial sector, we have the perfect solution for your drive shaft needs.

Visit www.apexcouping.com to explore our range of universal joints and universal couplings designed to improve the efficiency and longevity of your equipment. Get in touch today to place a B2B inquiry and learn more about how our products can enhance your systems.

Conclusion

In summary, a universal joint is a crucial component in many mechanical systems, offering the flexibility needed for power transmission between misaligned shafts. Whether used in a drive shaft, universal coupling, or other applications, universal joints ensure that torque is transmitted smoothly and efficiently, regardless of the angles or misalignment between the shafts. Their role is indispensable in various industries, and choosing high-quality universal joints from a trusted supplier like Apex Coupling can improve the performance and longevity of your equipment.
