Here’s a detailed breakdown of their applications and key characteristics.

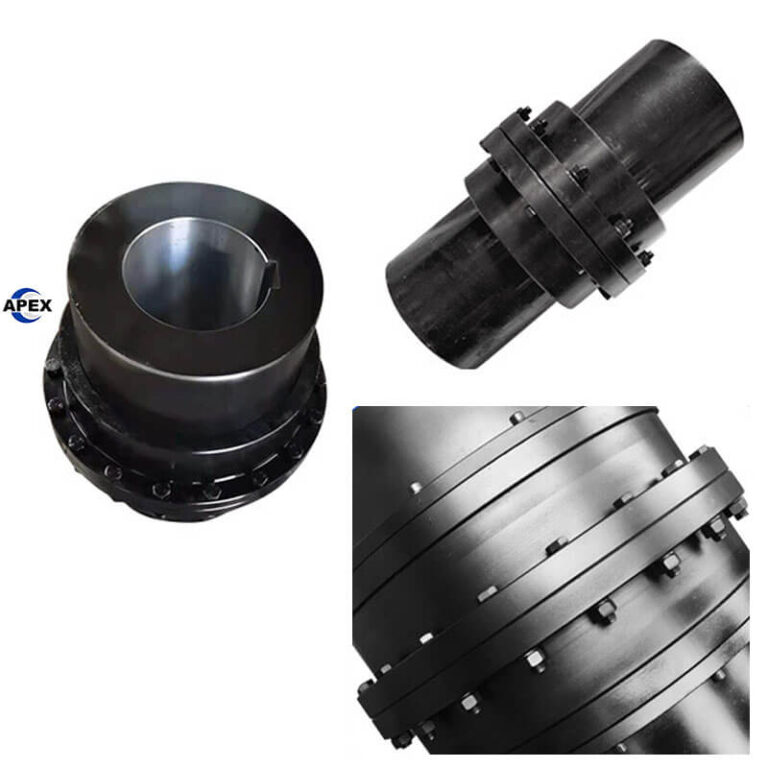

What is an HRC (Gear) Coupling?

An HRC Gear Coupling consists of two forged steel hubs with external gear teeth, connected by a steel sleeve (or two halves) with internal gear teeth. The meshing of these teeth allows for torque transmission while accommodating misalignment. They are known for their high power density, meaning they can transmit very high torque in a relatively compact size.

Primary Applications of HRC Flexible Couplings

HRC couplings are the workhorses of heavy industry, chosen where reliability under extreme conditions is non-negotiable.

Key Features & Advantages

• Extremely High Torque & Power Density: The primary advantage. They transmit more torque for their size than most other coupling types.

• High Torsional Stiffness: Provides precise timing between connected shafts with minimal angular deflection, which is crucial for synchronization.

• Durability & Reliability: Made from high-strength forged steel, they are built to last in the toughest environments.

• Misalignment Capability: While not as high as some elastomeric types, they can accommodate moderate parallel, angular, and axial misalignment through the clearance between the gear teeth.

• High-Speed Capability: When properly balanced, they are suitable for very high rotational speeds.

Comparison with Other Couplings

In summary, choose an HRC Flexible (Gear) Coupling when your application demands:

• Very high torque in a compact space.

• Operation under severe shock loads.

• High rotational speeds.

• Service in heavy-industry environments like steel, mining, and power generation.

Its main consideration is the need for regular lubrication to prevent wear of the gear teeth.
