Key Selection Criteria for H-Type / N-EUPEX Couplings

Follow these steps to match the coupling to your application:

Step 1: Determine Torque & Service Factor
This is the most critical step to prevent premature failure.

• Calculate Required Torque: Determine the operational torque of your application.

• Apply a Service Factor: Multiply your calculated torque by a service factor based on the driven equipment. For example:

  • Centrifugal Pumps: Factor 1.5 – 2.0

  • Conveyors: Factor 1.5 – 2.0

  • Crushers/Hammer Mills: Factor 2.0 – 3.0+

• Compare to Rated Torque: Ensure the coupling’s rated torque (e.g., 2000 N-m from your data) is higher than your torque multiplied by the service factor.

Step 2: Define Shaft & Speed Requirements

• Shaft Diameters & Keyways: Measure the exact diameters of both the motor and driven machine shafts (e.g., 30 mm). Specify if keyways are needed.

• Maximum RPM: Confirm your system’s maximum operating speed and ensure it is below the coupling’s maximum speed rating (e.g., 5000 RPM).

Step 3: Assess Misalignment & Environment

• Misalignment Capacity: H-type couplings are excellent for parallel and angular misalignment. Check the manufacturer’s charts for specific limits. Do not exceed them.

• Environmental Conditions:

  • Temperature: Standard NBR spiders work in a range of approx. -40°C to 100°C. For higher temperatures, special elastomers are required.

  • Oils & Chemicals: NBR has good resistance to oils, but other chemicals may require a different spider material.

Step 4: Select the Correct Spider Hardness

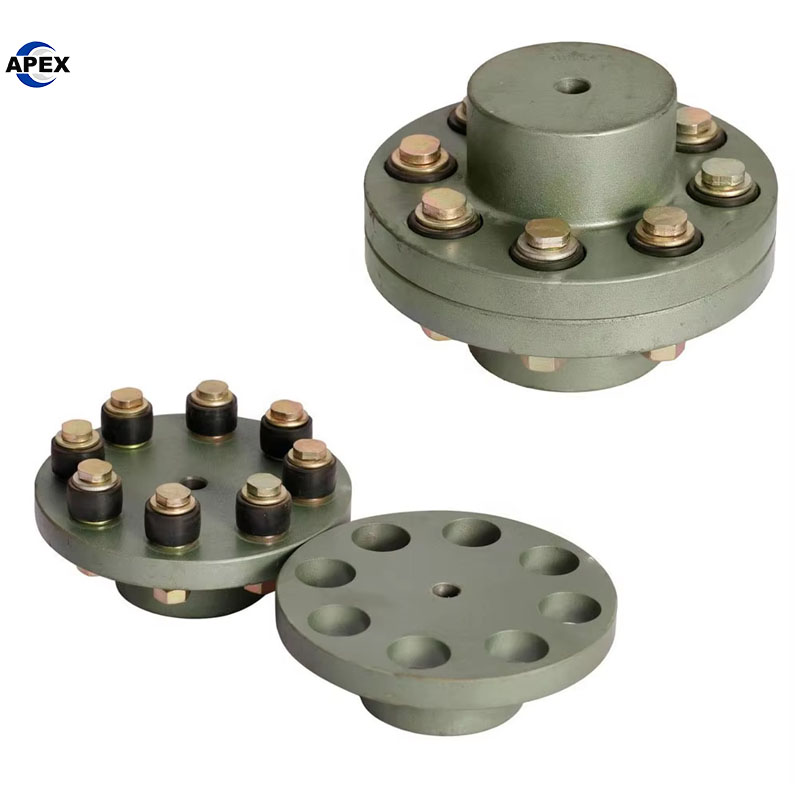

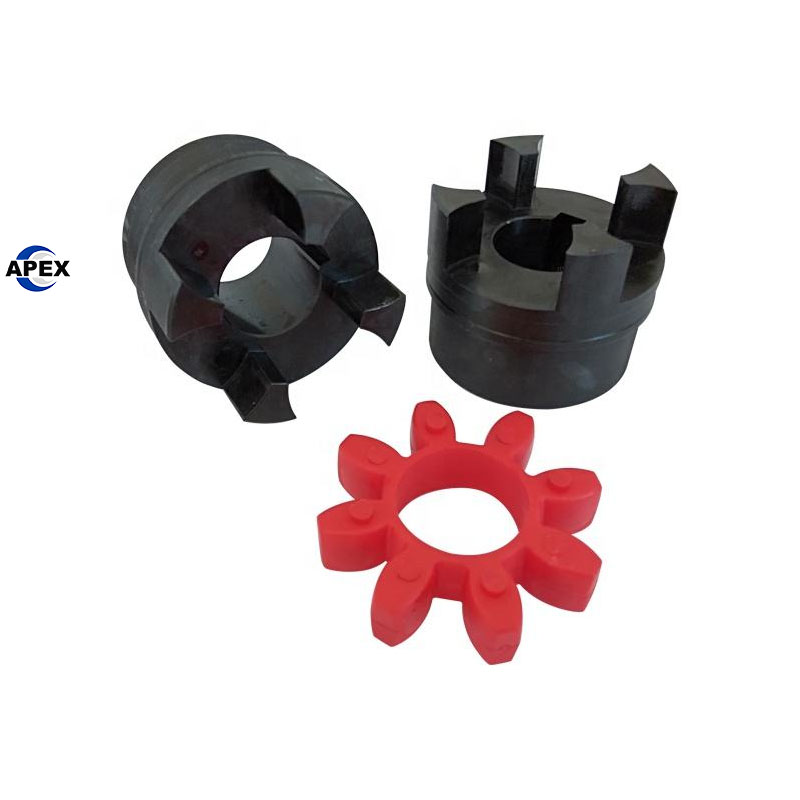

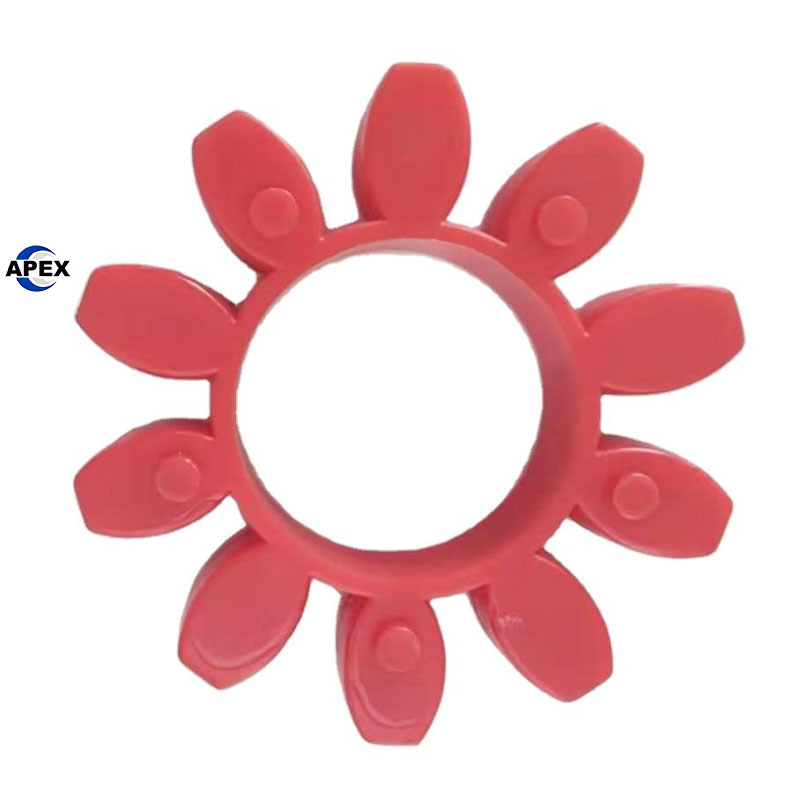

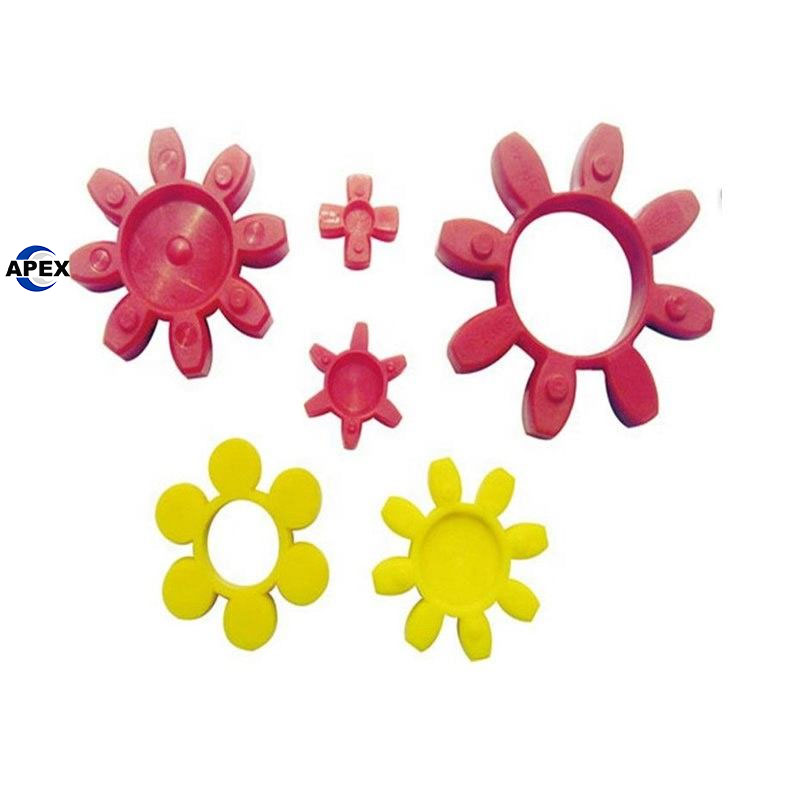

The spider (NBR element) is the heart of the coupling. Its hardness (Shore A) affects performance:

• Standard (e.g., Shore 92A): Good all-around performance for general applications with standard vibration levels.

• Softer (e.g., Shore 80A): Provides superior vibration damping and shock absorption for high-impact applications.

• Harder (e.g., Shore 95A): Offers higher torsional stiffness and lower angular deflection for more precise applications.

Summary: Why Choose an H-Type Coupling?

Choose an H-type / N-EUPEX coupling if your application requires:

• Excellent Vibration Damping and shock absorption.

• Electrical Insulation between shafts.

• Moderate Compensation for misalignment.

• Maintenance-Free operation (no lubrication).

• A Cost-Effective and reliable solution for pumps, compressors, fans, and conveyors.

Final Recommendation: Always consult the manufacturer’s technical catalog for precise sizing tables and service factors. For complex applications, provide your parameters to the supplier for a verified selection.
