The Primary Purposes of Coupling Parts

1. To Transmit Power & Torque
This is the fundamental job. The coupling’s components (hubs, bolts, discs, etc.) are engineered to transfer rotational energy (torque) from a driver (like a motor) to a driven piece of equipment (like a pump or gearbox).

2. To Accommodate Misalignment
It is virtually impossible to align two shafts perfectly and keep them perfectly aligned during operation due to thermal expansion, frame deflection, or settling. Coupling parts are designed to handle this.

• Angular Misalignment: Shafts are at an angle.

• Parallel Misalignment: Shafts are offset but parallel.

• Axial Misalignment: Shafts move closer or further apart (end-float).

3. To Absorb Vibration & Dampen Shock Loads

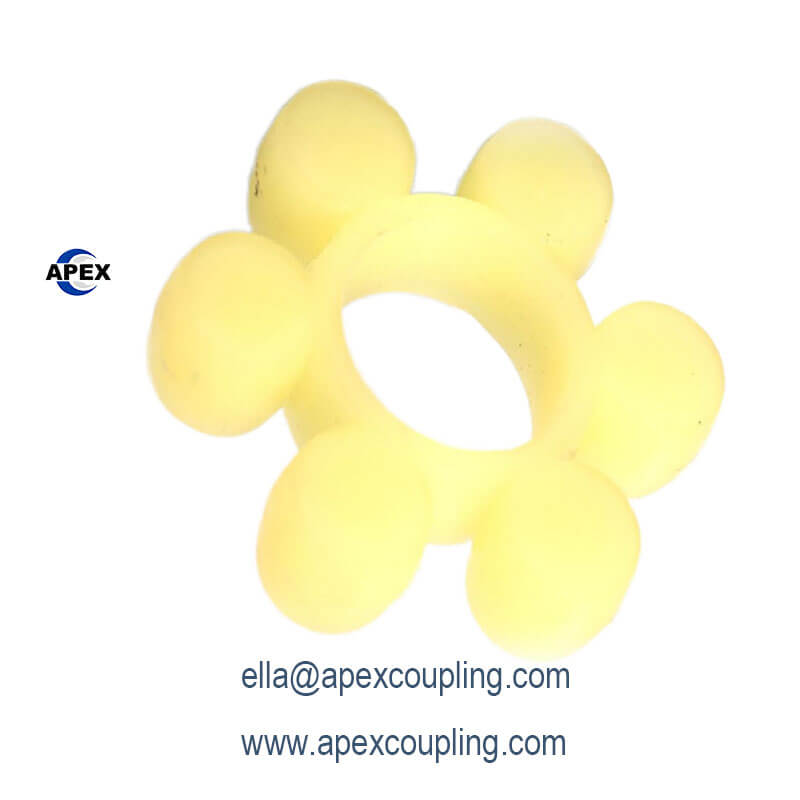

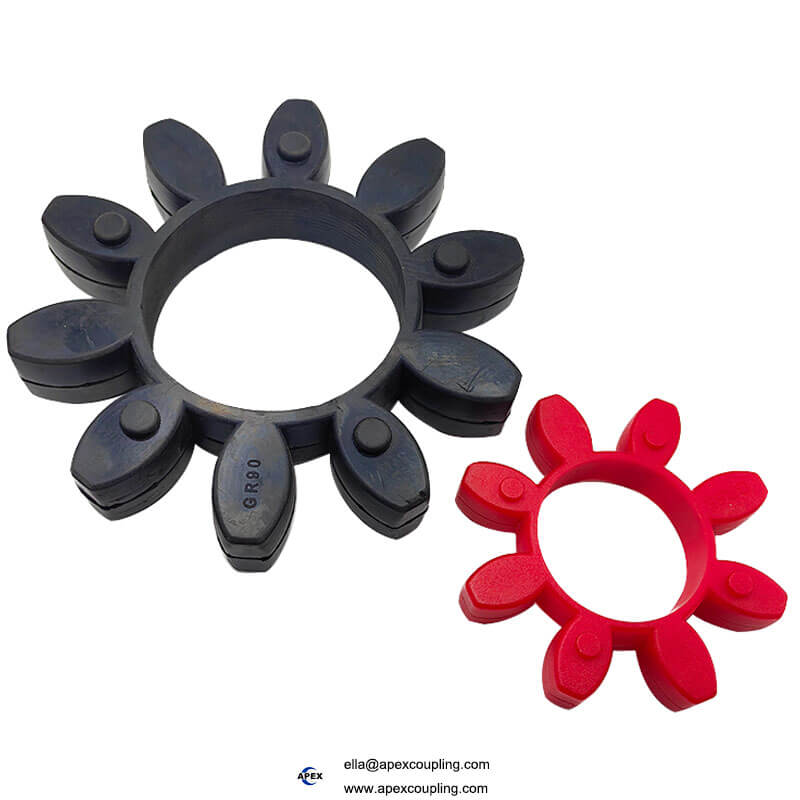

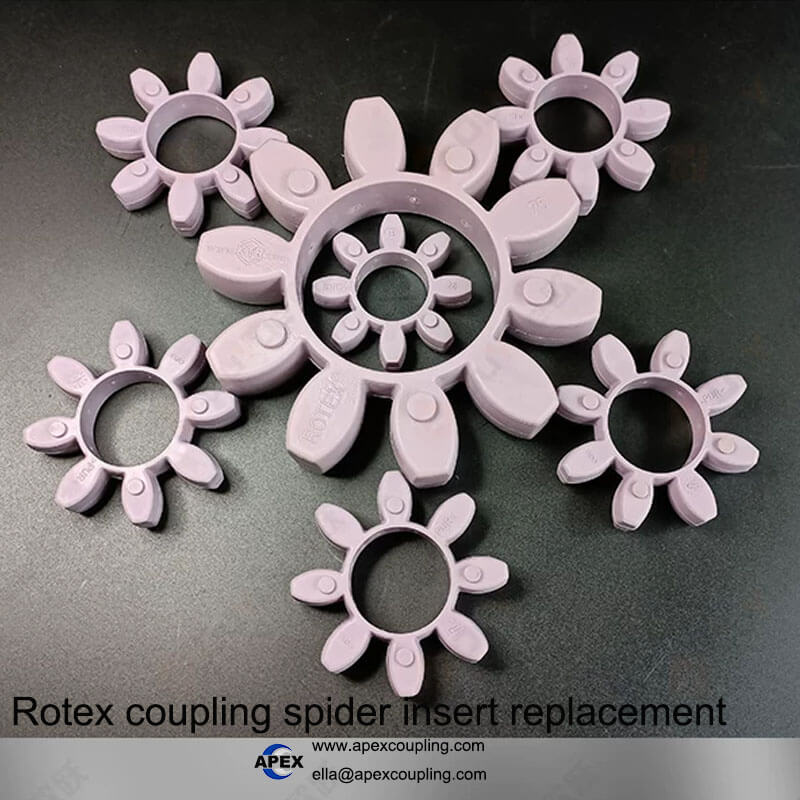

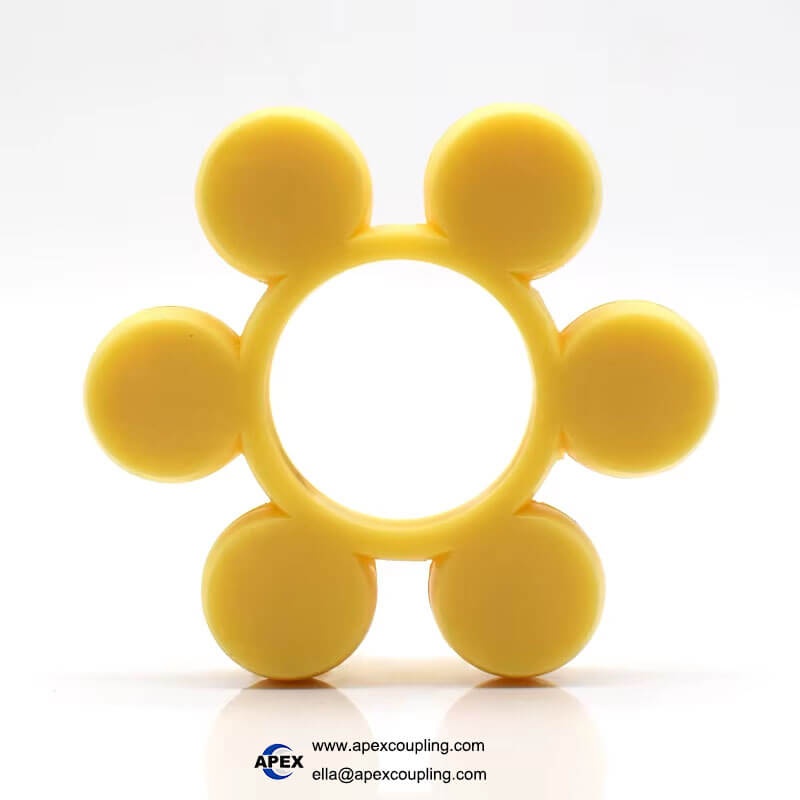

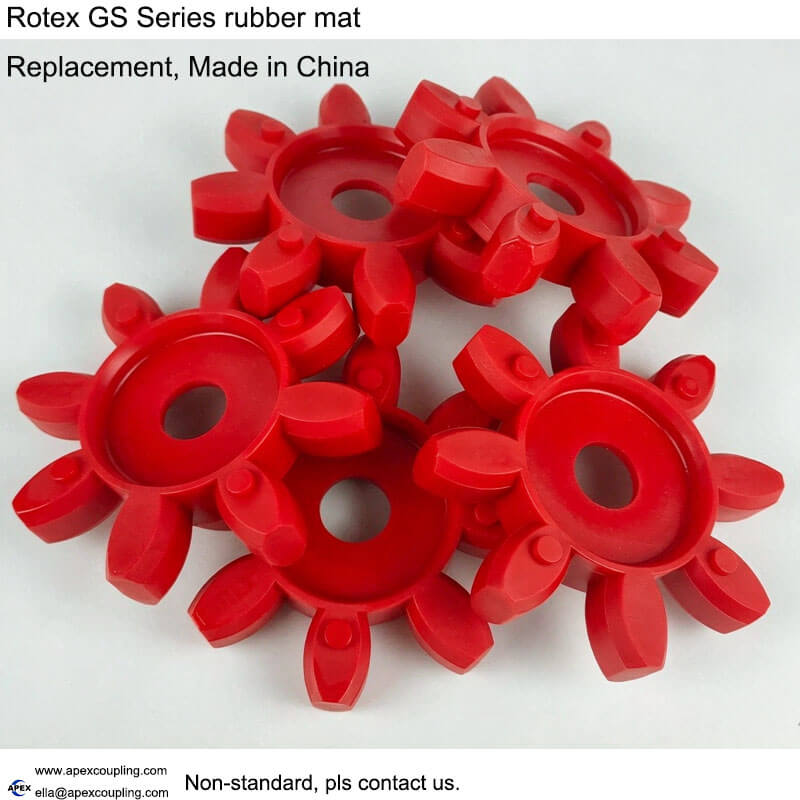

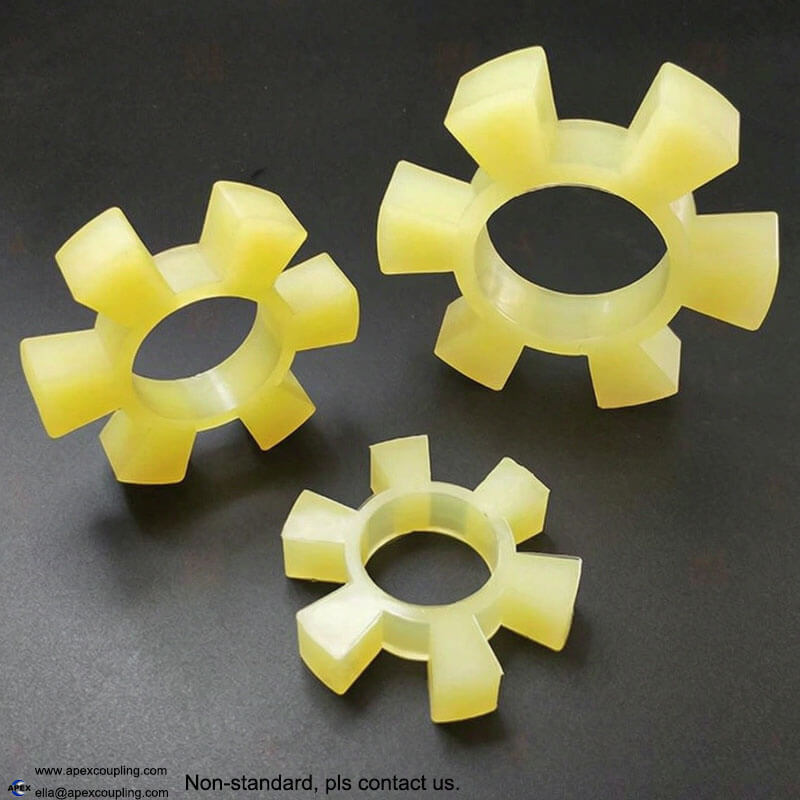

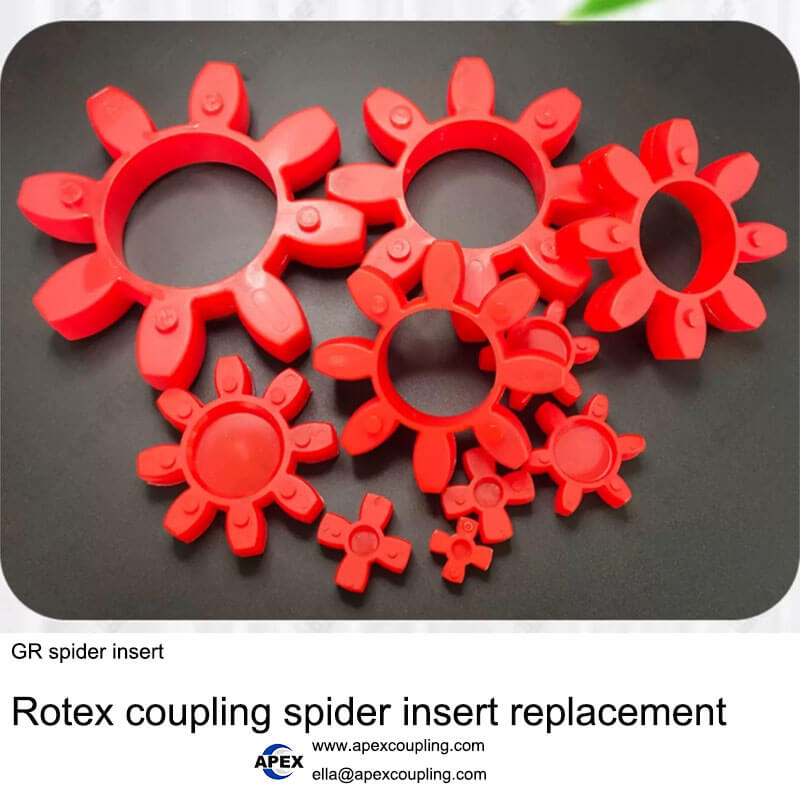

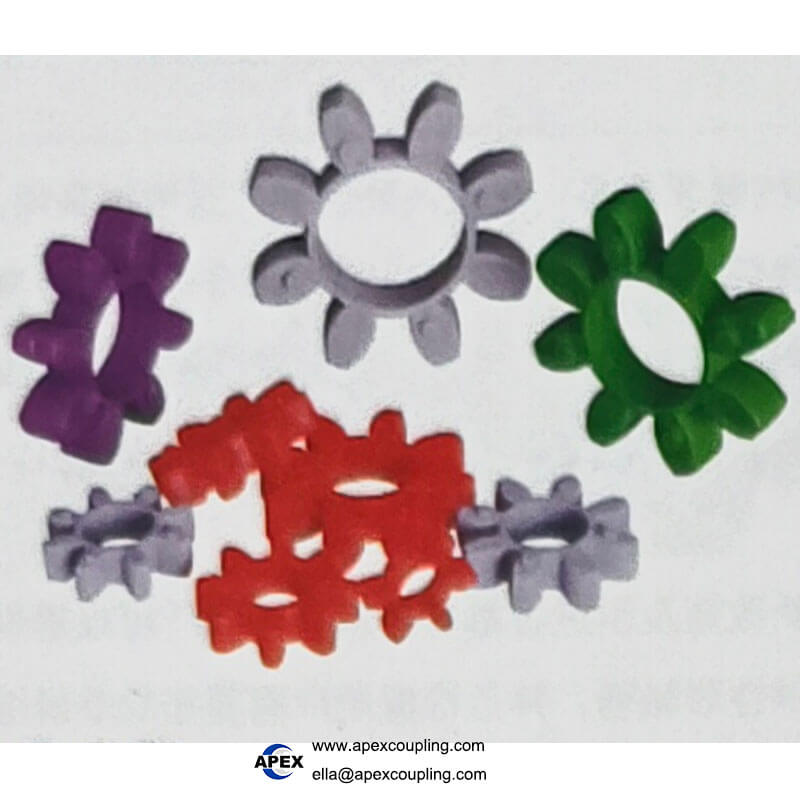

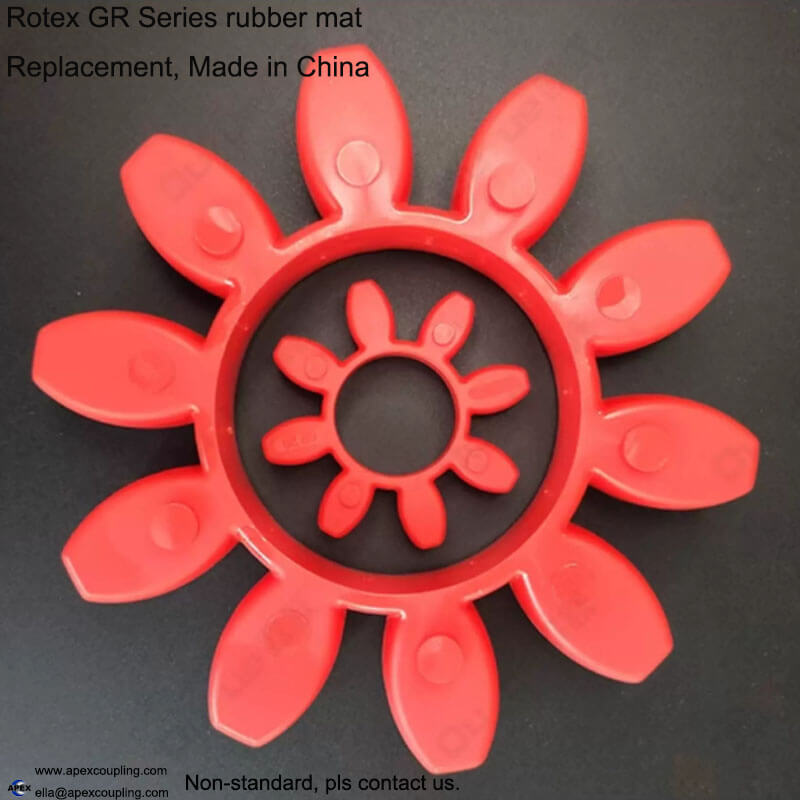

Certain coupling parts, like elastomeric spiders (in jaw couplings) or grids (in grid couplings), are made of flexible materials that compress and deform. This action:

• Absorbs vibrations from one shaft, preventing them from traveling to the other.

• Softens sudden shock loads (e.g., from a crusher starting), protecting expensive motors and equipment.

4. To Protect Equipment
By managing misalignment and shock, the coupling parts act as the weakest link in a controlled and sacrificial way. A cheap, replaceable spider or disc will fail before a costly motor bearing or gearbox does, preventing more extensive damage.

5. To Allow for Axial Movement (End-Float)
Some couplings allow for shafts to move in and out slightly (axial movement) without damaging the connected equipment.

6. To Connect or Disconnect Drives
Some specialized couplings, like clutches, contain parts that allow for the driven shaft to be engaged and disengaged from the driver.

How Different Parts Achieve These Purposes

Summary

In essence, coupling parts are used to create a reliable, forgiving, and protective connection between two rotating machines. They are the critical link that ensures smooth power transmission while compensating for real-world imperfections and protecting the entire drivetrain from damage.
