XL Series Star Flexible Rubber Shaft Coupling - Curved Jaw Coupling with Elastomeric Spider for Industrial Motors
Model Number
XL2-55×78-Bores 12~28mm
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
Star-Shaped Curved Jaw Design: Enhanced contact area for higher torque capacity and reduced edge pressure
Three-Piece Construction: Two metal hubs with elastomeric spider for optimal flexibility
Multiple Material Options: Hubs available in stainless steel, 45# steel, aluminum, and gray iron
Variable Spider Elements: Urethane and Hytrel spiders in different durometer ratings
Maintenance-Free Operation: No lubrication required and no metal-to-metal contact
High Misalignment Tolerance: Accommodates axial, radial, and angular shaft deviations
Customizable Specifications: Available in various sizes and configurations
- Â
Description
The XL Series Star Flexible Rubber Shaft Coupling represents advanced engineering in power transmission technology, specifically designed to excel in both uniform and non-uniform operating conditions across numerous industrial sectors. This flexible jaw coupling utilizes an innovative curved jaw geometry with a star-shaped pattern that distributes stress evenly across the elastomeric spider element, enabling superior torque transmission while protecting connected equipment from damaging vibrations and shock loads.
Ideal for applications in mining, metallurgical, cement, chemical, and construction industries, this shaft coupling demonstrates exceptional performance in equipment such as conveyor systems, hydraulic pumps, centrifugal fans, crushers, and compressors. The coupling’s robust construction, combined with its vibration-damping capabilities and maintenance-free operation, makes it a cost-effective solution for enhancing equipment reliability and reducing downtime in demanding industrial environments. With easy installation and long service life, this star flexible rubber shaft coupling offers reliable power transmission for motors and industrial machinery.
Â
Specifications
| Parameter | Details |
|---|---|
| Model Series | XL/LX Series |
| Structure | Jaw/Spider (Star Curved Jaw Design) |
| Body Material | Stainless Steel, 45# Steel, Aluminum, Gray Iron |
| Spider Material | Urethane, Hytrel (Various Durometers) |
| Flexible or Rigid | Flexible |
| Standard or Nonstandard | Standard |
| Surface Treatment | Blackening |
| Color Options | Multiple Colors Available |
| Customized Support | OEM Services Available |
Advantages
| Advantage | Description |
|---|---|
| High Torque Capacity | Star curved jaw design provides superior torque transmission in compact dimensions |
| Excellent Vibration Damping | Effectively minimizes torsional vibrations and absorbs shock loads |
| Wide Misalignment Compensation | Accommodates axial, radial, and angular shaft misalignments |
| Maintenance-Free Operation | No lubrication required, reducing operational costs and downtime |
| Long Service Life | Durable materials and optimized design ensure extended operational lifespan |
| Versatile Applications | Suitable for various industrial sectors and equipment types |
| Easy Installation | Simple three-piece design allows for quick assembly and maintenance |
Â
star flexible rubber shaft coupling for industrial motors
flexible jaw coupling for hydraulic pump systems
XL series shaft coupling for conveyor equipment
curved jaw coupling with elastomeric spider
high torque flexible jaw coupling for crushers
maintenance free rubber shaft coupling
customizable star flexible coupling for mining
vibration damping jaw coupling for compressors
Product Show

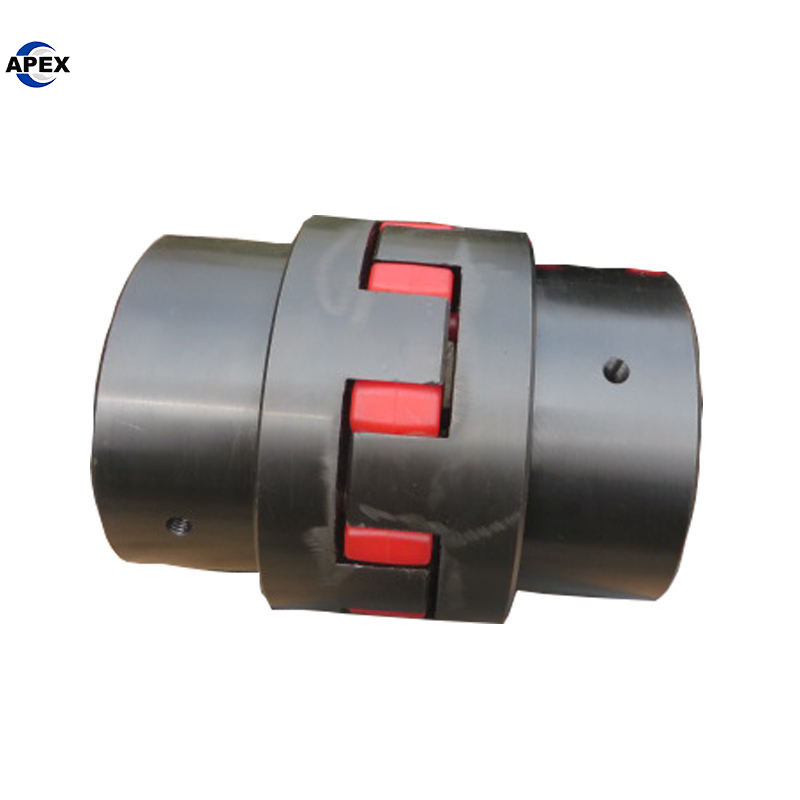

Steel Xl Star Flexible Rubber Shaft Coupling for Motor
