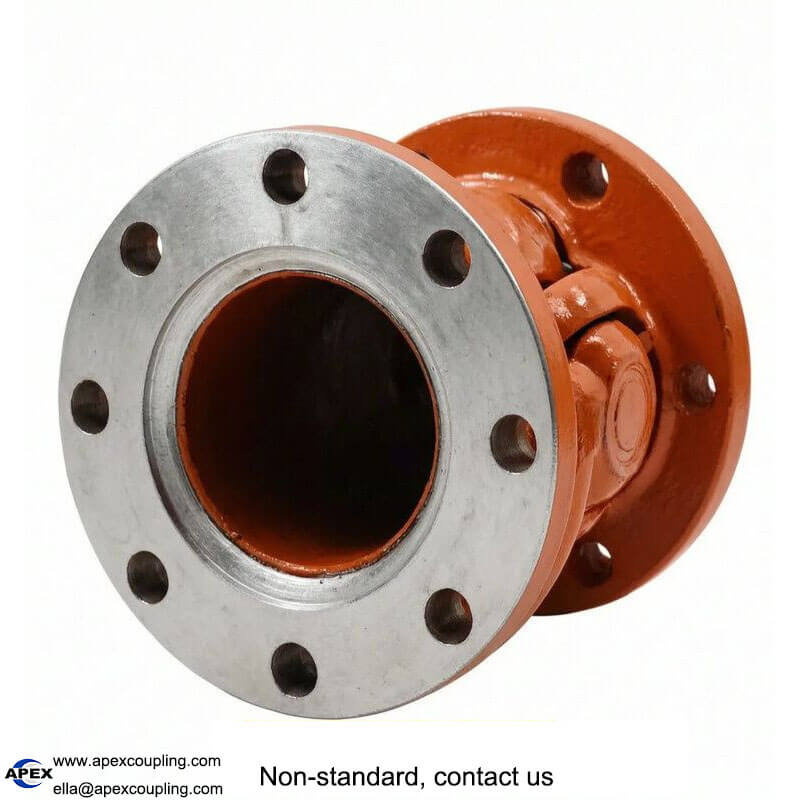

WD Type Universal Joint Coupling – Forged Steel Flange Yoke Cross Shaft Cardan Joint
Factory Direct | Forged Steel (45#) | Flange Yoke Design | 180mm 10-Hole Flange | Heavy-Duty | Custom Manufacturing

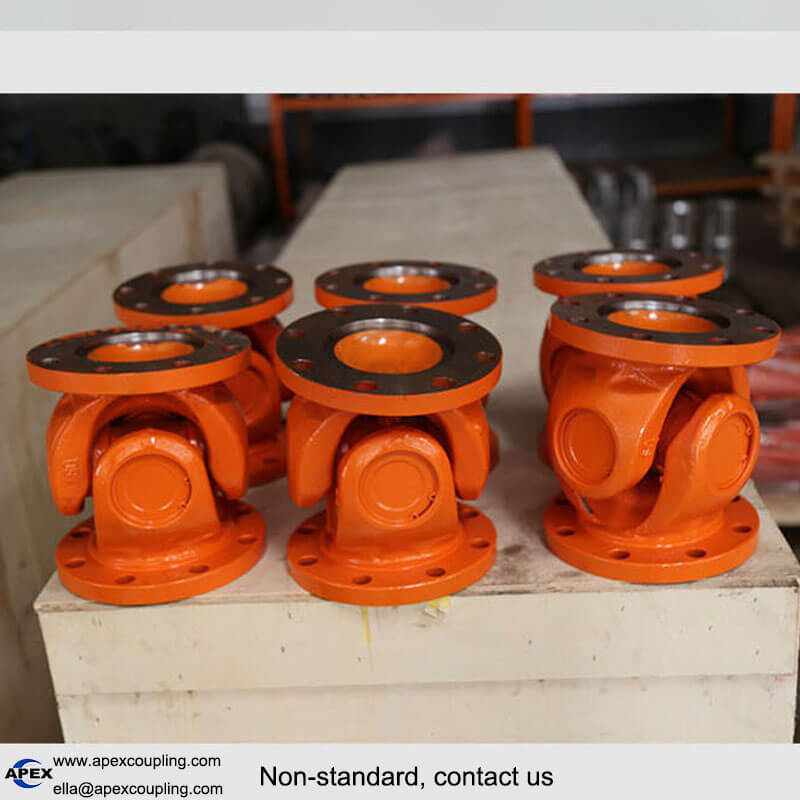

Product Overview
The WD Type Universal Joint Coupling is a robust, heavy‑duty cardan joint designed for transmitting torque between shafts at an angle. Featuring a forged steel flange yoke and cross shaft construction, this coupling is built for high‑load industrial applications where reliability, durability, and smooth power transmission are critical.
Manufactured from high‑quality 45# forged steel, the WD coupling offers higher strength and deformation resistance compared to cast alternatives. The flange yoke design allows for easy installation and secure connection to driven equipment. With a 180mm flange diameter and 10 bolt holes, this model provides a stable and powerful interface for demanding machinery.
The WD universal joint coupling is ideal for heavy industrial equipment, rolling mills, cranes, conveyors, pumps, and other applications requiring angular compensation and reliable torque transfer.
📧 Get a Quote: ella@apexcoupling.com

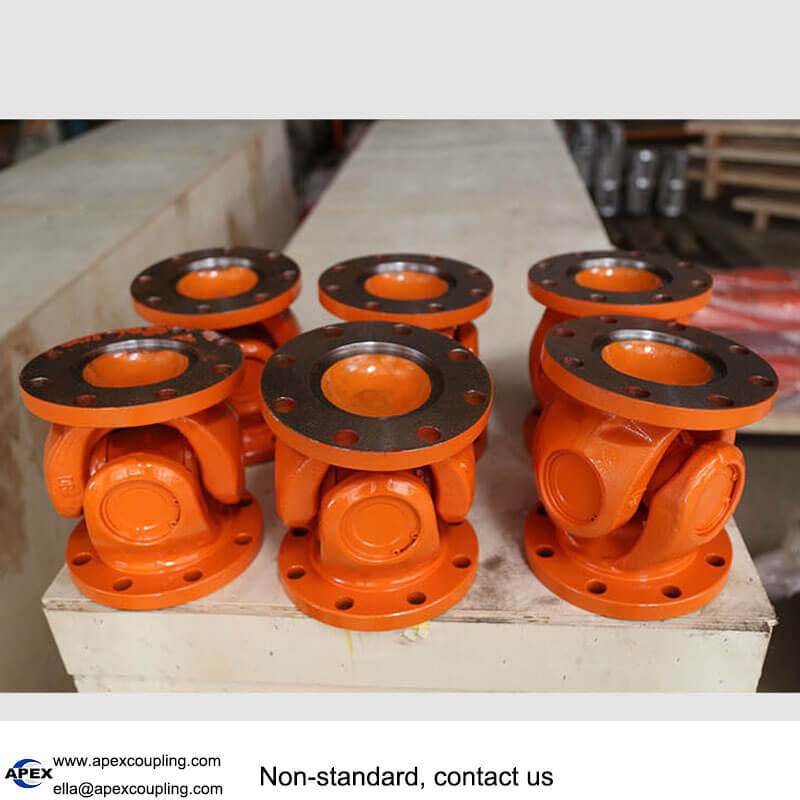

Key Features
| Feature | Benefit |
|---|---|
| 45# Forged Steel Construction | Higher strength and deformation resistance; withstands high impact and heavy loads |
| Flange Yoke Design | Easy bolt‑on installation; secure and stable connection to machinery |
| Cross Shaft & Needle Bearings | Smooth rotation, low friction, and long service life |
| Large Angular Compensation | Universal joint design allows flexible transmission at various angles |
| Precision Machining | Accurate dimensions, high concentricity, and reliable fit |
| Heavy‑Duty Load Capacity | Designed for high‑intensity industrial working environments |
| Wear‑Resistant | Long service life with minimal maintenance |
| Smooth & Quiet Operation | Excellent dynamic balance, low vibration, and low noise |
| Batch Stock Available | Fast delivery for urgent production needs |
| Custom Manufacturing | Non‑standard sizes, flange patterns, and bore configurations available |
Technical Specifications
| Parameter | Details |
|---|---|
| Model | WD Type Cross Shaft Universal Joint Coupling |
| Coupling Type | Universal Joint / Cardan Joint |
| Material | 45# Forged Steel |

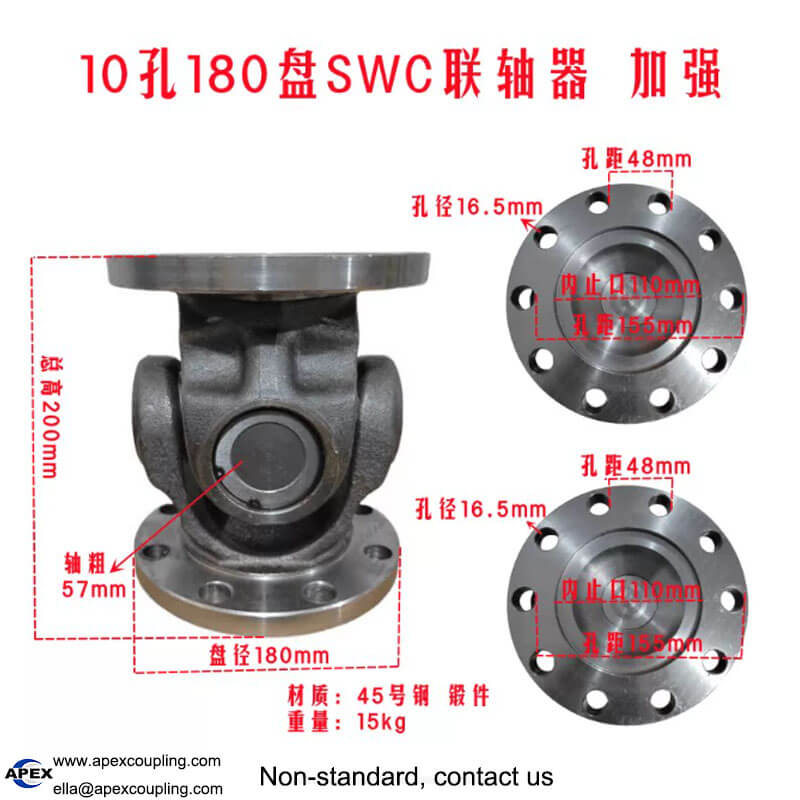

| Flange Diameter | 180 mm |
| Flange Bolt Pattern | 10 holes, pitch circle 155 mm, hole diameter 16.5 mm |
| Centering Recess (Spigot) | 110 mm |
| Overall Height | 200 mm |
| Shaft Diameter (Yoke) | 57 mm |
| Weight | 15 kg |
| Rated Torque | 100 N·m |
| Max Speed | 100 rpm |
| Bore Diameter | 100 mm (customizable) |
| Misalignment Compensation | Radial, axial (1 mm), angular |
| Surface Treatment | Sandblasting + painting (standard) |
| Protection Level | IP65 |
| Maintenance Interval | 100 hours |
| Overload Protection | Not supported |
| Certification | ISO Certified |
| Place of Origin | Henan, China |
How to Measure & Order

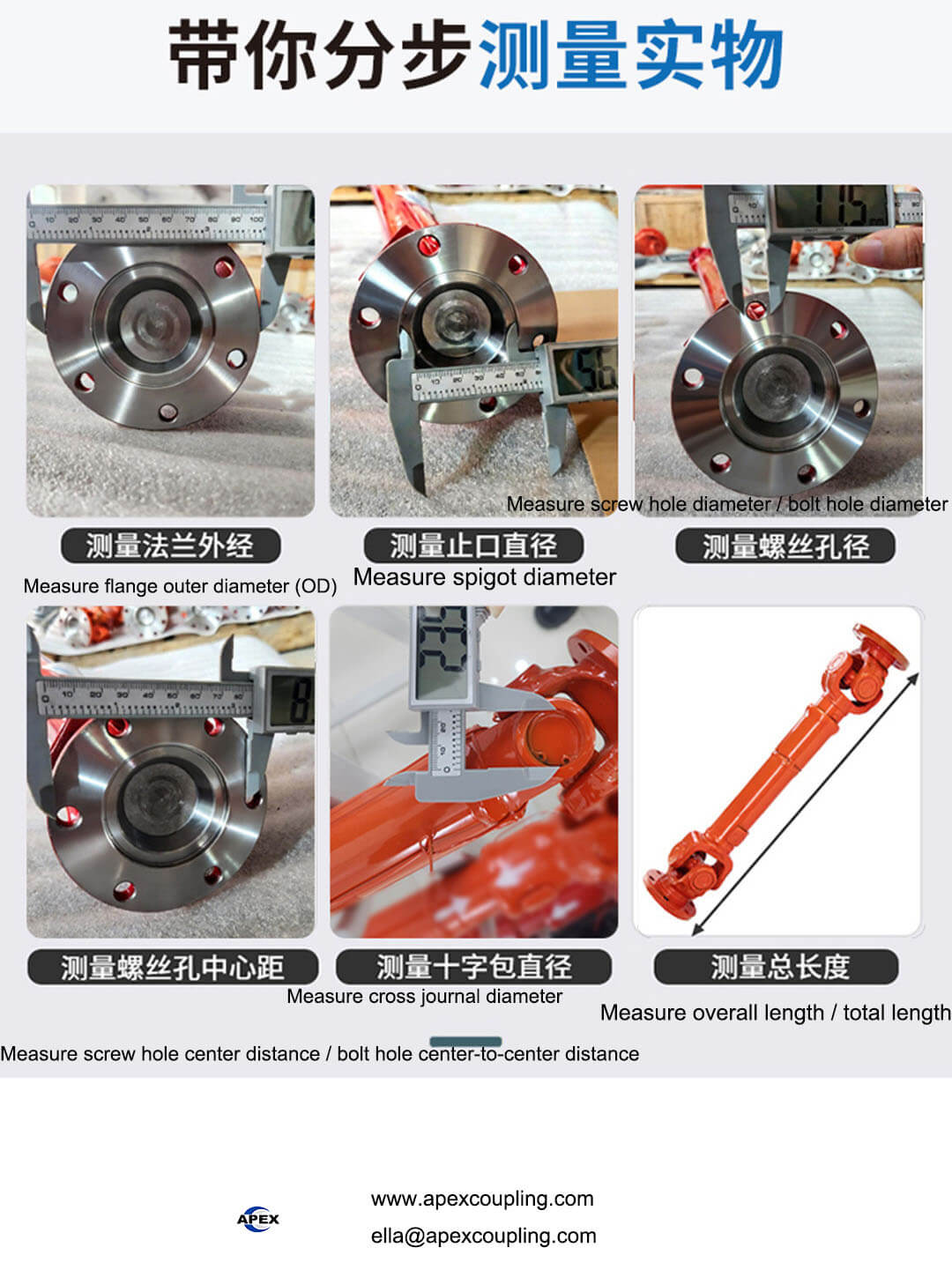

To ensure the correct fit, please provide the following dimensions:
Flange outer diameter
Bolt hole center distance (pitch circle)
Spigot / centering recess diameter
Cross journal diameter
Bolt hole diameter
Overall length
Send us your drawing or measurements for a quick quotation.
Applications
The WD type universal joint coupling is widely used in:
Heavy Industrial Machinery – Rolling mills, presses, and forging equipment
Cranes & Lifting Equipment – Hoists, winches, and crane drives
Conveyors & Material Handling – Bulk material conveyors and feeders
Pumps & Compressors – Industrial pump and compressor drives
Marine & Offshore – Propulsion and deck machinery
Metallurgical Equipment – Continuous casting and rolling lines
Construction Machinery – Heavy construction and earthmoving equipment
General Industrial Drives – Where angular misalignment and high torque are present
Why Choose Apexcoupling?
🏭 Factory Direct – Integrated manufacturing and trading, no middlemen
🔩 Premium Forged Steel – 45# forged steel for superior strength and durability
⚙️ Precision Machining – Accurate dimensions and high concentricity
📦 Batch Stock – Ample inventory for fast delivery and urgent orders
🛠️ Full Customization – Non‑standard sizes, flange patterns, and bores
✅ ISO Certified – Quality assurance throughout production
💰 Competitive Pricing – Factory direct prices with reliable after‑sales support
💬 Expert Support – Our team helps you select the right coupling for your application
Custom & Non‑Standard Orders
We specialize in custom manufacturing for universal joint couplings:
Custom flange diameters and bolt patterns
Custom bore diameters and keyways
Special overall lengths and shaft diameters
Alternative materials (e.g., alloy steel, stainless steel)
Drawing‑based production
OEM/ODM with your branding
📧 Send your drawing or requirements to: ella@apexcoupling.com
Get a Quote Today
Ready to order or need more information? Contact us directly:
📧 Email: ella@apexcoupling.com
We reply within 24 hours with pricing, availability, and technical recommendations.
Product Tags: WD universal joint coupling, flange yoke universal joint, forged steel cardan joint, cross shaft universal joint, 10-hole flange coupling, heavy duty universal joint, WD cardan shaft coupling, custom universal joint, industrial universal joint, 180mm flange universal joint

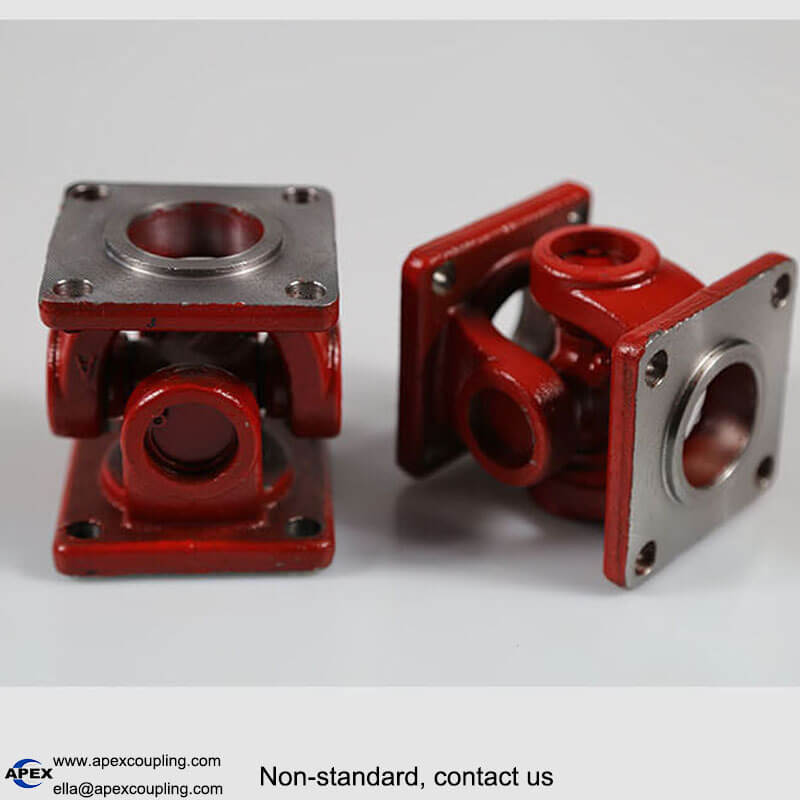

| No. | Specification (English) |
|---|---|
| 1 | 50*62 Square Flange, External Spigot 60 |
| 2 | 50*69 Square Flange, External Spigot 65 |
| 3 | 52*52 Square Flange, External Spigot 42 |
| 4 | 52*52 Square Flange, External Spigot 42, Thickened Shaft |
| 5 | 56*56 Square Flange, External Spigot 45 |
| 6 | 58*80 Square Flange, External Spigot 80 |
| 7 | 60*60 Square Flange, External Spigot 45, Height 80 |
| 8 | 60*70 Square Flange, External Spigot 60 |
| 9 | 62*73 Square Flange, External Spigot 70 |
| 10 | 77*92 Square Flange, External Spigot 95 |
| 11 | 88*112 Square Flange, External Spigot 108 |
| 12 | 6 Holes, 100 Disc, 130 High, Internal Spigot |
| 13 | 8 Holes, 120 Disc, 145 High, Internal Spigot |
| 14 | 6 Holes, 130 Disc, 145 High, External Spigot |
| 15 | 6 Holes, 155 Disc, 180 High, External Spigot |
| 16 | 8 Holes, 150 Disc, 155 High, External Spigot |
| 17 | 8 Holes, 150 Disc, 155 High, Internal Spigot |
| 18 | 8 Holes, 165 Disc, 180 High, External Spigot |
| 19 | 8 Holes, 165 Disc, 200 High, Internal Spigot |
| 20 | 8 Holes, 180 Disc, 180 High, Internal Spigot |
| 21 | 8 Holes, 180 Disc, 200 High, Internal Spigot |
| 22 | 10 Holes, 180 Disc, 180 High, Internal Spigot |
| 23 | 10 Holes, 180 Disc, 200 High, Internal Spigot |
| 24 | Non-standard customization, please contact customer service |
