UNKA / CSKA / CSKW Series Precision Pin & Needle Bearing Universal Joint | 42CrMo Alloy Steel Cardan Shaft Coupling

Model Number
Check below, custom

CSKASingle fixedkeyway type
CSKWDouble fixedkeyway type

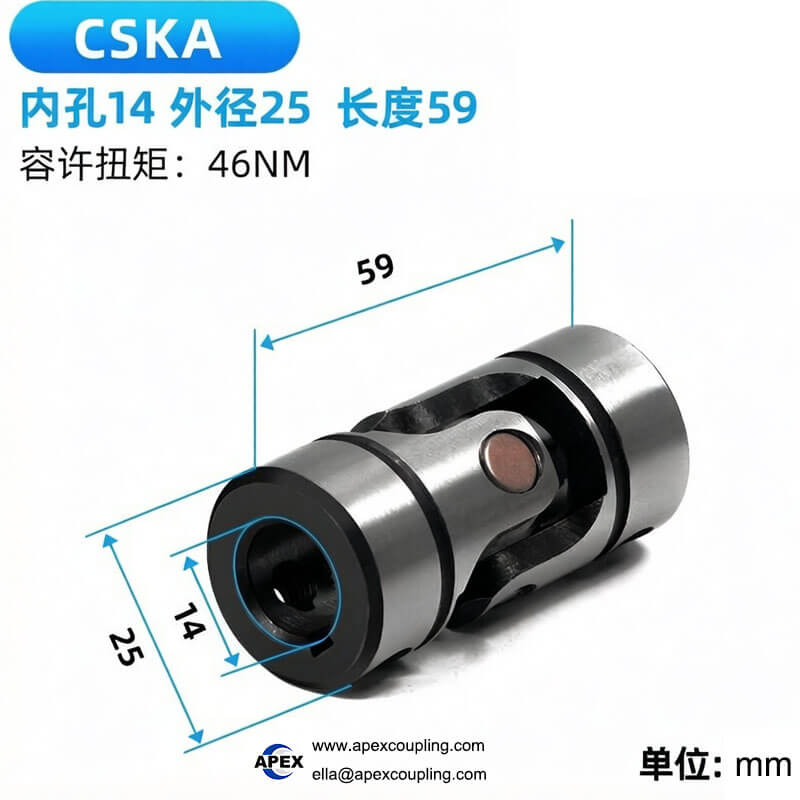

Model	Type	Outer Diameter (mm)	Length (mm)	Inner Diameter (mm)
UNKA10	Single	20	42	10
UNKA12	Single	23	52	12
UNKA14	Single	25	59	14
UNKA16	Single	32	74	16
UNKA20	Single	36	87	20
UNKW10	Double	20	67.5	10
UNKW12	Double	23	83	12
UNKW14	Double	25	94.5	14
UNKW16	Double	32	117.5	16
UNKW20	Double	36	139	20

Product Description

[Header: High-Precision Transmission & Flexibility: UNKA / CSKA / CSKW Universal Joint Series]

The Apexcoupling UNKA / CSKA / CSKW Series Precision Universal Joint is designed for factory automation (FA) drive systems demanding high torque density, accurate bidirectional rotational response, and large angular deflection capabilities. Forged from high-grade 42CrMo alloy steel and heat-treated for enhanced fatigue and shock resistance, these pin-type and needle-bearing cross joints deliver continuous mechanical power transmission under harsh operating conditions.

Featuring H7 precision inner bores for exceptional concentricity and minimal backlash, the series includes both single-joint (CSKA) and double-joint (CSKW) options. Normal operating angles cover up to 30°–40° with limit working angles reaching 45°, providing ideal alignment compensation for industrial drives, packaging machinery, and multi-axis automated equipment.

[Core Product Advantages / Unique Selling Points]

High-Strength 42CrMo Alloy Steel: Heat-treated structure provides high tensile strength, fatigue resistance, and durability under repeated impact loads.
Precision H7 Inner Bore Tolerance: Controlled bore tolerances ensure tight shaft engagement, high concentricity, and smooth power transfer.
Large Angle Compensation: Supports working angles up to 30°–40° in normal operation (with a limit angle up to 45°), reducing drive system stress.
Bidirectional Rotational Accuracy: FA-standard design enables fast response during both clockwise and counterclockwise rotational cycles.
Low Backlash & Low Operational Noise: Precision-fitted pin and bearing assemblies deliver tight mechanical engagement and quiet drive performance.
Versatile Surface Finishing Options: Standard finishes include polished natural steel and black oxide, with custom nickel-plating, zinc-plating, or 304 stainless steel construction available on request.
Direct Factory Custom Sourcing: Full OEM/ODM/OBM customization support for non-standard bore sizes, custom lengths, keyways, and protective rubber boot (CSC/CSW) options.

[Technical Specifications Table]

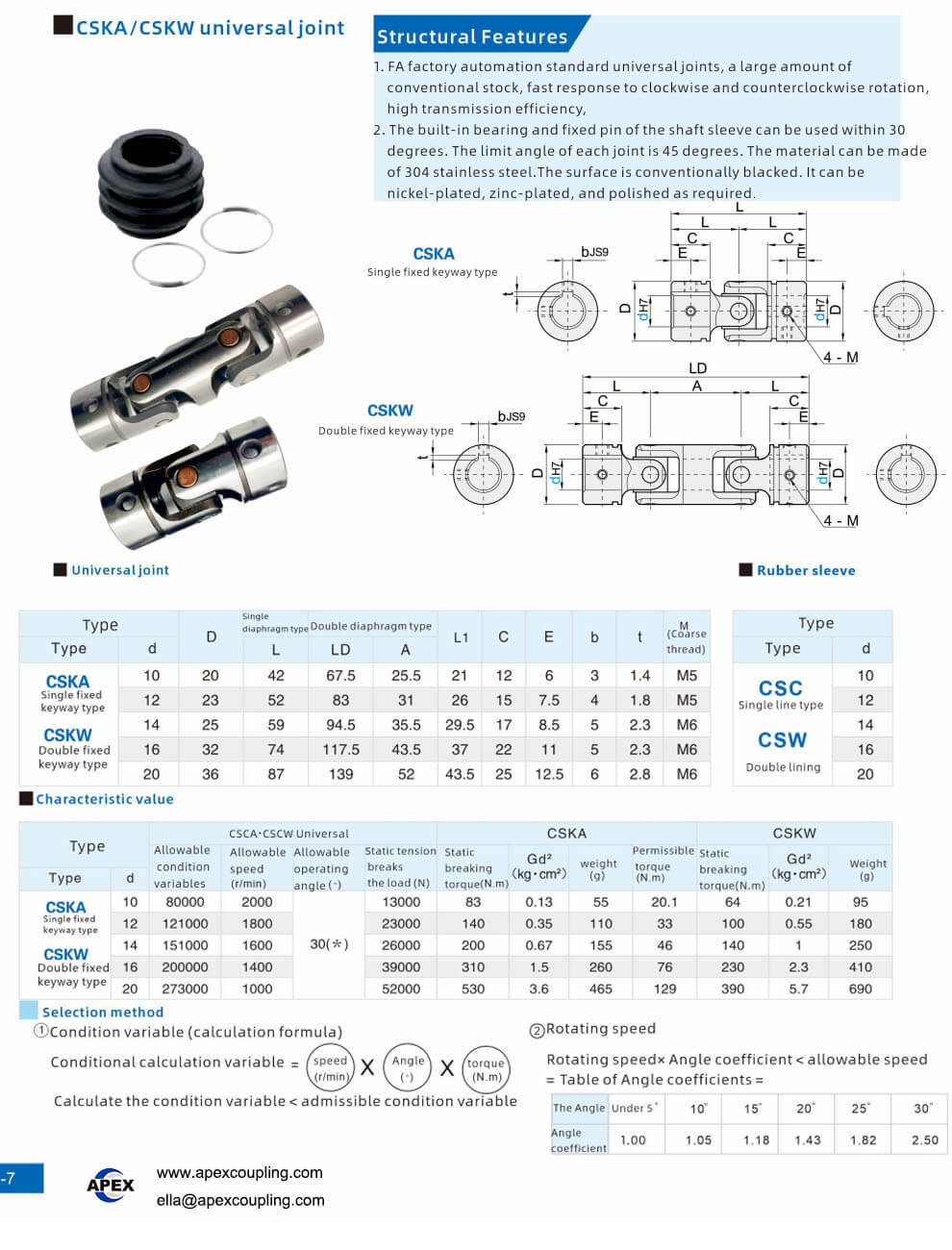

Attribute	Specification Details (As Detailed in Provided Info & Parameter Images)
Product Models / Ordering Code	UNKA Series (CSKA Single Joint / CSKW Double Joint)
Coupling Type	Precision Pin / Cross Needle Bearing Universal Joint
Main Material	42CrMo Alloy Steel (304 Stainless Steel options available)
Bore Size Options (d)	10 mm, 12 mm, 14 mm, 16 mm, 20 mm (Custom sizes available)
Outer Diameters (D)	20 mm to 36 mm
Single Joint Length (L / CSKA)	42 mm to 87 mm
Double Joint Length (LD / CSKW)	67.5 mm to 139 mm
Allowable Speed Range	1,000 RPM to 2,000 RPM (Model dependent)
Operating Angle Range	Standard working angle 30° to 40° (Limit angle 45°)
Permissible Torque (CSKA)	20.1 N·m to 129 N·m
Static Breaking Torque	Up to 530 N·m (CSKA) / 390 N·m (CSKW)
Bore Tolerance & Fixing	H7 Precision Bore Tolerance; Single/Double Fixed Keyway (Set Screw M5/M6)
Surface Treatments	Black Oxide, Polished Natural, Nickel-Plated, Zinc-Plated
