Premium Universal Joints for Sale - Double Structure Cardan Drive Shaft Coupling

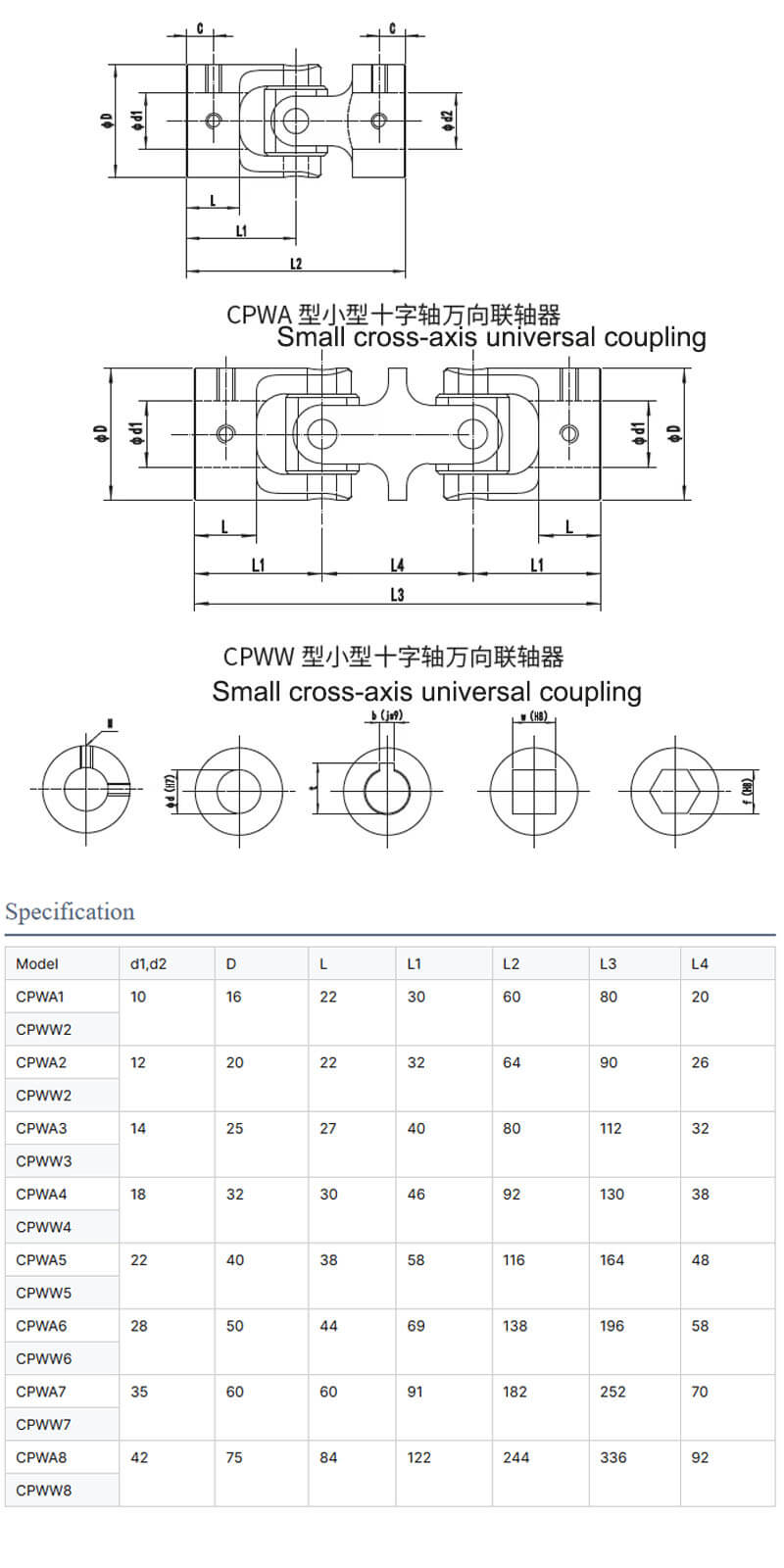

Model Number
CPWA1
CPWA2
CPWA3
CPWA4
CPWA5
CPWA6
CPWA7
CPWA8
CPWW1
CPWW2
CPWW3
CPWW4
CPWW5
CPWW6
CPWW7
CPWW8
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Feature | Description |
|---|---|
| High-Strength Material | 42CRMO steel construction with 50HRC hardness for maximum durability |
| Double Joint Structure | Enhanced flexibility and torque transmission capability |
| Wide Angular Range | 45° operating angle for significant misalignment compensation |
| Precision Engineering | H7 tolerance ensures perfect fit and reliable performance |
| Multiple Bore Options | Keyway, square, hexagonal, and splined customizations available |
| High Torque Capacity | 11.2-1120Nm torque range suitable for heavy-duty applications |
| Quality Certified | ISO9001 and BV certificates guarantee product reliability |
Product Details
| Specification | Details |
|---|---|
| Product Name | Universal Joint Coupling |
| Structure | Double Pin & Block Joint |
| Material | 42CRMO Steel |
| Operating Angle | 45° |
| Inner Hole Diameter | 10-42mm |
| Outer Diameter | 16-75mm |
| Torque Range | 11.2-1120Nm |
| Hardness | 50HRC |
| Tolerance | H7 |
| System of Measurement | Metric |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
Product Applications
| Industry | Specific Applications |
|---|---|
| Agriculture | Tractor PTO systems, farming equipment, irrigation systems |
| Construction | Excavators, cranes, concrete mixers, construction vehicles |
| Mining | Mining equipment, drilling rigs, conveyor systems |
| Energy Sector | Power generation equipment, transmission systems |
| Home Workshops | DIY projects, small power tools, garage equipment |
| Retail Equipment | Commercial machinery, display systems |
| General Industry | Various mechanical systems requiring flexible shaft connections |
Additional Information
Place of Origin: Guangdong, China
Packaging: Carton Box + Wooden Box for optimal protection
Shipping: Single item units available
Quality Assurance: Rigorous testing and quality control procedures
Technical Support: Comprehensive engineering consultation available
Product Show
"universal joints for agricultural machinery", "double universal joints for sale", "heavy duty universal joints 42CRMO", "custom universal joints with keyway", "universal joints for construction equipment", "high torque universal joints for sale"
Double Structure Universal Gimbal Cardan Drive Shaft Coupling with Steering Universal Joint Pin Block Universal Joints Coupling
