Universal Coupling Joint: The Precision-Engineered Solution for Reliable Angular Power Transmission

In the field of mechanical power transmission, the universal coupling joint stands as an essential component for connecting shafts that are not perfectly aligned. Also known as a universal joint or U-joint, this ingenious device enables smooth torque transfer while accommodating angular misalignment, making it indispensable in countless industrial applications. The UNKA and UNKW series universal coupling joint from Apex Coupling represents the pinnacle of this engineering achievement, combining precision manufacturing with premium materials to deliver exceptional performance in FA factory automation, general machinery, and beyond.

Superior Materials for Extended Service Life

What sets our universal coupling joint apart is the meticulous attention to material quality and manufacturing precision:

• 42CrMo Alloy Steel Construction: The yokes and critical components are forged from 42CrMo alloy steel, a material renowned for its high strength and toughness. After heat treatment, this material provides excellent fatigue resistance and withstands repeated impact loads, ensuring long-term durability even in demanding applications.

• H7 Precision Bores: All finished bores are machined to H7 tolerance, ensuring minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment, reduces backlash, and maximizes power transmission efficiency. Every universal coupling joint benefits from this precision.

• Rivet and Circlip Design: Each universal coupling joint includes matching pins and circlips, ensuring secure assembly and reliable operation under varying loads. For higher speed requirements, needle bearing options are available.

Precision Engineering for Optimal Performance

Every universal coupling joint from Apex Coupling is manufactured to exacting standards:

• Large Angle Compensation: Each joint section accommodates up to 40° operating angle for normal use, with a maximum angle of 45° per joint. This exceptional angular flexibility allows for complex drive layouts and compensates for installation misalignment while simultaneously accommodating radial and angular deviations.

• Low Noise Operation: Precision-matched components ensure tight clearances and smooth rotation, resulting in quiet operation even at higher speeds. The careful attention to fit and finish makes our universal coupling joint ideal for applications where noise must be minimized.

• Quick Response: The design provides rapid response in both clockwise and counterclockwise rotation, with high transmission efficiency ideal for automation applications. This makes the universal coupling joint perfect for servo-driven systems and precision positioning equipment.

• Bearing Options: Standard pin-type construction for general applications up to 1000 RPM, with needle bearing options available for higher speed requirements up to 4000 RPM.

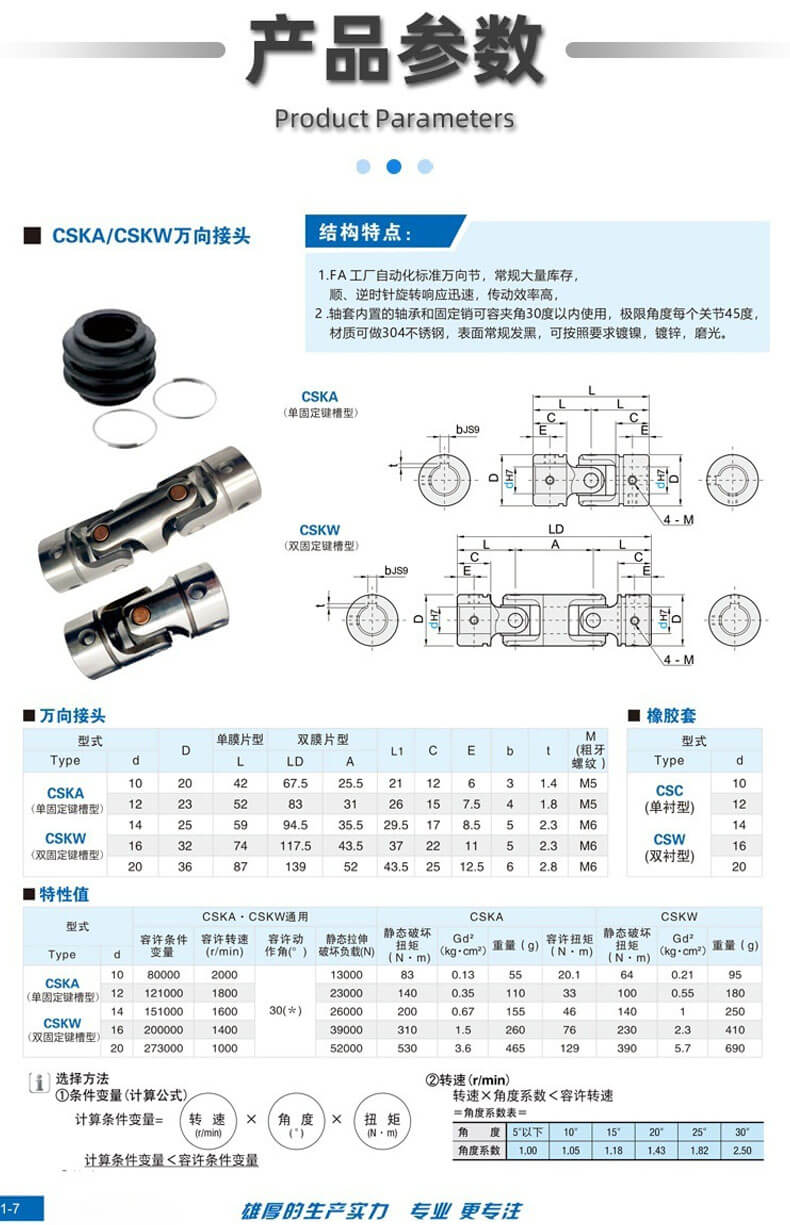

Comprehensive Size Range

Our UNKA/UNKW series universal coupling joint is available in a complete range of sizes:

UNKA Series (Single Joint – Universal Coupling Joint):

• UNKA10: Outer Dia 20mm × Length 42mm – Bore 10mm

• UNKA12: Outer Dia 23mm × Length 52mm – Bore 12mm

• UNKA14: Outer Dia 25mm × Length 59mm – Bore 14mm

• UNKA16: Outer Dia 32mm × Length 74mm – Bore 16mm

• UNKA20: Outer Dia 36mm × Length 87mm – Bore 20mm

UNKW Series (Double Joint – Universal Coupling Joint):

• UNKW10: Outer Dia 20mm × Length 67.5mm – Bore 10mm

• UNKW12: Outer Dia 23mm × Length 83mm – Bore 12mm

• UNKW14: Outer Dia 25mm × Length 94.5mm – Bore 14mm

• UNKW16: Outer Dia 32mm × Length 117.5mm – Bore 16mm

• UNKW20: Outer Dia 36mm × Length 139mm – Bore 20mm

Surface Treatment Options

Our universal coupling joint is available with various surface finishes to suit different environmental requirements:

• Natural Polished: Standard finish for general applications where a clean, bright appearance is desired.

• Blackening: Enhanced corrosion resistance with professional black finish – the most common choice for universal coupling joint applications.

• Nickel Plating: Premium corrosion protection for demanding environments requiring additional durability.

• Zinc Plating: Cost-effective protection against rust for standard industrial use.

• Custom Finishes: Available upon request for specialized applications requiring specific surface properties.

Ideal Applications Across Industries

The versatility of our universal coupling joint makes it suitable for numerous applications:

• FA Factory Automation: Precision motion control for automated assembly lines, robotic systems, pick-and-place machines, and material handling equipment.

• General Machinery: Reliable power transmission for various industrial machines.

• Packaging Equipment: Smooth, efficient drives for labeling, filling, and sealing machinery.

• Textile Machinery: Durable connections for looms, spinning frames, and finishing equipment.

• Printing Presses: Precision drives requiring accurate registration.

• Woodworking Machinery: Flexible connections for saws, planers, and routers.

• Medical Devices: Precision connections for diagnostic and therapeutic equipment.

Quality Assurance and Availability

Every universal coupling joint from Apex Coupling is manufactured under strict quality control:

• Large Inventory: Regular stock maintained for quick delivery of standard sizes.

• Customization: OEM, ODM, and OBM support for specialized requirements including custom bore sizes, lengths, and materials.

• Materials: Standard 42CrMo alloy steel with options for 304 stainless steel for corrosive environments.

• Surface Treatment: Multiple finishes available including natural polished, blackening, nickel, and zinc plating.

Why Choose Apex Coupling for Your Universal Coupling Joint Needs?

• Premium Materials: 42CrMo alloy steel ensures exceptional durability.

• Precision Manufacturing: H7 bores guarantee accurate fit and minimal backlash.

• Complete Range: Comprehensive sizes from UNKA10 to UNKA20 and UNKW10 to UNKW20.

• FA Factory Automation Focus: Designed specifically for automation applications requiring reliable universal coupling joint performance.

• Factory Direct: Competitive pricing with extensive inventory for fast delivery.

• Technical Support: Engineering assistance for selection and application of the right universal coupling joint for your needs.

Ready to Order Your Universal Coupling Joint?

Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium universal coupling joints. Experience the Apex difference in quality, precision, and service.
