Universal Joint Manufacturer: Your Trusted Partner for Precision Power Transmission Components

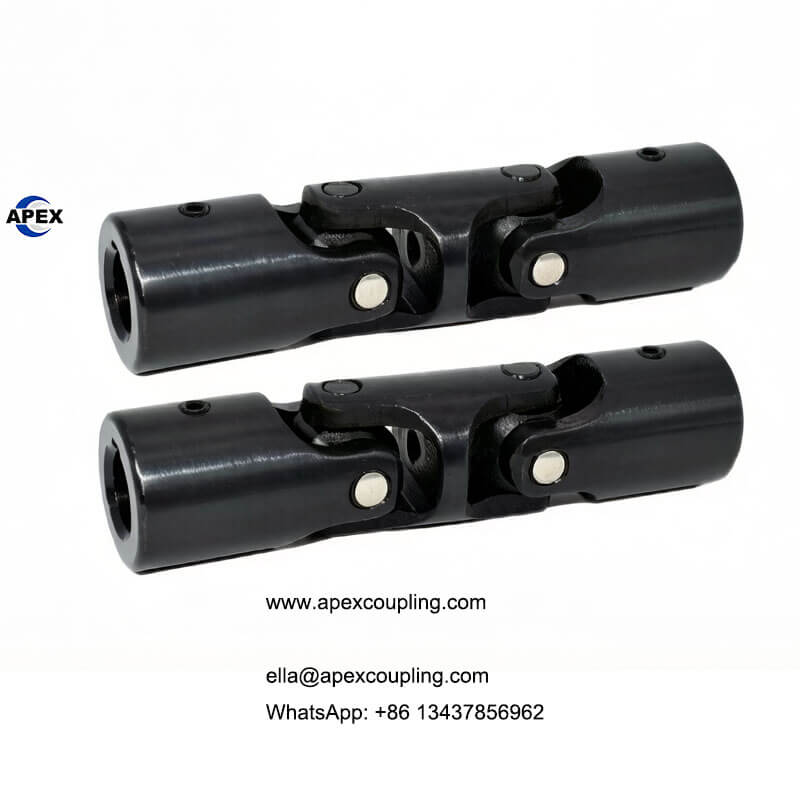

As a professional universal joint manufacturer, Apex Coupling combines decades of engineering expertise with advanced manufacturing capabilities to deliver high-quality universal joints that meet the most demanding application requirements. Our WX/WXD series small universal joints represent the culmination of this expertise, featuring premium materials, precision manufacturing, and reliable performance. Whether you need standard components for industrial machinery or custom solutions for specialized applications, as a leading universal joint manufacturer, we provide the quality and reliability you deserve.
Why Choose Apex Coupling as Your Universal Joint Manufacturer?
As an experienced universal joint manufacturer, we distinguish ourselves through our commitment to quality, precision, and customer satisfaction:
Factory Direct Manufacturing: We control every aspect of production, ensuring consistent quality and competitive pricing without middleman markups. Our fully CNC machining capabilities guarantee precision and stability.
Engineering Expertise: Our team specializes in power transmission components, with years of experience in designing and manufacturing universal joints for diverse industries.
Comprehensive Quality Control: Every universal joint undergoes rigorous testing before shipment, with strict quality inspection to ensure stable performance and excellent reliability.
Customization Capabilities: We offer complete OEM, ODM, and OBM services, accepting drawings or samples for non-standard customization.
Premium Materials for Superior Performance
What sets our WX/WXD series universal joint apart is the meticulous attention to material quality:
40Cr Alloy Steel Construction: The yokes and critical components are manufactured from 40Cr alloy steel, a material renowned for its precision wear resistance and durability. For enhanced performance, 35CrMo options are available for precision and durability applications requiring high-end materials with professional heat treatment.
H7 Precision Bores: All finished bores are machined to H7 tolerance, ensuring finished hole tolerance with minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment and maximizes power transmission efficiency.
JB/T5901-1991 Standard: Our WX/WXD series universal joints are manufactured in accordance with JB/T5901-1991 standards, ensuring compatibility and interchangeability with industry-standard components.
Precision Engineering for Optimal Performance
Every universal joint from our manufacturing facility is engineered to exacting standards:
Large Angle Compensation: Each joint section accommodates up to 45° maximum shaft angle, with allowable angle variation within a limited range as operating conditions require. Suitable for connecting shafts on the same plane with axis angles ≤45°.
Torque Range: Nominal torque from 11.2 to 1120 N.m, with customization available for higher torque requirements.
Bore Options: Standard finished bores with H7 tolerance. Keyways, hexagon holes, and square holes available upon request. Other hole types available as specified.
Comprehensive Quality Inspection: All products undergo strict quality testing before shipment to ensure stable quality and excellent performance.

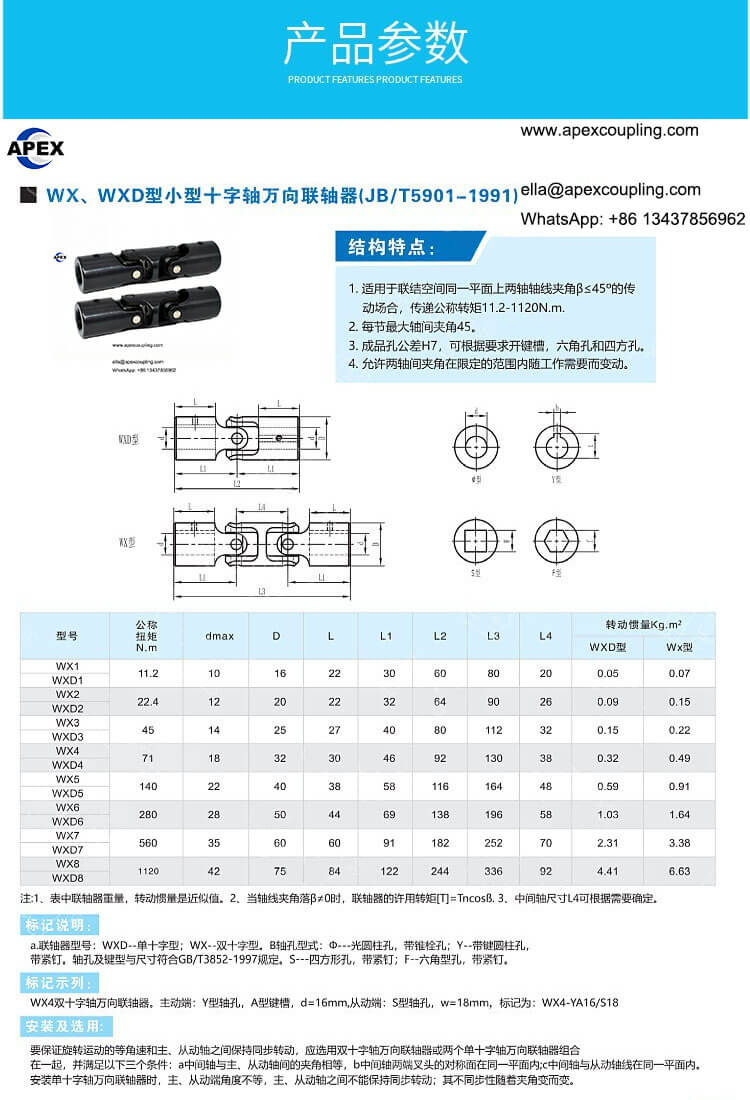

Complete Size Range
Our WX/WXD series small universal joints are available in a complete range of sizes:
WXD Series (Single Joint):
WXD1: Outer Dia 16mm × Length 60mm – Bore 10mm
WXD2: Outer Dia 20mm × Length 64mm – Bore 12mm
WXD3: Outer Dia 25mm × Length 80mm – Bore 14mm
WXD4: Outer Dia 32mm × Length 92mm – Bore 18mm
WXD5: Outer Dia 40mm × Length 116mm – Bore 22mm
WXD6: Outer Dia 50mm × Length 138mm – Bore 28mm
WXD7: Outer Dia 60mm × Length 182mm – Bore 35mm
WX Series (Double Joint):
WX1: Outer Dia 16mm × Length 80mm – Bore 10mm
WX2: Outer Dia 20mm × Length 90mm – Bore 12mm
WX3: Outer Dia 25mm × Length 112mm – Bore 14mm
WX4: Outer Dia 32mm × Length 130mm – Bore 18mm
WX5: Outer Dia 40mm × Length 164mm – Bore 22mm
WX6: Outer Dia 50mm × Length 196mm – Bore 28mm
WX7: Outer Dia 60mm × Length 252mm – Bore 35mm
WX8: Outer Dia 75mm × Length 336mm – Bore 42mm
Key Advantages of Our Universal Joints
Precision Wear Resistance: 40Cr material ensures long service life under demanding conditions.
Master Craftsmanship: Professional manufacturing with attention to detail.
Volume Discounts: Competitive pricing for bulk orders.
Precision Manufacturing: Fully CNC machined for consistent quality.
Quality Assurance: Every product undergoes rigorous inspection.
Ideal Applications
Our universal joints are widely used in:
Tapping Machines: Precision power transmission for multi-spindle tapping heads.
Packaging Machinery: Reliable connections for labeling, filling, and sealing equipment.
Woodworking Machinery: Flexible drives for saws, planers, and routers.
Printing Equipment: Smooth, efficient drives for printing presses.
Textile Machinery: Durable connections for looms and finishing equipment.
Special Machinery: Custom solutions for unique industrial applications.
Quality Commitment
As a professional universal joint manufacturer, we are committed to:
Precision and Durability: Premium materials and professional heat treatment
Fully CNC Machining: Consistent quality with stable performance
Strict Quality Inspection: 100% inspection before shipment
Drawings or Samples Accepted: Non-standard customization available
Why Choose Apex Coupling as Your Universal Joint Manufacturer?
Factory Direct: Competitive pricing with quality assurance
Engineering Support: Technical assistance for selection and application
Comprehensive Range: Full series of universal joints for diverse applications
Custom Capability: Tailored solutions for unique requirements
Quality Commitment: Strict quality control and inspection processes
Ready to Partner with a Professional Universal Joint Manufacturer?
Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium universal joints. Experience the Apex difference in quality, precision, and service.
