Universal Joint Catalogue: Your Complete Guide to WX/WXD Series Small Universal Joints

In the world of mechanical power transmission, having access to comprehensive technical information is essential for selecting the right components for your application. Our universal joint catalogue provides engineers, procurement professionals, and machinery designers with detailed specifications, dimensional data, and performance characteristics for the complete WX/WXD series of small universal joints. Whether you need a single joint for a packaging machine or double joints for specialized equipment, this universal joint catalogue serves as your definitive resource for making informed decisions.

What’s Inside Our Universal Joint Catalogue?

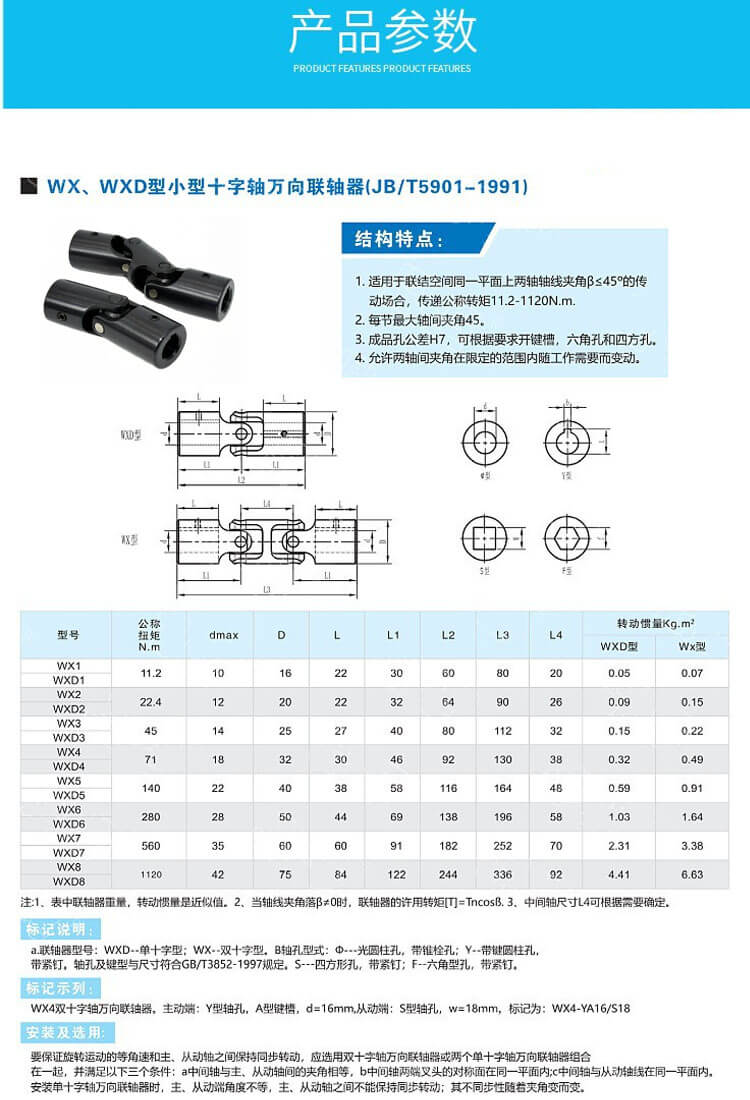

Our comprehensive universal joint catalogue features the complete WX/WXD series, manufactured in accordance with JB/T5901-1991 standards:

WXD Series (Single Joint):

• WXD1: Outer Dia 16mm × Length 60mm – Bore 10mm

• WXD2: Outer Dia 20mm × Length 64mm – Bore 12mm

• WXD3: Outer Dia 25mm × Length 80mm – Bore 14mm

• WXD4: Outer Dia 32mm × Length 92mm – Bore 18mm

• WXD5: Outer Dia 40mm × Length 116mm – Bore 22mm

• WXD6: Outer Dia 50mm × Length 138mm – Bore 28mm

• WXD7: Outer Dia 60mm × Length 182mm – Bore 35mm

WX Series (Double Joint):

• WX1: Outer Dia 16mm × Length 80mm – Bore 10mm

• WX2: Outer Dia 20mm × Length 90mm – Bore 12mm

• WX3: Outer Dia 25mm × Length 112mm – Bore 14mm

• WX4: Outer Dia 32mm × Length 130mm – Bore 18mm

• WX5: Outer Dia 40mm × Length 164mm – Bore 22mm

• WX6: Outer Dia 50mm × Length 196mm – Bore 28mm

• WX7: Outer Dia 60mm × Length 252mm – Bore 35mm

• WX8: Outer Dia 75mm × Length 336mm – Bore 42mm

Premium Materials and Precision Manufacturing

The universal joint catalogue highlights our commitment to quality through superior material selection and manufacturing processes:

• 40Cr Alloy Steel Construction: All components are manufactured from 40Cr alloy steel, a material chosen for its excellent strength, wear resistance, and durability. Some models utilize 35CrMo for enhanced performance in demanding applications. Each component undergoes professional heat treatment to optimize mechanical properties.

• H7 Precision Bores: Every universal joint features finished bores machined to H7 tolerance, ensuring minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment, reduces backlash, and maximizes power transmission efficiency.

• CNC Machining: All products are manufactured using fully CNC-controlled machining centers, ensuring consistent quality, stable performance, and precise dimensional accuracy.

• Complete Quality Inspection: Every universal joint undergoes rigorous testing before shipment, with 100% inspection to ensure reliable performance in your application.

Technical Specifications

Our universal joint catalogue provides detailed technical data:

• Operating Angle: Each joint section accommodates up to 45° maximum angle, with the ability to vary within this range as operating conditions require. Suitable for connecting shafts on the same plane with axis angles ≤45°.

• Torque Range: Nominal torque from 11.2 to 1120 N.m for standard models, with customization available for higher torque requirements.

• Bore Options: Standard finished bores with H7 tolerance. Keyways, hexagon holes, and square holes available upon request.

• Surface Treatment: Available in polished finish or blackening for corrosion protection. Custom finishes available for special requirements.

• Custom Manufacturing: Non-standard sizes and configurations welcomed – simply provide drawings or specifications.

Ideal Applications

The products featured in our universal joint catalogue are widely used in:

• Packaging Machinery: Reliable power transmission for labeling, filling, and sealing equipment

• Woodworking Machinery: Precision drives for saws, planers, and routers

• Tapping Machines: Flexible connections for multi-spindle tapping heads

• Printing Equipment: Smooth, efficient drives for printing presses

• Textile Machinery: Durable connections for looms and finishing equipment

• Special Machinery: Custom solutions for unique industrial applications

Why Request Our Universal Joint Catalogue?

• Complete Specifications: Detailed dimensional data for all WX/WXD series models

• Quality Assurance: Information on materials, heat treatment, and manufacturing processes

• Customization Options: Guidance on non-standard configurations and special requirements

• Technical Support: Engineering assistance for application-specific needs

• Factory Direct: Competitive pricing with large inventory for fast delivery

Quality You Can Trust

Every product in our universal joint catalogue reflects our commitment to excellence:

• Precision Manufacturing: All components produced on CNC equipment

• Material Quality: Premium 40Cr and 35CrMo alloy steel

• Surface Finish: Polished or blackened for corrosion resistance

• Quality Control: 100% inspection before shipment

• Custom Capability: Non-standard sizes and configurations welcomed

Request Your Free Universal Joint Catalogue Today

Don’t select universal joints without complete information. Request our comprehensive universal joint catalogue and gain access to detailed specifications, dimensional drawings, and performance data for the complete WX/WXD series. Contact Apex Coupling today to receive your free catalog, or visit www.apexcoupling.com for immediate access to product information and technical resources.
