Universal Expansion Joints: The Flexible Solution for Variable-Distance Power Transmission

In mechanical systems where shaft spacing varies during operation or where installation alignment is challenging, standard universal joints often fall short. The solution lies in universal expansion joints—specially designed couplings that combine angular flexibility with axial adjustability. The WSP Telescopic Cross Shaft Universal Joints from Apex Coupling represent the pinnacle of this technology, engineered to deliver reliable power transmission while accommodating both angular misalignment and changes in shaft distance. When your application demands universal expansion joints that can handle dynamic operating conditions, our precision-manufactured components provide the answer.

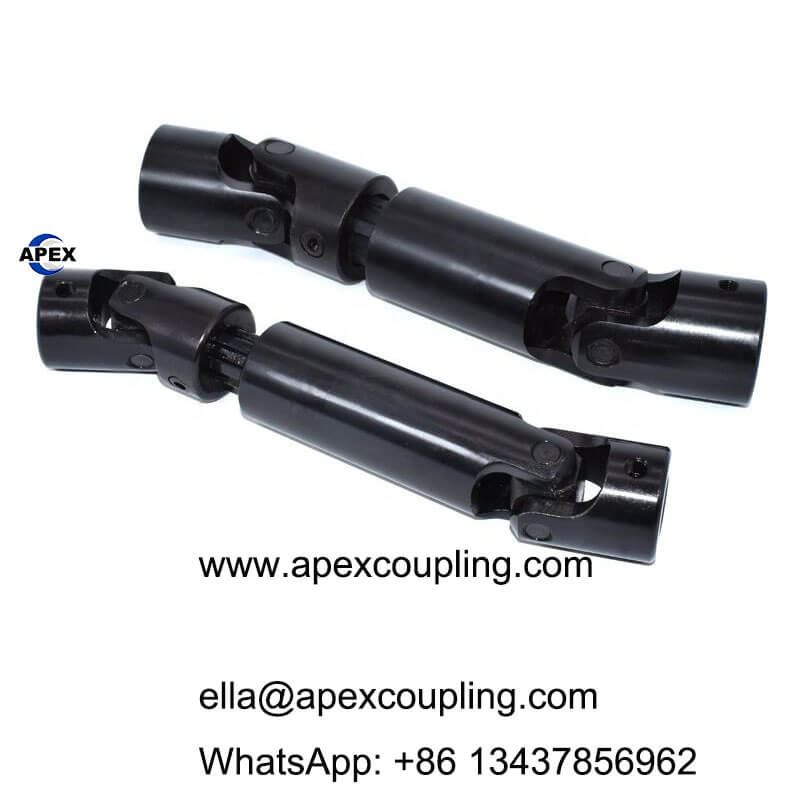

Advanced Telescopic Design for Variable Shaft Spacing

The defining feature of these universal expansion joints is their integrated telescopic capability. Unlike standard universal joints that offer only angular compensation, the WSP series incorporates a precision-engineered sliding mechanism that allows the overall length to adjust during operation. This critical feature enables the universal expansion joint to:

• Compensate for thermal expansion and contraction of connected equipment

• Absorb installation tolerances during initial setup

• Accommodate dynamic movements in machinery with moving components

• Simplify maintenance by allowing easier disconnection of drive trains

Each section of these universal expansion joints provides a maximum rotation angle of 45° , offering exceptional flexibility for complex drive layouts. The combination of angular and axial compensation makes these joints ideal for applications where shaft distance varies during normal operation.

Precision Engineering for Long-Term Reliability

Every component of our universal expansion joints is manufactured to exacting standards. The cross shafts and yokes are forged from high-strength alloy steel and undergo specialized heat treatment to achieve a surface hardness of 50 HRC. This quenched, wear-resistant construction ensures the joints maintain their dimensional stability and performance characteristics over millions of operating cycles, even under heavy loads and continuous use.

The finished bores are machined to H7 tolerance, ensuring minimal clearance and precise fit with connecting shafts. This tight tolerance reduces backlash, vibration, and wear while maximizing power transmission efficiency. Depending on your application requirements, we can provide various bore configurations, including:

• Keyway bores for positive torque transmission

• Hexagonal holes for secure anti-rotation connections

• Square holes for specialized applications

• Spline profiles for high-torque requirements

Versatile Configuration Options

Recognizing that every application has unique requirements, our universal expansion joints offer extensive customization options:

• Material Selection: Available in alloy steel for standard applications or SUS304 stainless steel for corrosive environments

• Bearing Options: Choose between needle bearings for higher speed applications or friction bearings for heavy-duty, low-speed operation

• Surface Treatment: Standard bluing or customized finishes to meet specific environmental requirements

• Travel Shaft Configurations: Options include hexagonal, splined, or hexagonal bore with spring for various axial movement characteristics

Technical Specifications

Our universal expansion joints are designed for reliable performance across a wide range of operating conditions:

• Speed Capability: Rated for operation below 4000 RPM for most configurations

• Quality Certifications: Manufactured under BV, ISO9001, and RoHS certified processes

• Extensive Inventory: A large selection of SKUs available for quick delivery

• Custom Engineering: Full OEM, ODM, and OBM support for specialized requirements

Installation and Stroke Calculation

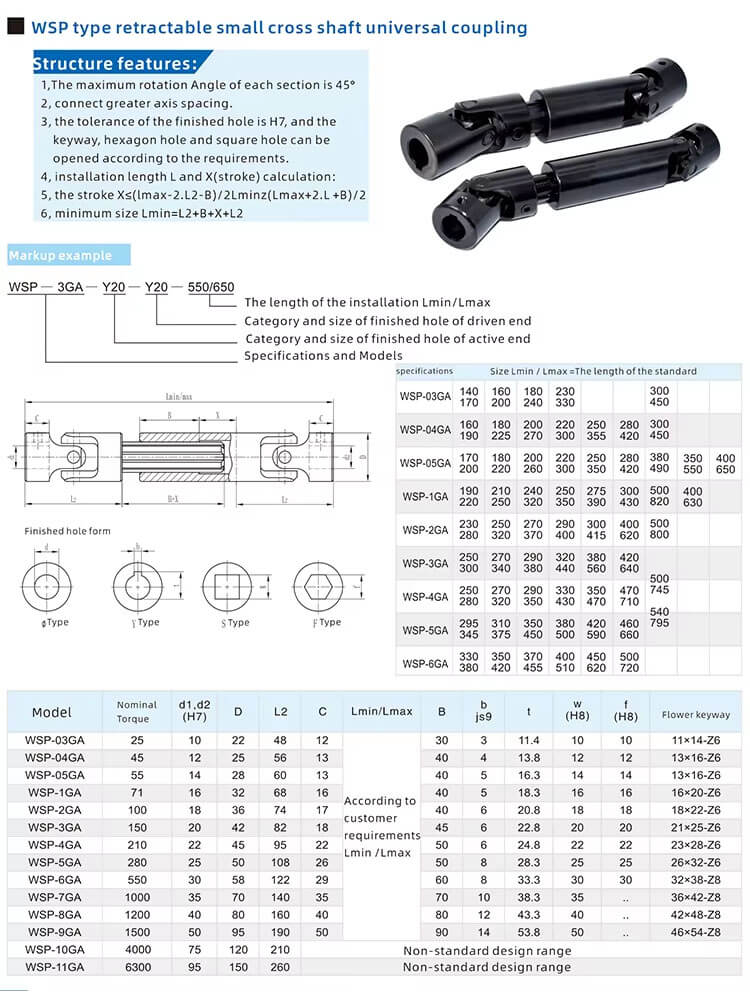

Proper installation of universal expansion joints requires careful consideration of operating parameters. The stroke (X) and minimum installation length (Lmin) can be calculated using the following formulas:

• Stroke X ≤ (Lmax – 2 × L2 – B) / 2

• Minimum size Lmin = L2 + B + X + L2

Our engineering team is available to assist with these calculations to ensure optimal performance in your specific application.

Ideal Applications Across Industries

The versatility of these universal expansion joints makes them indispensable in numerous sectors:

• Construction Machinery: Excavators, loaders, and cranes requiring both angular and axial compensation

• Agricultural Equipment: Tractors and implements with variable hitch positions

• Industrial Drives: Conveyor systems, packaging lines, and material handling equipment

• Energy & Mining: Heavy-duty applications requiring reliable power transmission in demanding environments

• Specialized Machinery: Equipment with moving components that alter shaft spacing during operation

Quality Assurance and Customization

Every universal expansion joint from Apex Coupling is backed by our 1-year warranty and commitment to quality. We maintain a large inventory of standard sizes while offering complete customization to meet your specific requirements, with a Minimum Order Quantity (MOQ) of just 1 piece.

Choose Apex Coupling for Your Power Transmission Needs

With our extensive experience in manufacturing flexible couplings and universal joints, Apex Coupling delivers universal expansion joints that meet the highest standards of quality and reliability. Our components are designed to provide years of trouble-free service in the most demanding applications.

Ready to Specify Universal Expansion Joints for Your Application? Contact our engineering team today with your shaft sizes, operating angles, and stroke requirements. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium WSP series universal expansion joints.
