UNCA/UNCW Series Small Universal Joint - Single & Double Joint Compact Shaft Connector
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Feature | Description |
|---|---|
| High Angular Flexibility | Maximum 45° rotation angle per section (30° recommended working angle) |
| Compact Design | Space-saving construction ideal for factory automation applications |
| High-Speed Capability | Needle roller bearing structure supports up to 4000 RPM operation |
| Precision Engineering | Close tolerance manufacturing with minimal backlash |
| Quick Locking Mechanism | H7 finished bore with standard keyway or hexagonal bore options |
| Bidirectional Operation | Smooth clockwise and counterclockwise rotation with high efficiency |
| Long Service Life | Durable construction ensures extended performance with low noise |
Product Details
| Specification | Details |
|---|---|
| Product Name | UNCA/UNCW Series Universal Joint |
| Models | UNCA (Single Joint), UNCW (Double Joint) |
| Maximum Speed | 4000 RPM (needle roller bearing type) |
| Maximum Angle | 45° per section (30° recommended) |
| Material | Standard 40Cr High Carbon Steel (304/316 Stainless Steel available) |
| Surface Treatment | Polishing, Blackening, Chrome/Nickel Plating, Sand Blasting |
| Bore Tolerance | H7 finished bore standard |
| Bore Options | Standard keyway or hexagonal bore |
| Locking Mechanism | Quick-lock design for easy installation |
| Customization | Non-standard configurations available |
Product Applications
| Industry | Specific Applications |
|---|---|
| Factory Automation | Robotic arms, automated assembly systems |
| Packaging Machinery | Filling machines, sealing equipment, labeling systems |
| Woodworking Equipment | CNC routers, saws, wood processing machinery |
| Multi-spindle Drilling | Multiple spindle drilling machines |
| Metallurgical Machinery | Metal processing and forming equipment |
| Special Transmission | Custom applications requiring angular flexibility |
Additional Information
Stock Availability: Large inventory of standard models
Technical Support: Comprehensive engineering consultation available
Documentation: Complete paper and electronic selection catalogs
Custom Solutions: Special materials and configurations upon request
Production Capacity: Bulk orders welcome with competitive pricing

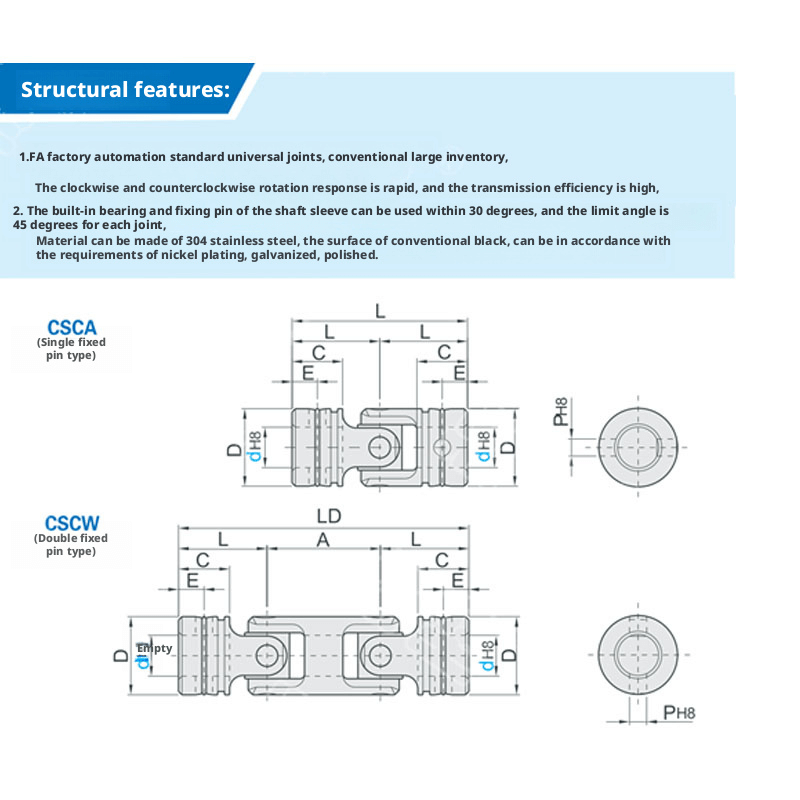

Product Show
UNCA single joint price
