UL Series Tyre Coupling - High Flexibility Rubber & Carbon Steel Flexible Coupling for Heavy-Duty Applications
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Specification Model | Shaft Hole Diameter D1 (mm) | Shaft Hole Diameter D2 (mm) | Outer Diameter (mm) | Total Length (mm) |
|---|---|---|---|---|
| U Type | 115 | 3 | 13 | 10 |
| IIa Type | 125 | 4 | 15 | 150 |
| IIIb Type | 3 | 5 | 16 | 18 |
| Specification | Details |
|---|---|
| Product Name | UL Series Tyre Coupling |
| Model | UL |
| Material | 45# Carbon Steel (Body) / High-Grade Rubber (Tyre Element) |
| Surface Treatment | Phosphating Blackening / Spray Coating |
| Allowable Torque | 23,423 N.m |
| Maximum Speed | 2,800 RPM |
| Allowable Misalignment | Angular: 1°; Parallel: 2 mm |
| Key Features | High torque transmission, easy installation/disassembly, high load capacity, compact radial size |
| Color | Black |
| Customization | Available (OEM/ODM Support) |
Â
Product Applications
| Industry | Specific Applications |
|---|---|
| Metallurgical Equipment | Rolling mills, continuous casting machines, steel processing lines |
| Mining Machinery | Crushers, conveyors, hoists, drilling rigs |
| Transportation Equipment | Heavy-duty vehicle drivetrains, conveyor systems, material handling |
| General Heavy Industry | Pumps, fans, compressors, and other high-vibration machinery |
| Construction Machinery | Mixers, cranes, and other equipment requiring shock absorption |
Product Show

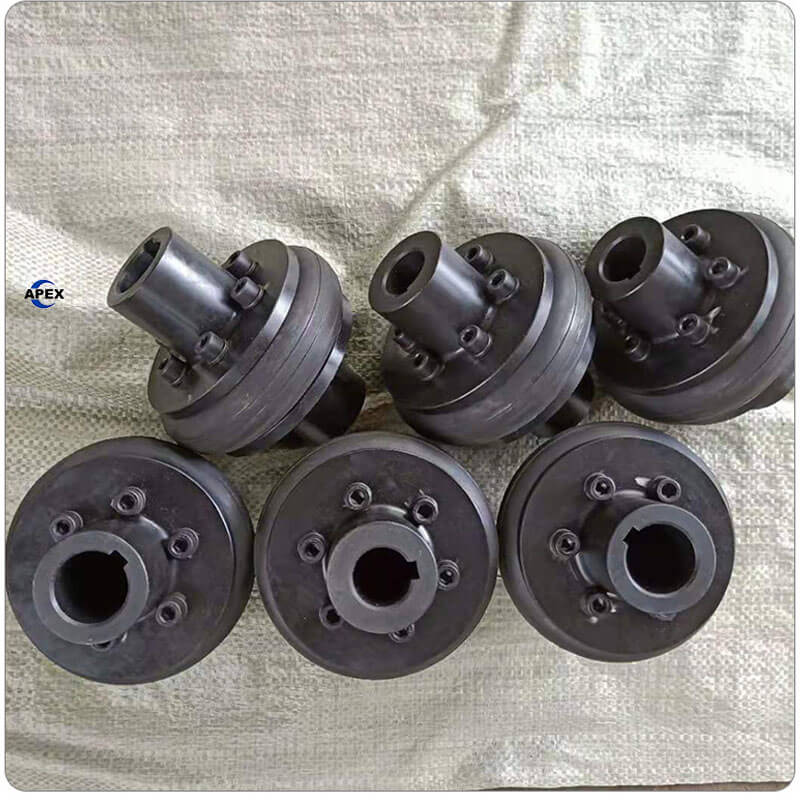

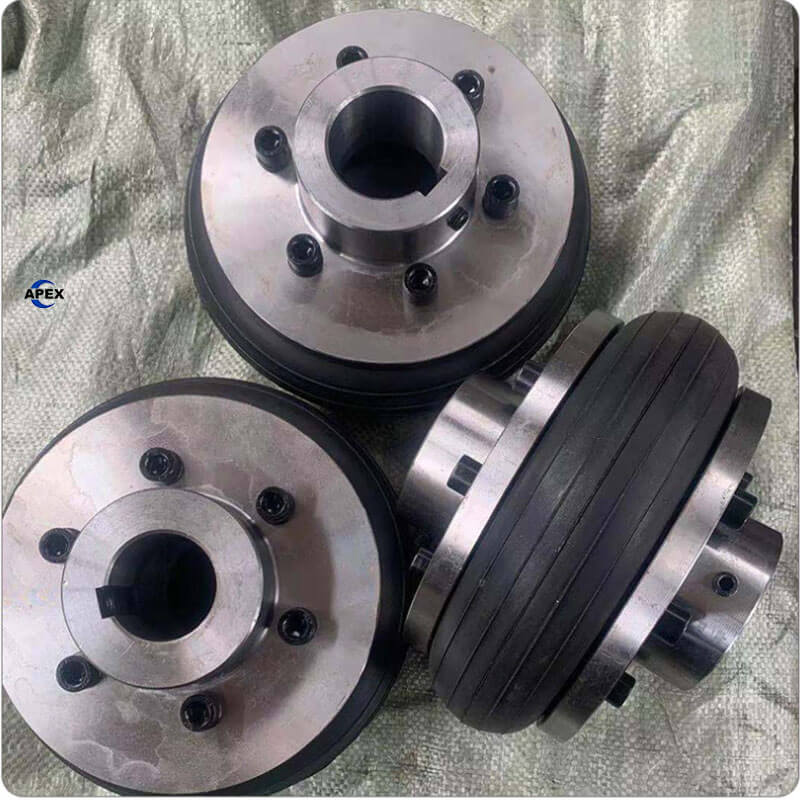

Rubber carbon steel UL type tire coupling for mechanical transmission parts of metallurgical equipment, tire coupling made by the manufacturer.
