Engineered Precision U Joint Couplings for Superior Angular Power Transmission

In the complex world of mechanical power transmission, finding reliable components that can efficiently connect misaligned shafts is paramount. This is where our professional-grade U joint couplings come into play. Apexcoupling, a leading manufacturer based in Guangdong, China, specializes in producing high-precision U joint couplings designed to meet the rigorous demands of various industrial applications. Our WS and WSD series U joint couplings, manufactured according to the JB/T5901 standard, represent the pinnacle of durability, flexibility, and performance. These robust U joint couplings are engineered to transmit torque smoothly between shafts positioned at significant angles, ensuring minimal power loss and maximum operational efficiency.

The core of our U joint couplings is their construction from premium 42CrMo alloy steel, which undergoes precise heat treatment to achieve an exceptional hardness range of HRC 48-52. This material choice, combined with bearing pins hardened to HRC 56-58, ensures that our U joint couplings can handle high torque loads—from 11.2 N.m to 1120 N.m—while resisting wear and fatigue over extended periods. A key feature of these U joint couplings is their impressive angular compensation capability. Each joint within our U joint couplings allows for a maximum articulation of 45 degrees, with a recommended continuous working angle of 30 degrees or less to ensure optimal longevity and performance. This flexibility makes our U joint couplings ideal for applications where shaft alignment is not perfect or where the angle needs to adjust during operation. We offer two primary configurations of these U joint couplings: the WS model, which features a double-joint design for greater flexibility, and the WSD model, a single-joint version for simpler applications.

Advanced Design and Performance Features of Our U Joint Couplings

Our commitment to quality is evident in every detail of our U joint couplings. The bores are machined to a precise H7 tolerance, guaranteeing a perfect fit on the shaft and minimizing radial play. This precision machining results in U joint couplings with very small internal clearances, which translates to smoother operation, reduced vibration, and lower noise levels—critical factors in precision machinery. We provide two internal bearing options for our U joint couplings: a durable pin-and-block structure rated for speeds up to 1000 RPM, and a high-performance needle bearing version capable of reaching 4000 RPM. For optimal service life, we recommend operating these U joint couplings at or below 50% of their maximum rated speed. The connection hubs on our U joint couplings are supplied with standard keyways and set screws for secure mounting, but we offer full customization, including hexagonal or square bores, to meet any OEM requirement. Furthermore, these U joint couplings can be finished with various surface treatments—including blackening, chrome or nickel plating, and sandblasting—to enhance corrosion resistance and suit specific environmental conditions.

Why Choose Apexcoupling for Your U Joint Couplings?

Selecting the right U joint couplings supplier is crucial for your project’s success. Here’s why Apexcoupling stands out:

• Direct Factory Expertise: We control the entire manufacturing process of our U joint couplings, from material sourcing to final inspection, ensuring consistent quality and competitive pricing.

• Unmatched Customization: Our U joint couplings are not off-the-shelf items. We excel at OEM, ODM, and OBM projects, tailoring dimensions, materials (including 304/316 stainless steel), torque ratings, and finishes to your exact blueprints.

• Rigorous Quality Assurance: Every batch of our U joint couplings is subjected to stringent quality checks. The use of high-precision CNC machinery ensures that each component of our U joint couplings meets the specified tolerances for a perfect assembly.

• Proven Application Knowledge: Our engineers understand how U joint couplings perform in real-world scenarios, from the high-speed demands of packaging lines to the heavy shock loads in metallurgical equipment. We provide expert technical support to help you select and integrate the perfect U joint couplings.

Technical Specifications of WS/WSD U Joint Couplings

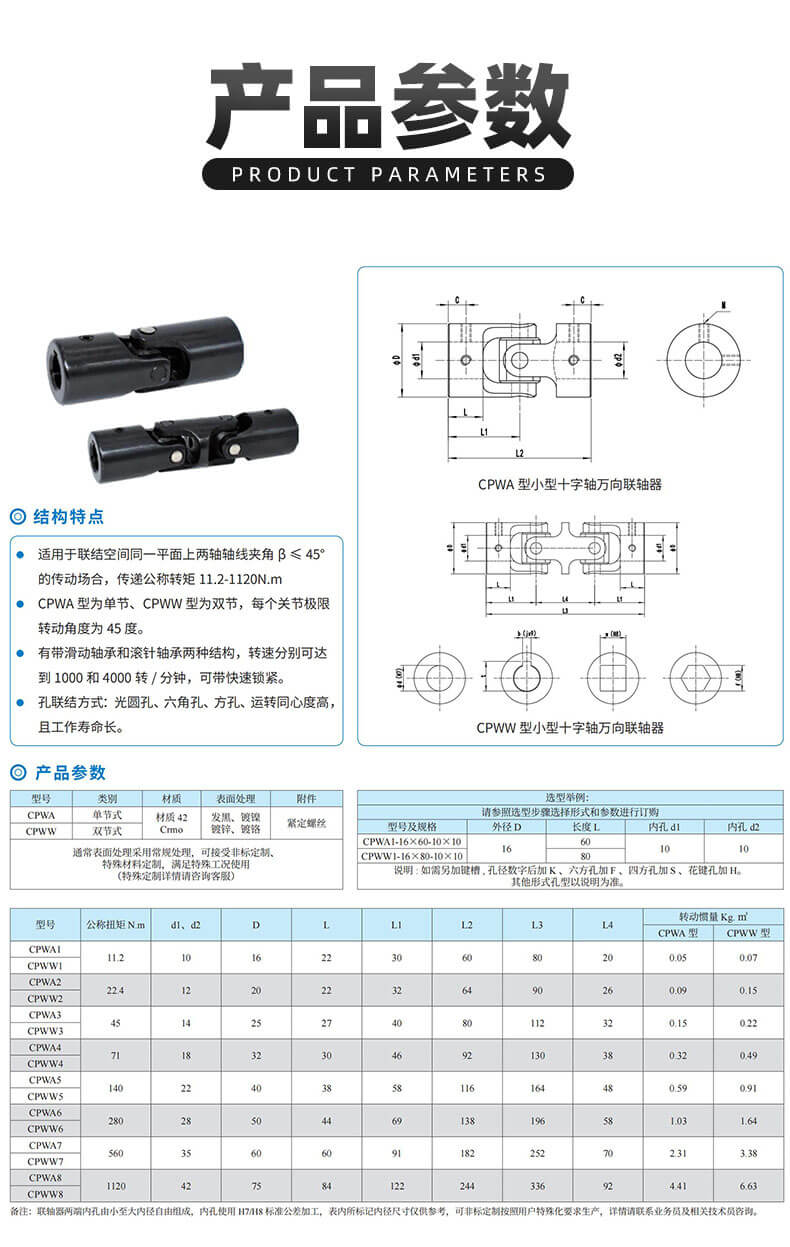

The following table outlines the key parameters of our standard U joint couplings series. Please note that all values are customizable to meet specific application needs.

Diverse Industrial Applications for U Joint Couplings

The versatility of our U joint couplings makes them indispensable across a wide range of industries:

• Packaging Machinery: For driving adjustable filler heads, conveyor sections, and robotic arms where space is constrained and angles vary.

• Machine Tools & CNC Equipment: In multi-spindle drilling heads, milling machine attachments, and tool changers requiring precise angular motion.

• Woodworking & Textile Machinery: Providing flexible drives to saw blades, sanding heads, and loom mechanisms.

• Metallurgical & Heavy Equipment: Where robust U joint couplings are needed to transmit power to rolls, manipulators, and other auxiliaries despite harsh conditions and misalignment.

• General Automation: Any system requiring a reliable, high-angle power transmission link will benefit from our engineered U joint couplings.

Your Strategic Partner for Custom U Joint Coupling Solutions

Apexcoupling is more than just a supplier; we are your engineering partner. With substantial semi-finished inventory, we can respond quickly to both standard orders and complex custom projects for U joint couplings. Our team is committed to providing comprehensive support, from initial concept and CAD modeling to prototyping and volume production. We understand that your machinery is unique, and we are equipped to deliver U joint couplings that are uniquely suited to perform in your specific application.

Ready to Specify Your U Joint Couplings?

Don’t let angular misalignment compromise your machine’s performance. Contact Apexcoupling today to discuss your project. Provide us with your requirements for torque, speed, operating angles, shaft sizes, and environmental conditions. Our engineering team will recommend the optimal WS or WSD series U joint couplings configuration and provide a detailed, competitive quotation promptly.

To explore our complete catalog of coupling solutions and learn more about our custom manufacturing capabilities, visit our official website: www.apexcoupling.com. Let us connect you to superior performance with our precision-engineered U joint couplings.
