TL Type Elastic Sleeve Pin Coupling lock coupler

Model Number
T Type, LTT Type / TL Type

Product Description

Category	Specifications / Details
1. Product Overview
Product Title	Supply of Round Hole with Key Connection TL Type Elastic Sleeve Pin Coupling
General Product Name	Elastic Sleeve Pin Coupling, Flexible Coupling
Brand	Apexcoupling
Product Number	Elastic Sleeve Pin Coupling
Model	T Type, LTT Type / TL Type
Coupler Type	Flexible Coupling
2. Specifications & Parameters
Overall Dimensions	315 mm
Nominal Torque	2000 N·m
Allowable Speed	2300 r/min
Specification Table (Example Models)	Shaft Bore D1 (mm)	Shaft Bore D2 (mm)	Outer Diameter (mm)	Overall Length (mm)
Model A	85	38	104	59.5
Model B	85	24	126	25-160
3. Product Attributes
Feature	High Torsional Stiffness
Maximum Speed	2300 rpm
Allowable Torque	120000 (units assumed as N·m)
Allowable Eccentricity	2
Allowable Deviation	Eccentric
Allowable Angular Misalignment	2
Application	General Purpose Motor
Color	Black
Material	40Cr
Surface Treatment	None
Shaft Locking Method	Round Hole with Key Connection
Diaphragm	Single Diaphragm
Adjustment Ring Material	Nylon
Number of Sections	Single Section
Mounting Hole Type	Round Hole Type
Inner Bore	85 mm

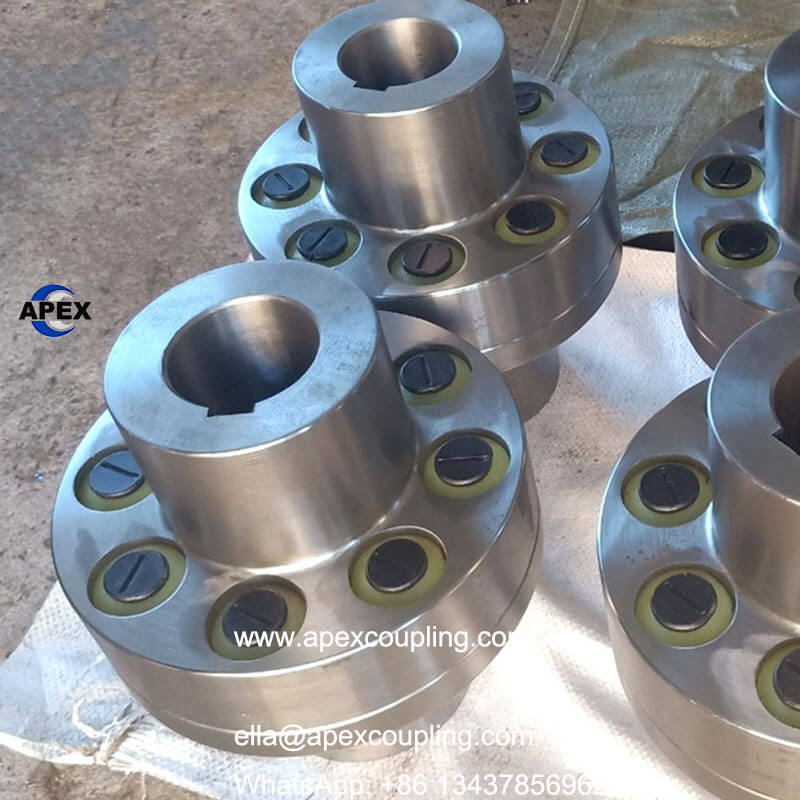

Product Show

Supply of Round Hole with Key Connection TL Type Elastic Sleeve Pin Coupling, 315mm Coupling, Flexible Coupling
