Tire Shaft Coupling: The High-Cushioning Solution for Demanding Power Transmission Applications

In the world of heavy industrial power transmission, the tire shaft coupling stands as a proven solution for applications requiring exceptional vibration damping, shock absorption, and misalignment compensation. Also known as a flexible tire coupling or rubber tire coupling, this design utilizes a robust rubber element to provide superior cushioning while transmitting high torque loads. The F series tire shaft coupling from Apex Coupling represents the pinnacle of this technology, combining precision-machined 45# steel hubs with high-quality rubber elements to deliver exceptional performance in metallurgical equipment, heavy machinery, and demanding industrial applications.

Superior Materials for Uncompromising Performance

What sets our tire shaft coupling apart is the meticulous attention to material quality and engineering:

• 45# Steel Hubs: The coupling hubs are precision-machined from high-strength 45# steel, a material chosen for its excellent strength, good plasticity, outstanding wear resistance, and wide application range. This robust construction ensures the tire shaft coupling can withstand heavy loads and demanding operating conditions.

• Premium Rubber Element: The heart of this tire shaft coupling is its high-quality rubber tire component, manufactured from specialized rubber compounds designed for optimal performance. This elastomeric element offers:

  • Excellent elasticity and flexibility for effective vibration absorption

  • Superior shock load damping to protect connected equipment

  • Fire resistance and anti-static properties for safety in hazardous environments

  • Enhanced heat resistance for extended service life

  • Excellent oil resistance for reliability in industrial settings

• Wide Operating Temperature Range: The rubber element maintains its performance characteristics in temperatures from -50°C to +50°C, ensuring reliable operation in diverse environmental conditions.

Precision Engineering for Optimal Performance

Every tire shaft coupling from Apex Coupling is manufactured to exacting standards:

• High Torque Capacity: The F series tire shaft coupling is engineered with outstanding load capacity, capable of handling high torque and radial loads while ensuring stable and reliable power transmission.

• Keyway Design: Standard keyway configuration provides positive torque transmission without slippage, ensuring reliable operation even under heavy loads and reversing conditions.

• Screw Clamping Fastening: Secure shaft attachment with screw clamping method ensures reliable torque transmission without marring the shaft surface.

• Quick Installation: The design allows for easy assembly and disassembly, simplifying maintenance and reducing downtime.

Key Advantages of Tire Shaft Coupling Design

The tire shaft coupling offers numerous benefits for heavy-duty power transmission:

• Superior Vibration Damping: The rubber tire element effectively absorbs vibrations and shock loads, protecting sensitive equipment and extending service life.

• Misalignment Compensation: Accommodates angular, parallel, and axial misalignment, simplifying installation and reducing stress on bearings.

• Maintenance-Free Operation: No lubrication required, reducing maintenance costs and downtime.

• High Load Capacity: Engineered to handle high torque and radial loads for demanding applications.

• Shock Absorption: Protects connected equipment from sudden impact loads and torque spikes.

• Fire and Static Resistance: Special rubber compounds offer fire resistance and anti-static properties for safety in hazardous environments.

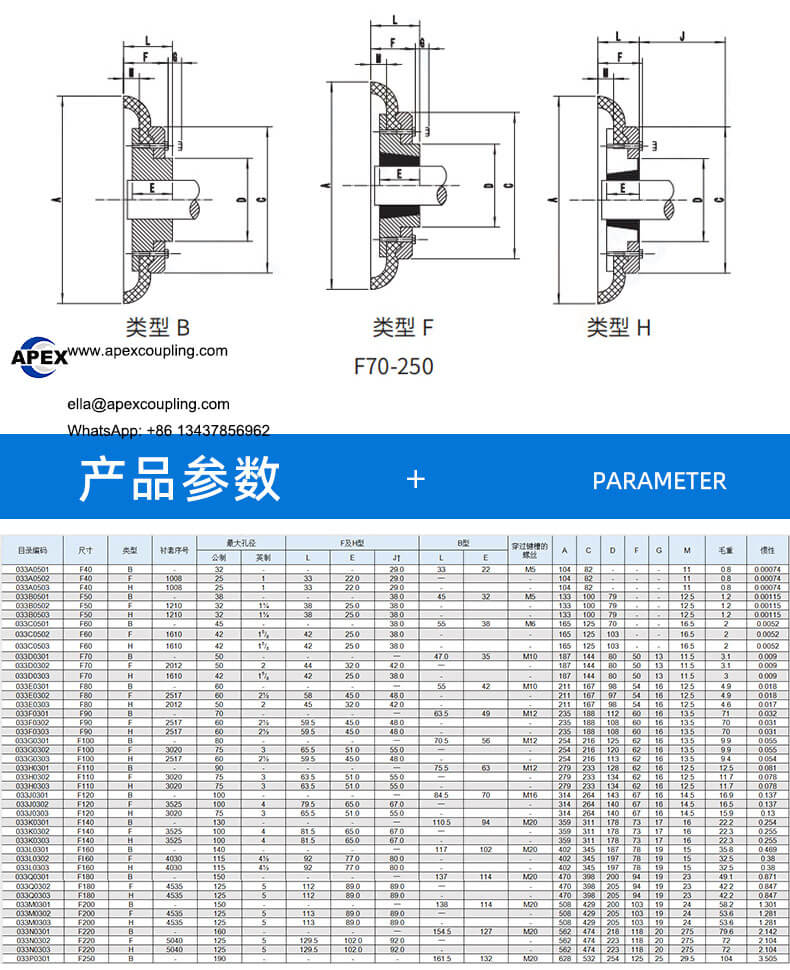

Technical Specifications

• Hub Material: High-strength 45# steel

• Rubber Element: Premium rubber with fire resistance and anti-static properties

• Operating Temperature: -50°C to +50°C

• Fastening Method: Screw clamping type with keyway

• Application: Metallurgical equipment, heavy machinery, industrial drives

• Design Features: High cushioning, excellent elasticity, outstanding load capacity

Ideal Applications Across Industries

The F series tire shaft coupling is specifically engineered for demanding applications:

• Metallurgical Equipment: Rolling mills, continuous casting machines, and material handling systems requiring reliable power transmission with vibration damping.

• Mining Machinery: Crushers, conveyors, and screening equipment operating in harsh environments.

• Industrial Drives: Pumps, compressors, fans, and blowers requiring smooth power transmission.

• Heavy Machinery: Construction equipment and industrial machines subject to shock loads.

• Material Handling: Conveyors, elevators, and lifting equipment.

Quality Assurance and Customization

Every tire shaft coupling from Apex Coupling is manufactured under strict quality control:

• Material Quality: Premium 45# steel and specialized rubber compounds ensure long-term reliability.

• Precision Manufacturing: CNC machining for consistent quality and accurate fit.

• Customization: OEM, ODM, and OBM support for specialized requirements including custom bores, keyways, and configurations.

• Factory Direct: Competitive pricing with quality assurance.

Why Choose Apex Coupling for Your Tire Shaft Coupling Needs?

• Premium Materials: 45# steel hubs and high-quality rubber elements ensure long-term reliability.

• Superior Cushioning: Excellent vibration damping and shock absorption for demanding applications.

• High Load Capacity: Engineered for high torque and radial loads.

• Wide Temperature Range: Reliable operation from -50°C to +50°C.

• Factory Direct: Competitive pricing with extensive customization options.

• Technical Support: Engineering assistance for selection and application.

Ready to Order Your Tire Shaft Coupling?

Contact our engineering team today with your application requirements, torque specifications, and dimensional constraints. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium tire shaft couplings. Experience the Apex difference in quality, precision, and service.
