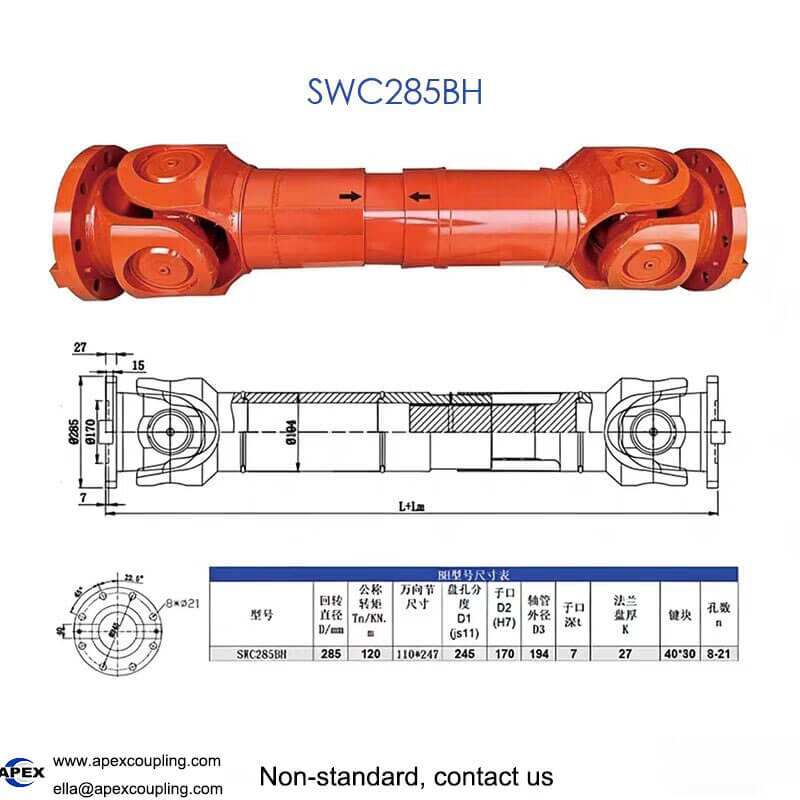

SWC285BH Heavy-Duty Telescopic Flange Cardan Shaft | Large-Diameter Industrial Universal Joint Shaft

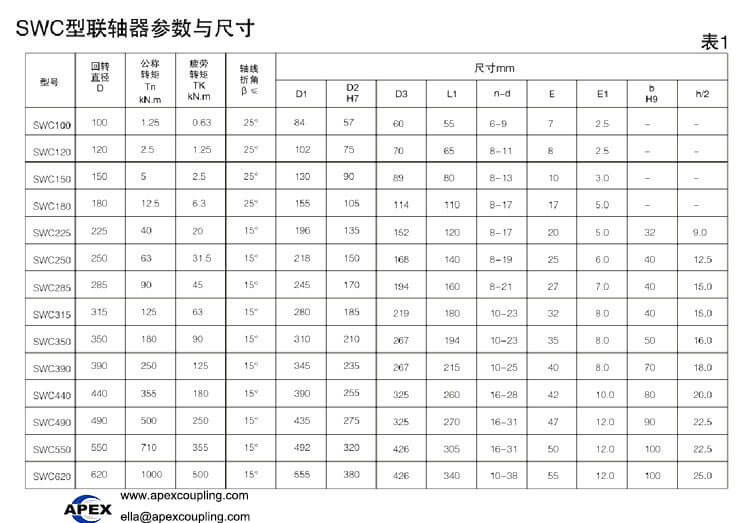

Model Number
Check below, custom
| Type | Model | Note |
|---|---|---|
| Disc (圆盘) | SWC285 | Dimensions to be confirmed with customer service |
| Disc (圆盘) | SWC315 | Dimensions to be confirmed with customer service |
| Disc (圆盘) | SWC350 | Dimensions to be confirmed with customer service |
| Disc (圆盘) | SWC390 | Dimensions to be confirmed with customer service |
| Disc (圆盘) | SWC440 | Dimensions to be confirmed with customer service |
| End‑face tooth (端面齿型) | SWC250 | Dimensions to be confirmed with customer service |
| End‑face tooth (端面齿型) | SWC315 | Dimensions to be confirmed with customer service |
| End‑face tooth (端面齿型) | SWC350 | Dimensions to be confirmed with customer service |
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com

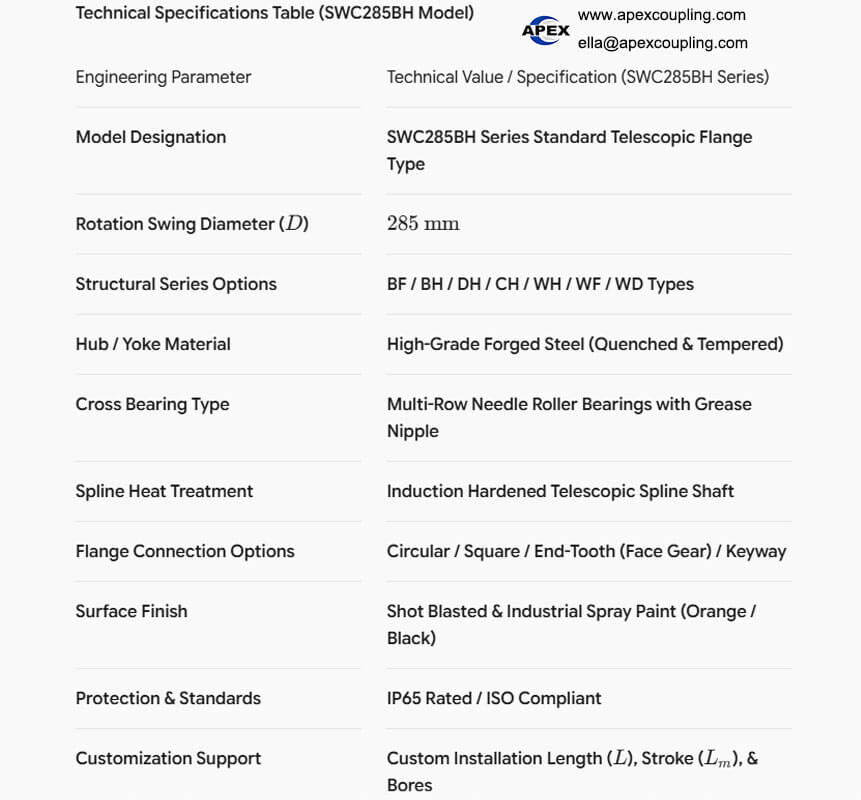

Product Description
High-Torque & Heavy Industrial Power Transmission: SWC285BH Standard Telescopic Flange Cardan Shaft
The Apexcoupling SWC285BH Heavy-Duty Telescopic Cardan Universal Joint Shaft is engineered for high-torque mechanical drivelines in heavy industrial applications, including metal rolling mills, continuous casting machinery, paper mill drives, heavy cranes, and large industrial pumps. Manufactured from high-strength forged steel with induction-hardened splined shafts and heavy-duty multi-row needle roller cross journal assemblies, the SWC285BH provides stable rotational power transmission under extreme shock loads and large angular misalignments.
Featuring a swing diameter (D) of 285 mm and standard telescopic expansion capability, this heavy cardan shaft absorbs significant axial distance displacement while maintaining smooth dynamic torque transfer. The cross spider assemblies feature integrated grease lubrication ports for straightforward ongoing maintenance. Available in custom flange profiles—including round flanges, square flanges, face-key, and face-gear (end-tooth) designs—the SWC285BH delivers maximum fatigue resistance and reliable operation in demanding processing environments.
Core Product Advantages & Features
Ultra-High Torque Capacity: Engineered with a 285 mm rotation swing diameter and heavy-wall seamless tubing to handle heavy continuous torque loads and dynamic reversing shocks.
Multi-Row Needle Roller Cross Journal Assembly: High-load cross spiders incorporate multi-row needle bearings with grease lubrication ports for reduced wear and long service intervals.
Forged Steel Structural Build: Blanks undergo full quenching and tempering, with spline shafts induction-hardened for superior torsional strength and resistance to fatigue.

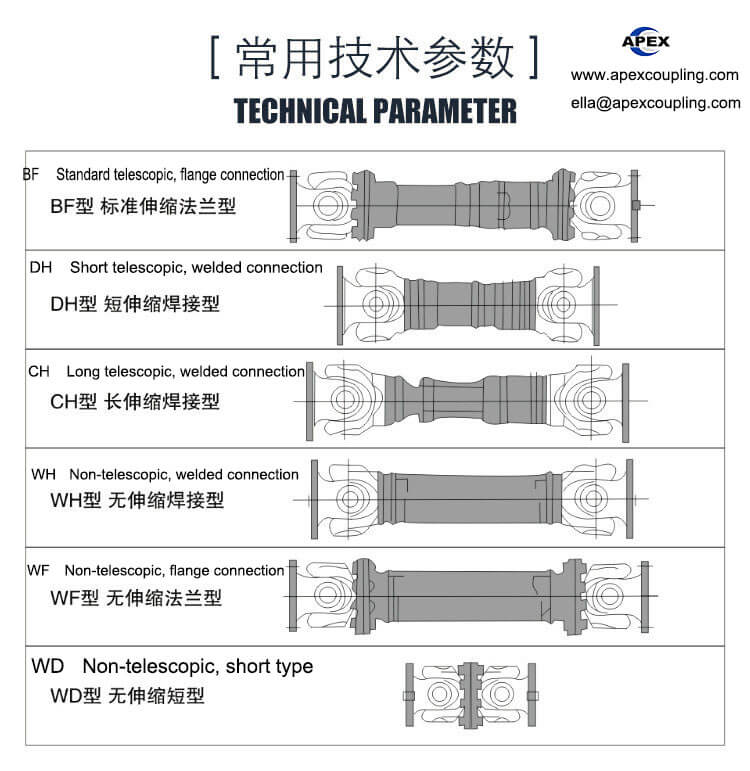

Flexible Flange Interface Options: Custom round, square, serrated end-tooth, and keyway flange connections built to customer engineering drawings.
Telescopic Spline Expansion: Smooth axial sliding stroke compensates for dynamic thermal growth and distance variations between motor and equipment.
Industrial Anti-Corrosion Spray Coating: Passivated and spray-painted (standard Safety Orange or Matte Black) for protection against moisture, oil, and aggressive mill environments.
SWC285BH cardan shaft, heavy duty universal joint shaft, SWC285 telescopic cardan coupling, industrial flange cardan shaft, steel mill drive shaft, large diameter universal coupling.
Product Show

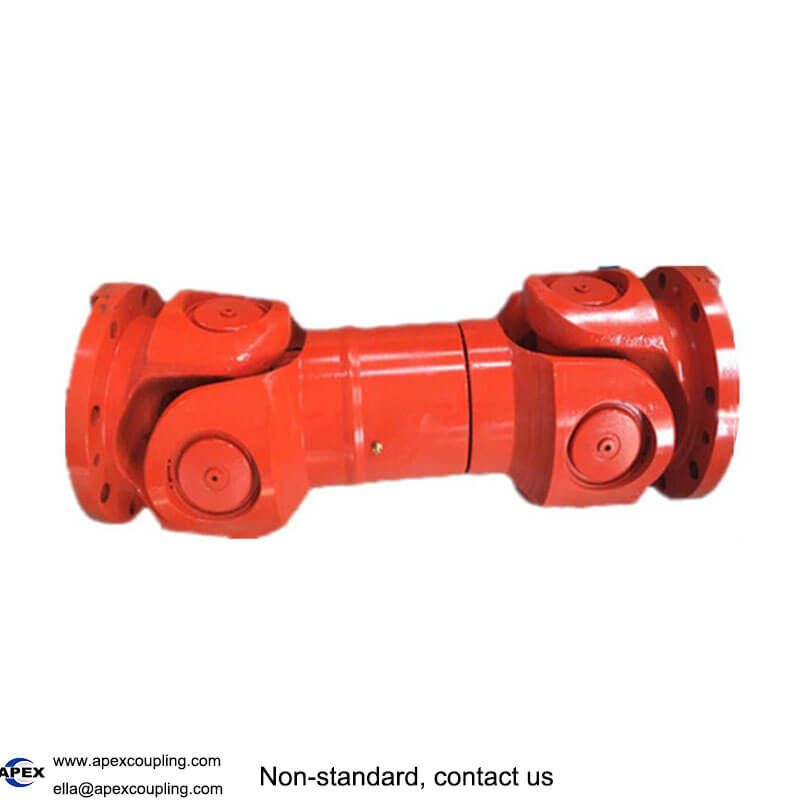

SWC285BH cardan shaft
